Price: | US $ 7000-7800/Set |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Set |
Pay Type: | L/C,D/P |
Item | Configuration |

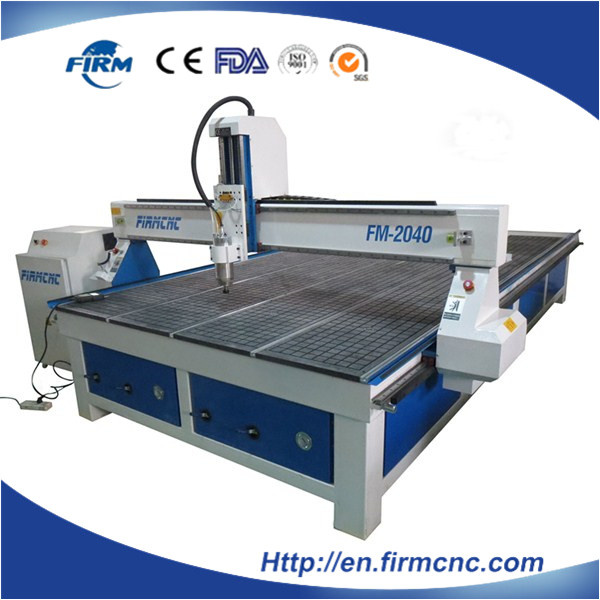

FM2040 | CNC Router FM-2040: u Working Area 2000*4000*300mm u 3KW CS Water cooling Spindle u Chinese Fuling Inverter u Big power 118 stepper Drivers u Leadshine drivers u 20 Hiwin Square rails for XYZ axis u DSP Control system u Welded steel tube structure u X,Y axis with helical rack and pinion transmission, and Z axis with Taiwan TBI ball screw u Vacuum and T-slot combined table u Automatic lubrication u France Schneider contactor and leakage protector u Tool sensor |
Number | Description | Parameter |
1 | X,Y,Z Working Area: | 2000mmx4000mmx200mm |
2 | Table Size: | 2100mm×4400mm |
3 | X,Y,Z Traveling Positioning Accuracy: | ±0.03/300 |
4 | X,Y,Z Rpositioning Accuracy: | ±0.03mm |
5 | Table Surface: | Vacuum and T-slot combined (Option: T-slot table) |
6 | Frame: | Welded structure |
7 | X, Y Structure: | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 | Z Structure: | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption: | 4.5Kw (Without spindle) |
10 | Max. Rapid Travel Rate: | 40000mm/min |
11 | Max. Working Speed: | 25000mm/min |
12 | Spindle Power: | 3.0/4.5/6/7KW |
13 | Spindle Speed: | 0-18000RPM |
14 | Drive Motors: | Yaskawa servo system |
15 | Working Voltage: | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language: | G code |
17 | Operating System: | Syntech control System(options: DSP/Ncstudio/Mach3 PC Software) |
18 | Computer Interface: | Ethernet |
19 | Flash Memory: | 256M |
20 | Collet: | ER25 |
21 | X,Y Resolution | <0.03mm |
22 | Software Compatibility: | Type3 software, (Option: Artcam software) |
23 | Running Environment Temperature: | 0degree - 45 degree |
24 | Relative Humidity: | 30% - 75% |
25 | Packing Size: | 2300X4800X1900mm |
26 | N.W.: | 2750KG |
27 | G.W.: | 3100KG |
28 | Guarantee | One year from the date of commission |
29 | Optional Parts | Air cooling spindle or Water cooling spindle |
Dust collector | ||
Rotary system | ||
Mist-cooling system | ||
Panasonic Servo motors/Delta servo motors |
Q1: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Q2: How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Q3: Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q4: How about Guarantee & After Sales Service?
1) The machine guarantee is 12 months.
2) 24 hours technical support by phone, email or msn, skype etc.
Q5: If some problems happened to this machine during warranty period,what should i do?
We will supply free parts in machine warranty period if machine have some problem.While we also supply free after-service forever, so any doubts,just let us know, we will give you solutions in 24 hours.
Q6: What is the MOQ?
MOQ for our products is 1 set machine,we could send it to your country port if you tell detail information about your country port.
Welcome contact us if you need the high quality machine, best price and the reassuring after sale service.
International Sales Department
Miss Betty Ma
Jinan Firm CNC Equipment Co., Ltd
Add: Jingliu Road, Huaiyin District, Jinan City, Shandong Provice, China.
TEL: 0086-0531-69986330
FAX: 0086-0531-69986330
Mobile:0086-15863131658
Prod Model: | FM2040 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Machine Name: | FM2040 CNC Machinery |
Table Size(Mm): | 2000*4000 |
Engraving Area: | 2000*4000*200 |
Spindle Power: | 3.0kw Water Cooling Spindle |
Control System: | DSP |
Software: | Artcam |
Motor: | Stepper Motor |
Drive: | Taida Inverter |
Transmission: | Ball Screw and Rack |
Rail: | Taiwan Hiwin Square Rail |
Controlling Mode: | CNC |
Feed Mode: | Manual |
Spindle Number: | Single-Spindle |
Spindle Layout: | Spindle Over |
Certification: | SGS |
