Product Specifications
| Prod Model: |
SBC20120726 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

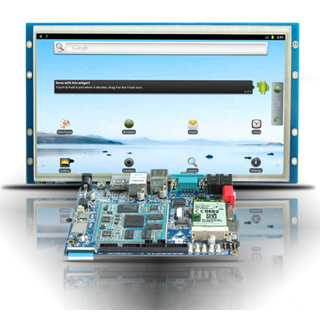

EM210 SBC is designed to be easily modified to best fit a wide variety of requirements. The SBC accommodates rich I/O interfaces in a compact system size, including UART, OTG, HOST, HDMI and JTAG, offering versatile connection to a wide range of applications, such as GPS, WiFi and 3G. EM210 SBC is designed specifically for multimedia advertising, GPS systems, high performance POS machine, and surveillance applications, says Boardcon.
The S5PV210 SoC resides on a soldered CM210-III COM that also provides 512MB of DDR2 RAM and 4GB eMMC flash with pre-installed Android4.0 / Linux2.6.32 / WinCE6.0. The 59.9 X 61.55mm COM expresses its I/O via stamp Holes, totaling 230 pins.
Except 4.3-, 7- and 10.1-inch resistive or capacitive touchscreens, the SBC is notable for offering 15inch SAW LCD to meet the requirements of different embedded applications.
Specifications listed for the EM210 include:
* Processor _Samsung ARM Cortex-A8 S5PV210AH @ up to 1GHz
* Memory:
512MB DDR2 RAM
1GB soldered SLC NAND flash, 4GB eMMC iNAND optional
Storage expansion _ MicroSD slot
* Display:
HDMI 1.4 port at up to 1080P, 30fps
24-bit RGB parallel LCD interface
Optional 4.3-, 7-, or 10.1-inch resistive or capacitive touchscreen, 15-inch SAW touchscreen
* Wireless _3G SIM card slot; Optional soldered WiFi, GPS modules; Optional removable 3G (WCDMA) module
* Networking _ 10/100 Ethernet port
* Camera _ 20-pin camera interface, optional 3.1 Megapixel CMOS Camera module
* Other I/O: 2X USB host port; USB OTG port; RS-232 interface (on DB9); 2X RS-485/232 ports (on RJ11); JTAG (on 10-pin header); Speaker (on 2-pin header); 6*7 keypad interface; GPIO (on 30-pin header); Audio I/O
* Other features: Watchdog; RTC with battery
* Power supply _ 5V DC
* Dimensions _108 X 141mm (core board: 60 X 60 mm)
* Operating system _Linux2.6.32; WinCE6.0(R3); Android4.0. 3
Boardcon Embedded Design established in 2008, is an Original Design Manufacturer dedicated to providing high quality ARM core based industrial Computer-on-Module, Single Board Computer and Evaluation board, Boardcon engineer has been developing embedded computing solutions for the OEM market over 8 years. The services are hardware design, driver development, BSP porting and BSP development. On the operating system side Boardcon specializes in Windows CE and embedded Linux. Our commitment to excellent products, low prices and exceptional customer support has encouraged our business to flourish in a very competitive marketplace. We offer a wide variety of ARM based SBCs, computer -on-module and peripherals that satisfy most embedded project requirements.
Our engineers are also enthusiastic about new projects and take pride in new designs that are on the cutting edge of the embedded marketplace. Custom designs are a large part of our business and, with our experience team of embedded engineers, we can provide our client a custom solution at a price that competes with an in-house design.
