Product Specifications
| Prod Model: |
LC-UV4000S2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
LC, China |
| Movement Way: |
Fixed |
| Heating Mode: |
Radioactive |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
| Structure: |
UV Tunnel |
Product Description

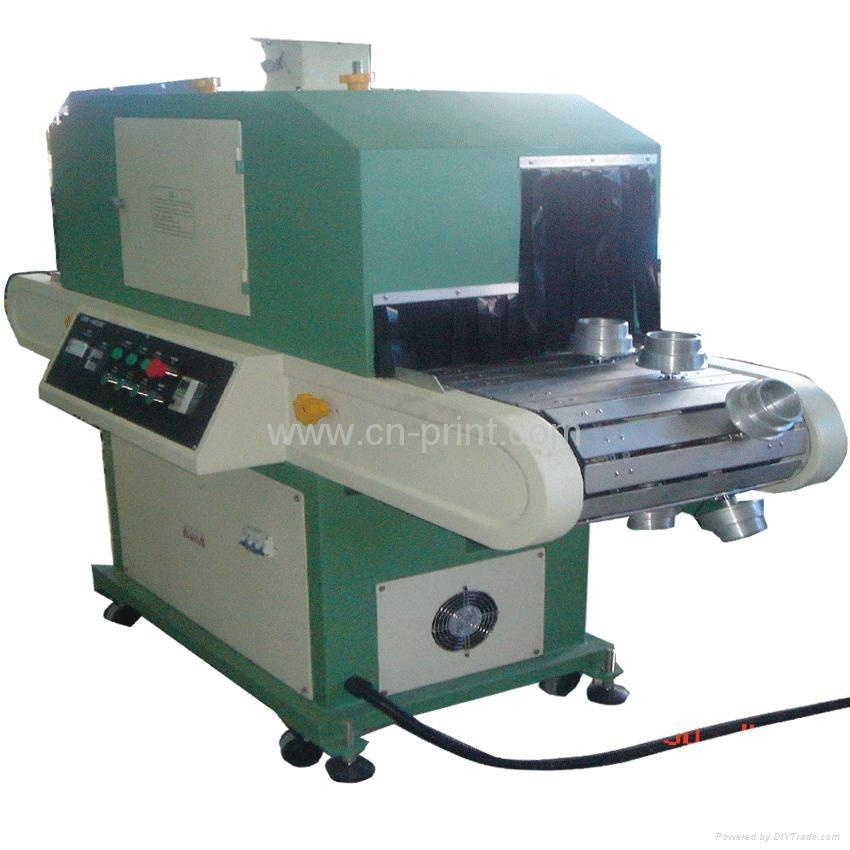

LC-4000UVS2 UV Curing machine is mainly used for the curing of printed UV ink on various surfaces such as bottles and cylindrical articles. By adjusting its lighting angle, it can also be used in the UV Ink printing cure of flat substrate, Stainless steel conveyer to resist High Temperature. Stepless speed adjustment to match with diffrent bottles. Suitable for bottles made by plastics, Metal, Glass etc.
1. UV drying for round bottle and plane products.
2. Cylinder products increased the effect of light -
3. UV Drying of products according to size, material, adjust the speed conveyor belt
4. Ventilation system installed at the top, so as to extend lamp life
5. A closed-end structure
6. Aesthetic appearance, apply a wide range, solid-effective
7. Reliable, safe and easy to operate
parameter
1. Max UV curing round bottle high :320mm
2. Max UV curing Products width : 400mm
3. UV Curing bottle diameter : 25-100mm
4. curing size of workpiece: Cylinder products :320X400mm
5. Conveyor speed:0~10m/min ;
6. (United Kingdom)UV lamp power:4KW
7. UV Drying products speed:1800~3000PCS/HR
8.Total power:5KW
9..Machine dimension: L:2200mm W:600mm H:1700mm
Free Fitting :
1 PCS UV lsmp(4KW)
Testing Please provide:
1. 380V power supply.
2. 5-7 bar compress air.
Luen Cheong Printing Equipment Group Limited has manufactured LC brand color printing machines for more than 25 years, including various pad printer, silk screen printer, hot foil stamping machine, UV Curing machines and cliche making machine and pre-post printing machine. We have passed ISO-9001-2000 certification in 2001 and are a member of SGIA and all of our industrial printers have EURO'S CE standard.
With great effort and constantly exploration, now we can supply 200 various industrial printers per month. Our printing machines have been exported to more than 65 countries around the world and we also dispatch some printing engineers to give our customers technical support overseas. Our clients are satisfied with our products
We produce 8 series of printing machines with more than 30 types of screen printers, pad printers and hot stamping machines. Our main series are as follows:
(1) Full Automatic UV Screen Printer
(2) Plane/Cylinder Semi-Automatic Silk Screen Printer
(3) Manual AD Silk Screen Printer
(4) Multi-Colour Sealed Ink Cup Pad Printer
(5) Multi-Colour Open Ink Tray Pad Printer
(6) UV Curing Machine & IR Dryer Oven
(7) Hot Foil Stamping Machine
(8) Heat Transfer Printing Press
(9) Machine Equipment Pre-Post Printer
Our printing machines are widely used in the industry of plastic and hardware cosmetics case packaging, and electronic gift or toys, electronic industry, household appliance, bottle cap, stationery pen, glass, PCB board, advertising, textiles, lighting etc.
We have a professional training after sales service department, which is free to resolve your problem on installation and adjustment of the machine.
We are located in China industrial zone center, Dongguan City, only two hour's car ride from Guangzhou BAIYUNPORT. If you are interested in our products, please feel free to contact us at any time. Welcome to make a field inspection of our factory.
