Bricks and Blocks Machinery (ZCY-200)
Product Specifications
| Prod Model: |
ZCY-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Condition: |
New |
| Weight: |
2.4t |
| Certification: |
ISO9001: 2000 |
| Type: |
Brick Machine |
Product Description

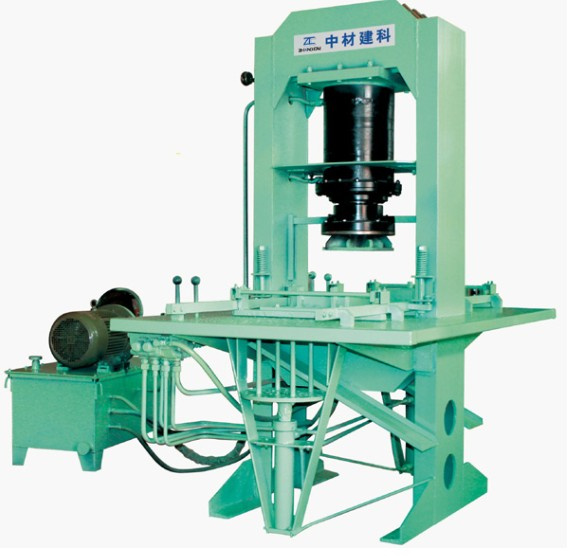

ZCY-200 Multiple-purpose Paving Block Making Machine
1. Productivity: Give the example of the production with dimensions at 250*250*50mm, 240 pieces produced in one hour, and 300 workdays in one year, the annual output is 720, 000 pieces.
2. Land area: 1, 000 square meters 50m2 for workshop 50m2 for warehouse 50m2 for office 850m2 for other purpose
3. Manpower: 4 workers(2 for machine operation, 1for blending machine and feeding operation, 1 for transportation)
4. Water and power supply: Total capacity installed: 15kW Average power consumption: 8kW/hour Average water consumption: 4T/day
5. Main raw materials: Sand, mountain flour, and cement.
Maximum pressure
|
200 tons |
Rated pressure
|
180 tons |
Maximum pressure of oil pump
|
31.5mPa |
Cycle of forming
|
two times/minute |
Motor power
|
11kW |
Overall weight of machine
|
2.4 tons |
Demolding table top
|
700 x 655mm |
Items of investment:
Component of production
|
Quantity |
|
ZCY-200 multiple-purpose paving machine |
1 |
|
Hydraulic Station |
1 |
|
Free mould |
1 |
Introduction:
Beijing Zhongcai Jianke Institute of Science and Technology for Building Materials is located in Guangzhuang, Dongli, Chaoyang District of Beijing which is the birth place for building materials. It is specializing in the manufacture and export of block making machine and roof tile machine and other construction equipments.
Quality is the core of our company. Advanced inspection equipments and stringent quality control tests make us through ISO9001 certification, and also we have passed the tests of National Building Materials and Mechanical Products Testing Center. Service is the guarantee of company life. Providing the customers with first-class service is our long-term and unchangeable ideas. Our products have been exported to Asia, South America, Africa, Middle East, Russia and so on.
It is our unceasing pursuit to commit ourselves to research and develop high-quality, environmental protection and new type building materials
1. Our head office is in Beijing
2. Our machines had been exported to 92 countries
3. Our product has passed CE, ISO9001, BV, SGS, CTC cetification
4. We have 2 Factories in China, one is in Beijing, the other one is in Wuhan China
5. We have 12 different models, Small, medium and large investment from USD1, 600 ----- USD350, 000.
6. We are an institute belong to China Building Material Academy, here is the most authoritative China Building Materias Inspection and China Construction Machinery Inspection And Certification Center.
7. We have after-sales departent in Asia, America, South America, Africa.
8. Engineers will come to you to install the machine and train workers for you.
Group in HongKong:
Company name in Chinese:
Company name in English: HK SINOMA JIANKE GROUP Co., Limited
Address: FLAT B07 FLOOR23, HOVER INDUSTRIAL BUILDING, NO. 26-38 KWAI CHEONG ROAD, N. T, Hong Kong
Head factory in Beijing:
Company name in Chinese:
Company name in English: Beijing Zhongcai Jianke Institute of Science and Technology for Building Materials
Address: No. 1, , Dongli, Guanzhuang, Chaoyang District, Beijing, China(On The First Floor In The China Building Materials Academy)
Branch factory in Wuhan:
Company name in Chinese:
Company name in English: Wuhan Zhongcai Jianke Intelligent Equipment Co., Ltd
Address: 3RD, Changxing Road, Xiaonan Economic Development Zone, Xiaogan City, Hubei Province
Address: No. 1 Dongli, Guanzhuang, Chaoyang District, Beijing, China
Zip code: 100024
Tel: 0086-10-65798737 0086-10-65767712
Fax: 0086-10-65798731
Contact person: Linda Li Mobile phone: 0086-13439309361
