Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
MB10s |
Product Description
Key Specifications/Special Features of MB10S:

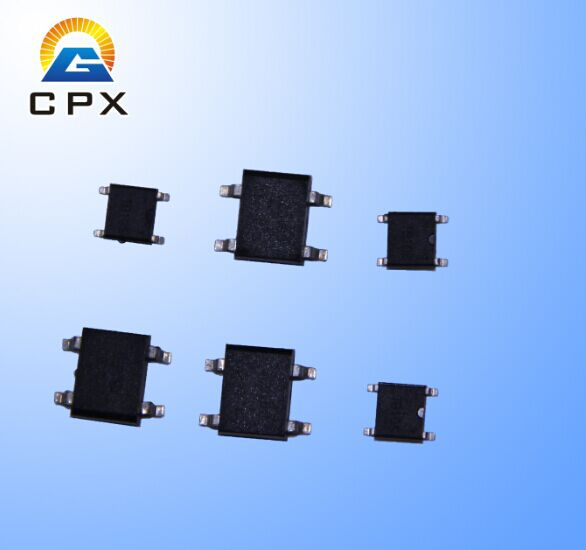

MB6S MB8S MB10S Power bridge rectifiers
Features:
This series is UL recognized under Component Index,
File number E239431
Glass passivated chip junction
Plastic materrial has U/L flammability classification
94V-O
High surge overload rating: 35A peak
Saves space on printed circuit boards
High temperature soldering guaranteed: 260° C/10sec/ at 5 lbs. (2.3kg) tension
Mechanical data:
Terminals: Plated leads solderable per MIL-STD-750, Method 2026
Case: Molded plastic body over passivated junctions
Polarity: Polarity symbols marked on body Dimensions in inches and (millimeters)
Mounting Position: Any
Weight: 0.0078 ounce, 0.22 gram
Package: MBS
Pb-free/ RoHS
Chuangpinxing Electronics Co., Ltd is a manufacturer specialized in diodes
Our products are exported to more than 20 countries
Why choose Trumping:
Manufacturer
With experience of producing diodes for more than 10 years
We accept a minimum order of just 5, 000 units
We can supply free samples
Best service: With rich experience in exporting sales staff will service you
Good quality: Helps you to prevent purchasing risk
Short delivery: Helps you to save time
Competitive price: The price is not the lowest but the highest cost performance.
Primary Competitive Advantages:
Brand-name Parts
Country of Origin
Green Product
Packaging
Quality Approvals
Service
Small Orders Accepted
Refund& Replacement:
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).
If the items you purchase from our store are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
If the items are defective, please notify us within 3 days of delivery.
Any items must be returned in their original condition to qualify for a refund or replacement.
The buyer is responsible for all the shipping cost incurred.
Contact Us:
If any other questions please feel free to contact us in any time
Tel: 86-755- 26623385
Mobile: 86-18664336272
| Type Number | SYMBOL | MB10S | units |
|
| Maximum Recurrent Peak Reverse Voltage | V RRM | 1000 | V |
| Maximum RMS Voltage | V RMS | 700 | V |
| Maximum DC blocking Voltage | V DC | 1000 | V |
Maximum average forw ard
output current @TA=25°C | I F(AV) | 0.5 | A |
Peak forw ard surge current
8.3ms single half-sine-w ave
superimposed on rated load | I FSM | 35 | A |
| Maximum instantaneous forwad voltage dropper leg at 0.4A | V F | 1 | V |
| Maximum DC Reverse Current@Ta =25°C | I R | 5 | uA |
| at rated DC blocking voltage @Ta =100°C | 0.5 | mA |
| Typical junction capacitance per leg (NOTE 3) | C j | 13 | pf |
| Storage Temperature | T STG | -55to+150 | °C |
| Operating Junction Temperature | T J | -55to+150 | °C |
