Product Specifications
| Prod Model: |
HBA-3000A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
AUTOMATIC BRINELL HARDNESS TESTER HBA-3000A
The Brinell hardness testing creates the largest indentation comparing all other hardness testing methods. It is able to reflect the comprehensive features of the material, and is unaffected by the microstructure and inhomogeneous of the specimen. So it with high precision and widely used in industry such as metallurgy, forging, casting, unhardened steel and nonferrous metals, as well as in the laboratories, universities, and scientific research institutes. HBA-3000A Tester conforms to:
ISO6506 Metallic Materials-Brinell Hardness Test
ASTM E-10 Test Method for Brinell Hardness of Metallic Materials

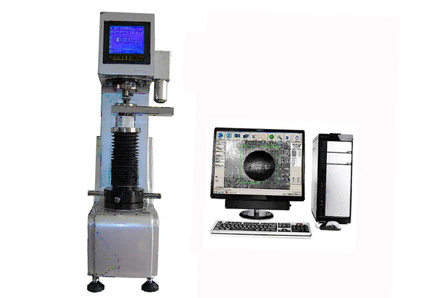

Scheme 2 Connect to laptop PC
Specification:
The whole weight of the tester is 50% less than the traditional dead weights type tester.
Test load selection by keyboard and LCD screen. No need of handling heavy weights or cleaning the messy oil.
Fully automatic test cycles. The hardness Tester features a fully automatic test cycle, load application, holding, unloading, is performed fully automaticly. This greatly improves reproducibility of test results since operator influence is eliminated.
Selectable dwell times by screen. The indenter, load, and other test informations are showing clearly on the large LCD screen.
The directions for 0.102F/D2 ratios selecting according to the materials and hardness range can be showing on the screen.
Equipped with the special Brinell indention measure system which can measure the Brinell indention accurately, quickly, reliably. It is a new measuring method by using CCD camera to capture the indention image, instead of reading diameter from optical microscope by operator then calculating the test value.
The HBA-3000A tester can connect any PC with USB port and runing the SPC software, then the special software supplying simplest operation as following.
Both single testing and batch testing mode are available
Tolerance setting, distinguishing and alarming
Statistics values such as Max, Min, Avg, R and S are available
Convert test result to other scales, such as HRC, HRB, HRA, HV, σ B
All test results and indention images are saved automatically
Test report created in Microsoft EXCEL format, can be edit, copy, print as you will
Software update freely
Technical data:
Loads: 3000kgf (29400N), 1500Kgf (14700N), 1000Kgf (9800N), 750Kgf(7355N),
500Kgf (4900N), 250Kgf (2452N), 187.5Kgf (1839N), 125Kgf (1226N),
100Kgf (980N), 62.5Kgf(612.9N)
Load dwell duration: 2s~99s, can be set and stored
Tungsten Carbide Ball indenter: 10mm
Measuring range: 3.18HBW~658HBW
Accuracy of indention measureing: ± 0.5%
Accuracy of Brinell Hardness Value:
Hardness Range(HBW) Error (%) Repeatability(%)
≤ 125 ± 2.5 ≤ 3.0
125
> 225 ± 1.5 ≤ 2.0
Max measurable height: 200 mm
Max measurable depth: 140 mm
Dimensions: 530mm× 260mm× 750mm
Power supply: 220/110 V, 50/60 Hz, 4A
Weight: 120kg
Standard blocks: 125-350HBW10/3000, 125-350HBW10/1000
Standard configuration
Host machine 1
Standard block 125-350HBW10/3000 1
Standard block 125-350HBW10/1000 1
10mm Tungsten Carbide Ball indenter 1
Mounting screws for indenter 1
Screwdriver for indenter mounting 1
Flat anvil, 80mmx185mm 1
Software disc
USB Key 1
USB Cable 1
Power supply wire 1
Dust cover 1
