Product Specifications
| Prod Model: |
MV2025TKME |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Temperature: 25°c~55°c: |
Storage Temperature: -40°c~70°c |
| Dimension: 193.6mm*116mm*66.8mm: |
Weight: 1.27kg |
| Application: |
Data Transmission, Image Transmission, Video Transmission |
| Modulation: |
Qpsk, 16qam, 64qam |
| Oscillator Circuit: |
LC or Crystal Oscillator |

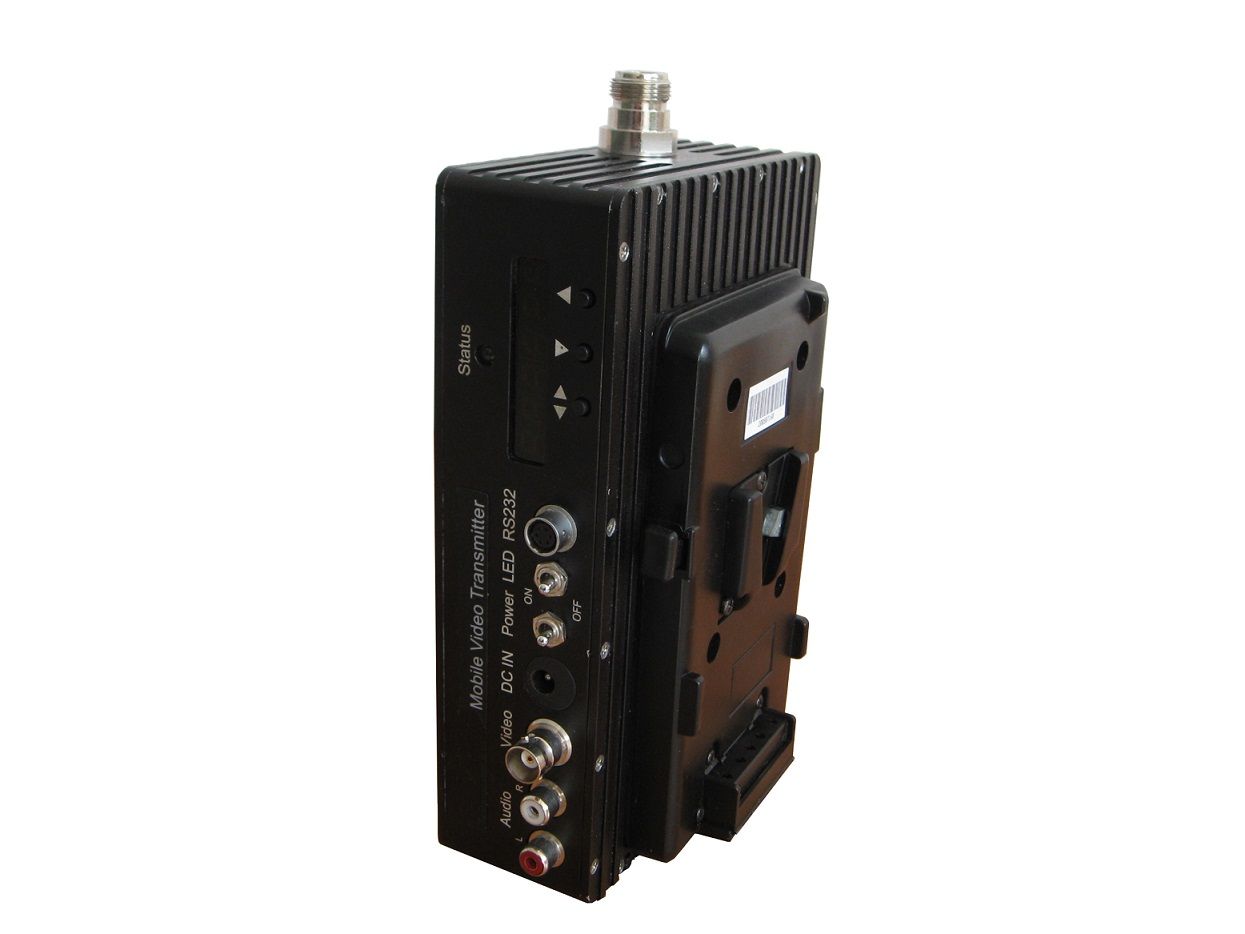

Product Description
Functions & Features:
- Super low latency
- ABS encryption
- Portable and practical with simple operation
- Working frequency directly display on panel
- Working frequency adjustable within specified range
- Builtin high-performance power amplifier
- COFDM modulation and MPEG-2 video compression for stable and high-quality transmission
- A/V signal simultaneously input, one-channel video input
- Left/right channel audio and unbalanced stereo input
- 1.25/2.5/6/7/8MHz multiple bandwidth output
- Video input PAL/NTSC optional (default as PAL)
|
Power Supply |
|
Working voltage V |
DC12V~DC16V |
|
Working current A |
≤[email protected] |
|
Battery lasting |
2.5 hours |
|
Video Transmission |
|
Frequency output range |
300MHz~450MHz,560~760MHz or user customized |
|
RF bandwidth |
6/7/8MHz or 1.25/2.5MHz |
|
Power output |
18~33dBm adjustable with 1dB step |
|
C/N |
30dB @ 30dBm |
|
SHG |
>52dBc |
|
Encryption |
AES/ALLTECH Basic Scrambling |
|
Modulation |
COFDM |
|
Constellation |
QPSK,16QAM,64QAM optional
QPSK/16QAM/64QAM @ 6/7/8MHz |
|
FEC |
1/2,2/3,3/4,5/6,7/8 optional |
|
Carrier |
2K |
|
Video encoding |
MPEG-2/MPEG-4 |
|
Video input level |
1Vp-p@75Ω,PAL |
|
Video resplution |
720×576(PAL) 720×480(NTSC) |
|
Power flatness |
Full band ≤2dB, 8MHz (within)≤0.5dB |
|
A/V interface |
BNC/RCA
|
|
Video bitrate |
15Mbps(MAX) |
|
RS232 control interface |
Standard RS232 level, 9600, 8, N, 1 |
|
RS232 data interface |
Standard RS232 level, support 1200~115200 |
|
CBER |
<2.0E-4 |
Environment
|
|
Working temperature |
-25°C~55°C |
|
Storage temperature |
-40°C~70°C |
|
Appearance |
|
Dimension |
193.6mm×116mm×66.8mm |
|
Weight |
1.27kg |
