Built-in Printer Portable Ultrasonic Flow Meter (A+E 80FC)
Product Specifications
| Prod Model: |
A+E 80FC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Ultrasonic Flow Meter |
| Temperature: |
0-160 C (32 to 320 F) |
| Battery Operation: |
up to 24h |
| Heat Quantity Measurement Function: |
Optional |
| Internal Data Logger: |
Optional |
| Data Download: |
SD Card or USB Cable |
| Intuitive Flow Meter Menu: |
Yes |
| Unique Audible Sensor Positioning Asst: |
Yes |
| Coomunication: |
Modbus, FUJI |
| Signal Output: |
Isolated RS485 |
| Type: |
Ultrasonic Flow Meter |
| Measuring Principle: |
Acoustics |
| Measuring Media: |
Liquid |
| Accuracy: |
>?à1% |
| Main Application: |
Corrosive Liquid/Gas |
| Sensor: |
Clamp-on/External |
| Application: |
Industrial, Energy, Environmental |
| Size: |
Dn15-3000 (1/2'' to 118'') |
Product Description

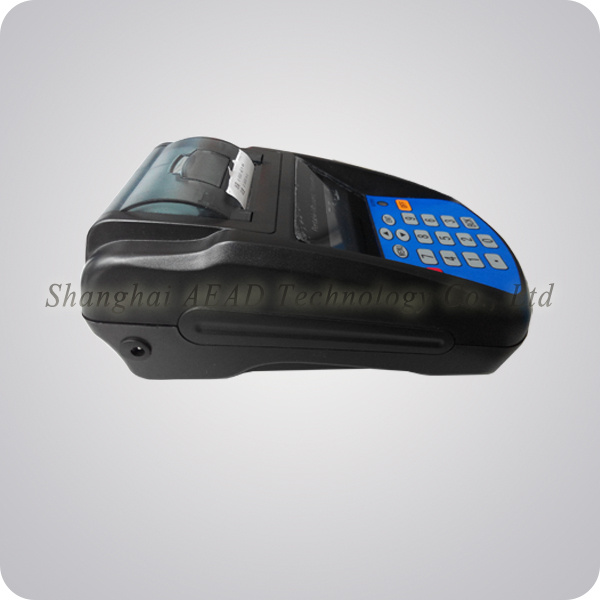

Built-in Printer Portable Ultrasonic Flow Meter (A+E 80FC)
This is an ultrasonic clamp-on flow meter which is portable with built-in printer, offering a variety of optional features. This meter is compact and robust which comprises additional functions and can turn it into more than just a flow meter.
In contrast to its hand-held couterpart, the portable flow meter offers a built-in thermosensitive printer to relize real-time or definite time printing. But it can't be used simultaneously with data logger function.
Features
--portable ultrasonic flow meter
--Real time data transfer
--Intuitive flow meter menu
--Heat measurement function optional
--Data logger and SD card
--Easy installation and operation
--Measuring temperature from 0-160 C (32 to 320 F)
--Alternative SD card storage and data printing function
--Nice appearance
Specifications
Transmitter
Power requirements: Built-in 24V Ni-MH battery provides 24 hrs of continuous operation, Charging: 220V AC 56/60 Hz
Velocity range: 0-10m/s (0-32 ft/s)
Inputs/Outputs: 4-20mA, RS485, Heat Flow
Display: 2*8 characters display instantaneous and accumulative flow, velocity and signal status
Units: User configured
Ambient conditions: -20 °C to +55 °C ( -4 to +131°F), 0 to 85% relative humidity
Size: 220*125*92mm ( 8-2/3"*5"*3-1/2"), 800g
Accuracy: ±1%
Repeatability: ±0.2%
Transducer
| Sensor Selection | Standard S1 type | Standard M1 type | Standard L1 type | High-temperature S1H type | High-temperature M1H type |
| Applicable pipe diameter (DN) | 15~100 | 50~700 | 300~6000 | 15~100 | 50~700 |
| Material | ABS | Special high-temperature material |
| Working frequency | IMHZ |
| Installation method | V (N\W)method | V\Z method | Z method | V (N\W)method | V\Z method |
| Calibration | Pairing & Calibrating for the complete machine |
| Magnetism | Yes | N/A |
| Applicable temperature | 0~70 C | 0~160 C |
| Protection grade: | IP65 |
| Dimension(mm) | 45×30×30 | 60×45×45 | 80×70×55 | 90×85×24 | 90×82×29 |
| Mass (gram) | 75 | 250 | 650 | 94 | 150 |
| Medium type: | Water, seawater, sewage, alcohol, various oils and other single, uniform and stable liquid that can transmit ultrasonic wave |
| Medium turbidity: | ≤20000ppm with low bubble content |
| Applicable pipes: | Uniform and compact pipes made of carbon steel, stainless steel, cast iron, copper, PVC, aluminum, glass fiber reinforced plastics, and lining is permitted. |
| Pipe lining material | Epoxy asphalt, rubber,
mortar, polypropylene, polystyrene, bakelite, polytetrafluoroethylene etc. |
| Signal cable | Standard configuration: 5mX2, and 10mX2 or 15mX2 are optional. |
Other Options and Accessories

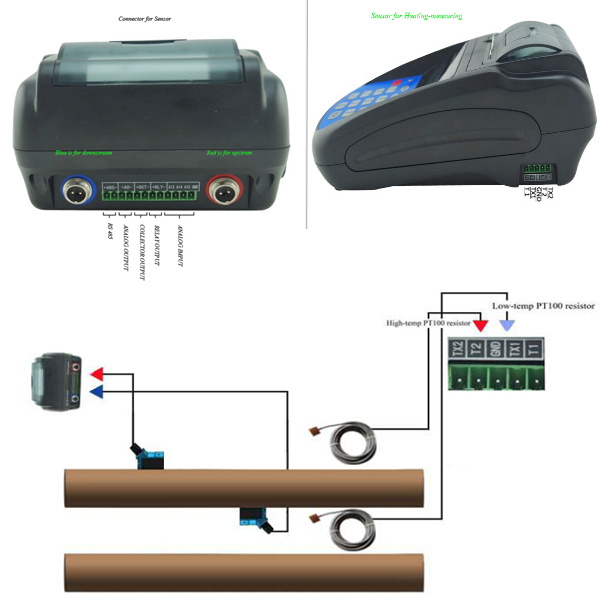

The portable ultrasonic flow meter could be used as a heating meter when equipped with PT100 resistance.
This portable ultrasonic flow meter is widely used to measure water, seawater, sewage, alcohol, various oils and other single, uniform and stable liquid that can transmit ultrasonic wave.
