Handheld Clamp on Ultrasonic Flow Meter (A+E 80FB)
| Price: |
US $ 450/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
A+E 80FB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Ultrasonicflow Meter |
| Temperature: |
0-160 C (0 to 320 F) |
| Repeatability: |
0.2% |
| Battery Operation: |
15 Hours |
| Internal Data Logger: |
Yes |
| Output: |
RS485 |
| Communication: |
Modbus, FUJI |
| Display: |
2 Lines Backlight LCD |
| Extra Function: |
SD Card & Heat Metering |
| Heat Sensor: |
PT100 |
| Accuracy: |
>?à1% |
| Main Application: |
Corrosive Liquid/Gas |
| Sensor: |
Clamp-on/External |
| Type: |
Ultrasonic Flow Meter |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Acoustics |
| Size: |
Dn 15-3000 |
| Application: |
Industrial, Agriculture |
Product Description

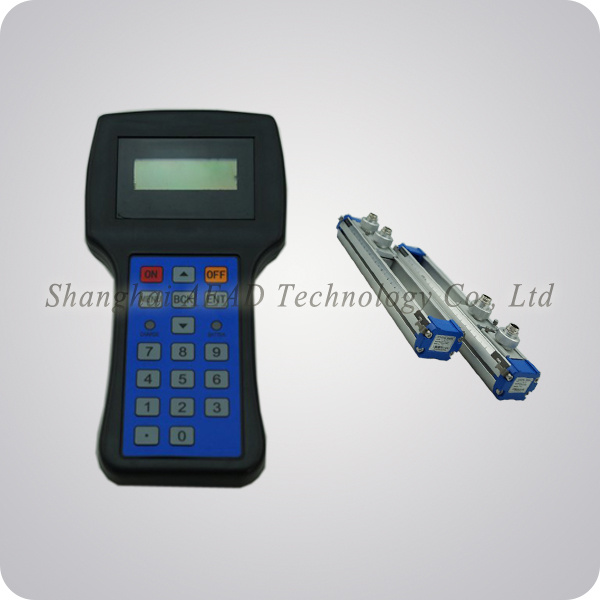

Handheld Clamp on Ultrasonic Flow Meter (A+E 80FB)
The ultrasonic flow meter is a handheld type with clamp-on sensor which offers a variety of optional features. It is a compact and robust instrument that comprises additional functions that can turn it into more than just a flow meter.This ultrasonic flow meter is widely used to measure water, seawater, sewage, alcohol, various oils and other single, uniform and stable liquid that can transmit ultrasonic wave. Pipe line sizes range from 15 to 3000mm (1/2" to 118").Features--Real time data transfer
--Intuitive flow meter menu
--Heat measurement function optional
--Data logger and SD card
--Light weight and low cost
--Easy installation and operation
--Measuring temperature from 0-160 C (32 to 320 F)--Nice appearanceSpecificationsTransmitterPower requirements: Built-in 24V Ni-MH battery provides 12 hrs of continuous operation Charging: 220V AC 56/60 Hz
Inputs/Outputs: 4-20mA, RS232 / RS485, Heat Flow
Dispaly: 4 line characters display instantaneous and accumulative flow, velocity and signal statusUnits: User configuredAmbient conditions: -20 °C to +75 °C ( -4 to +167°F), 0 to 85% relative humiditySize: 220*120*92mm (8-2/3"*4-3/4"*3-1/2"), 600gFlow rate: 0-10m/s (0-33"ft/s)
Accuracy (at calibrated conditions): Flow: ± 1% reading, Heat: ± 2%Repeatability: 0.2%| Transducer |
| Technical parameters | Standard S1 | Standard M1 | Standard L1 | S1H | M1H | HS bracket | HM bracket |
| Applicable pipe (mm) | 15~100 | 50~700 | 300~6000 | 15~100 | 50~700 | 15~100 | 50~700 |
| Material | Aluminum alloy | PES (Polyether Sulfone) |
| Working frequency | 1 MHZ |
| Installation method | V (N,W) | V,Z | Z method | V (N,W) | V,Z | V (N,W) | V,Z |
| Calibration | Pairing & Calibrating for the complete machine |
| Magnetism | Yes | N/A | Yes |
| Applicable temperature | -40~90 °C | -40ºC~160 °C |
| Protection | IP68 |
| Media type | Water, seawater, sewage, alcohol, various oils and other single, uniform and stable liquid that can transmit ultrasonic wave |
| Medium turbidity | <20000ppm with low bubble content |
| Applicable pipes | Uniform and compact pipes made of carbon steel, stainless steel, cast iron, copper, PVC, aluminum, glass fiber reinforced plastics, and lining is permitted. |
| Pipe lining material | Epoxy asphalt, rubber, mortar, polypropylene, polystyrene, bakelite, polytetrafluoroethylene etc. |
| Signal cable | Standard configuration: 5mX2, and 10mX2 or 15mX2 are optional. |

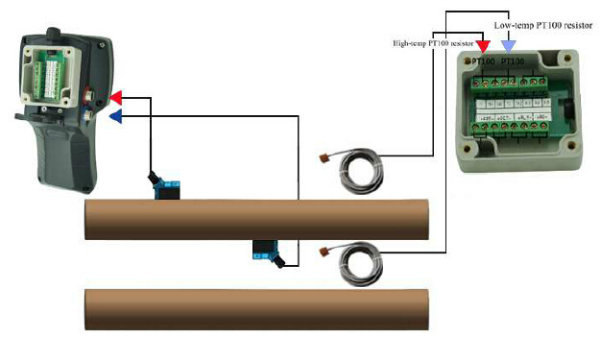

Heat Measurement FunctionThis ultrasonic flow meter could be used as a heating meter when equipped with PT100 resistance.

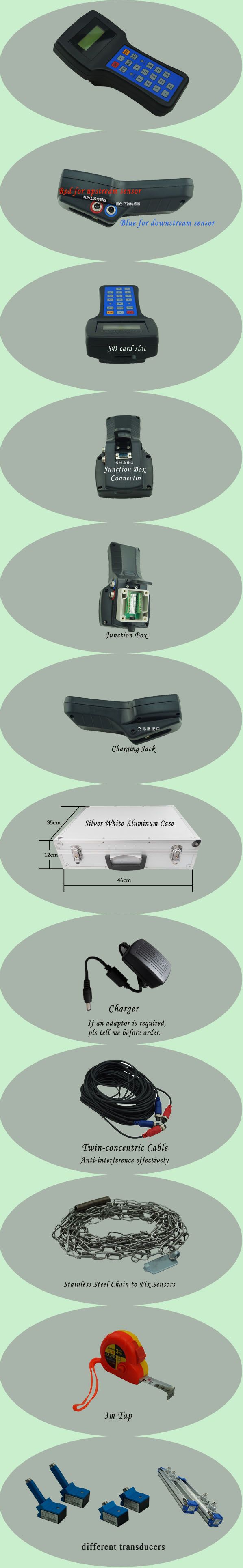

Details and Accessaries
Shanghai AEAD Technology Co., Ltd is a cooperation of Chinese and German technique which mainly performs in R&D, production and sales.
AEAD Technology was first founded in 2009 in Jiangsu, and established Shanghai Branch in May 18th, 2014. The new Shanghai factory would complete in DEC 2014, located in the Free Trade Zone. Before the business started in 2009, the General Manager Mr. R. H. Liu and Technical Director Mr. S. P. Zong had dedicated in instrumentation for more than 20 years. After 5 years development and achieving good reputation in domestic market, we become a leading manufacture in East China. Now we believe we are ready to overseas users.
The company adopts advanced production line from Germany, and the main products include A+E series products for exporting and A+D products for domestic sales in pressure, temperature, flow, level, calibration and valve which can cater for the needs from domestic and foreign markets. Products are organized and sold under fully dedicated divisions, each staffed with an experienced and highly trained team of dedicated technical sales, applications engineering and customer service support personnel. Products are applied to water treatment, petrochemical, chemicals, machinery, pharmacy, food, mine, metallurgy, etc.
AEAD Technology adheres to the development strategy of Internationalization, Technicalization, Industrialization, which can realize the high-end extension of the products from domestic market to international market. The value chain turns from providing single product to system solution, and the operation expands from linear-oriented to a comprehensive modern enterprise operation including merger and capital operation.
The company has already passed the ISO9001 Quality Management System Certification, ISO14001 Environmental System Certification, and Occupation Health Safety Management System Certification (OHSAS18000).
