Product Specifications
| Prod Model: |
PLC control series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Shineeast |
| Working Medium: |
Oil |
| Usage: |
Oil and Gas Processing Machinery |
| Type: |
Well-Test Equipment |
| Certification: |
ISO |
Product Description

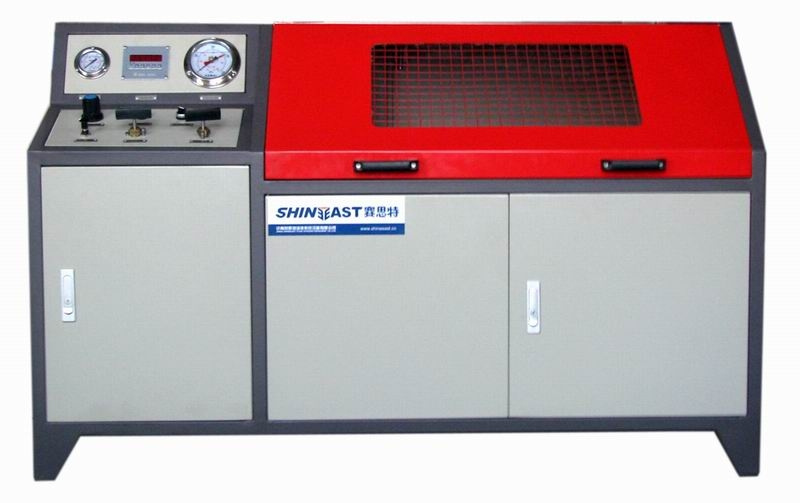

Bursting pressure test benches involves sbt400 model are specialized test rigs to provide pressure and bursting testing for various hydraulic hoses, valves, vessels, tubes and other hydraulic products.
They are powered by hydraulic pump motor and use shineeast hydraulic pump for oil pressurization. Test pressure up to maximally 400mpa. Test medium of hydraulic oil ISO vg46 or ISO vg32.
Bursting pressure test benches involves sbt400 model are specialized test rigs to provide pressure and bursting testing for various hydraulic hoses, valves, vessels, tubes and other hydraulic products. They are powered by hydraulic pump motor and use shineeast hydraulic pump for oil pressurization. Test pressure up to maximally 400mpa. Test medium of hydraulic oil ISO vg46 or ISO vg32.
Data set and display picture
Applications
Pressure and burst testing of pressure, high pressure and ultra-high pressure hoses, hydraulic pressure hoses, expansion, radiator and steering booster hoses, aeronautic hoses and tubes/pipes, high pressure tubes/pipes leak and length variation testing of above components burst pressure and leak testing of various pressure vessles burst pressure testing of automobile pumpbrake system or components, power steering etc.
Real-time pressure-time curve picture
Key features and advantages
Separate testing and driven system. Available for easily temperature control as well as powering a variety of mediums, such as oil, water or non-corrosive liquids control units with PC, ipc and PLC real-time monitoring as well as data recorded on high-speed sampling cards and also curves printing alarming at due time bursting and due point recording a variety of tooling fixtures meeting with different mounting method requirements non-welded pipeline system industrial control configuration software or on labview leakage and length variation etc. Functional tests available.
|
Type |
SBT400 |
|
Maximum burst pressure |
400Mpa |
|
Number of the test pieces |
1 pressure port |
|
Pressure source |
SHINEEAST hydraulic oil pump |
|
Power source |
Hydraulic pump motor |
|
Test medium |
Hydraulic oil ISO VG46 or ISO VG32 |
|
Control unit |
IPC and PLC |
|
Energy demand(Power supply) |
5.5 kW |
Dimensions of the test chamber
(width x depth x height) approx. |
1850 X1200X840mm |
Jinan shineeast fluid systems equipment Co., Ltd., is a leading manufacturer specialized in high pressure fluid and gas handling equipment, which located in jinan city, the capital of shandong province, and only three hours to Beijing by train.
In addition to offering a comprehensive range of pneumatic driven liquid pumps, air pressure boosters, pneumatic driven gas boosters, high pressure valves, fittings and accessories, power packages and hydraulic presses, we customize and build power packs and test rigs. Our main manufacturing locations are fully registered according to ISO9001: 2008 standard.
Shineeast also has a strong commitment to providing you with high quality products as well as excellent service and support. This helps to maintain shineeast as the best choice for all of your high pressure requirements.
Our products are widely used in machine tools, diesel engine, aerospace automobile manufacturing, household electrical appliances, shipbuilding, petrochemical, CNG vehicle rebuilding industries as well as high pressure testing and other fields where high pressure are required.
Guaranted with the reliable quality and after-sale service, we have built an enviable reputation in recent years. Many colleges, indurstries, as well as automobile indurstries have already established agreeable and mutual benefit business relationship with us.
Please contact us to discuss your requirements or visit our website for more information.
