Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB,CFR,EXW |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,D/P,Western Union |
Main specitication type |
C61160 |
C61180 |
C61200 |
C61220 |
C61235 |
||
|
Max. swing over bad |
mm |
1600 |
1800 |
2000 |
2200 |
2350 |
MAX. swing over carriage |
mm |
1250 |
1450 |
1650 |
1850 |
1950 |
|
Center height |
mm |
830 |
930 |
1030 |
1130 |
1205 |
|
Max. length of workpiece |
m |
3-16 |
3-16 |
3-16 |
3-16 |
3-16 |
|
Max. weight of workpiece between centers |
t |
32 |
32 |
32 |
32 |
32 |
|
Max. torque of face plate |
kg. m |
8000 |
8000 |
8000 |
8000 |
8000 |
|
Max. cutting capacity of independent tool post |
kg |
9000 |
9000 |
9000 |
9000 |
9000 |
|
General cutting capacity |
kg |
16000 |
16000 |
16000 |
16000 |
16000 |
|
Cone point angle of center and specification |
|
75° ; 120 taper(1: 7) |
75° ; 120 taper(1: 7) |
75° ; 120 taper(1: 7) |
75° ; 120 taper(1: 7) |
75° ; 120 taper(1: 7) |
|
Section dimension of tool shank |
mm× mm |
70× 70 |
70× 70 |
70× 70 |
70× 70 |
70× 70 |
|
Step. No of spindle speed |
|
steplese |
steplese |
steplese |
steplese |
steplese |
|
Range of spindle speed |
r/min |
0.8-160 |
0.8-160 |
0.8-160 |
0.8-160 |
0.8-160 |
|
Taper bore in spindle |
mm |
120; 1: 7 |
120; 1: 7 |
120; 1: 7 |
120; 1: 7 |
120; 1: 7 |
|
Diameter of face plate |
mm |
1600 |
1600 |
2000 |
2000 |
2000 |
|
Step. No of feed |
|
step 18 |
step 18 |
step 18 |
step 18 |
step 18 |
|
Range of longitudinal feed |
mm/r |
0.125-48 |
0.125-48 |
0.125-48 |
0.125-48 |
0.125-48 |
|
Range of cross feed |
mm/r |
0.063-24 |
0.063-24 |
0.063-24 |
0.063-24 |
0.063-24 |
|
Feed range of tool slide compound |
mm/r |
0.063-24 |
0.063-24 |
0.063-24 |
0.063-24 |
0.063-24 |
|
Longitudinal rapid traverse speed |
mm/min |
3000 |
3000 |
3000 |
3000 |
3000 |
|
Cross rapid traverse speed |
mm/min |
1500 |
1500 |
1500 |
1500 |
1500 |
|
Max. travel of cross slide |
mm |
725 |
725 |
800 |
800 |
800 |
|
Max. travel of tool slide compound |
mm |
600 |
600 |
600 |
600 |
600 |
|
Pitch of metric thread |
mm |
2-40 |
2-40 |
2-40 |
2-40 |
2-40 |
|
Inch thread |
pitch/inch |
1-14 |
1-14 |
1-14 |
1-14 |
1-14 |
|
Module thread |
mm |
1.5-20 |
1.5-20 |
1.5-20 |
1.5-20 |
1.5-20 |
|
Diameter of tailstock sleeve |
mm |
300 |
300 |
300 |
300 |
300 |
|
Traversing capacity of sleeve |
mm |
300 |
300 |
300 |
300 |
300 |
|
Spindle taper bore of tailstock |
mm |
100 taper(1: 7) |
100 taper(1: 7) |
100 taper(1: 7) |
100 taper(1: 7) |
100 taper(1: 7) |
|
Rapid traverse of tailstock |
mm/min |
3000 |
3000 |
3000 |
3000 |
3000 |
|
Rapid traverse of sleeve |
mm/min |
664 |
664 |
664 |
664 |
664 |
|
Power and speed of main motor |
|
75KW 400-1200r/min |
75KW 400-1200r/min |
75KW 400-1200r/min |
75KW 400-1200r/min |
75KW 400-1200r/min |
|
Rapid traverse motor and speed of tool post |
|
1.5KW 1500r/min |
1.5KW 1500r/min |
1.5KW 1500r/min |
1.5KW 1500r/min |
1.5KW 1500r/min |
|
Rapid traverse motor and speed of tailstock |
|
1.5KW 1500r/min |
1.5KW 1500r/min |
1.5KW 1500r/min |
1.5KW 1500r/min |
1.5KW 1500r/min |
|
Rapid traverse motor and speed of tailstock sleeve |
|
1.1KW 1500r/min |
1.1KW 1500r/min |
1.1KW 1500r/min |
1.1KW 1500r/min |
1.1KW 1500r/min |
|
Power and speed of lubricating pump of headstock |
|
1.1KW 1500r/min |
1.1KW 1500r/min |
1.1KW 1500r/min |
1.1KW 1500r/min |
1.1KW 1500r/min |

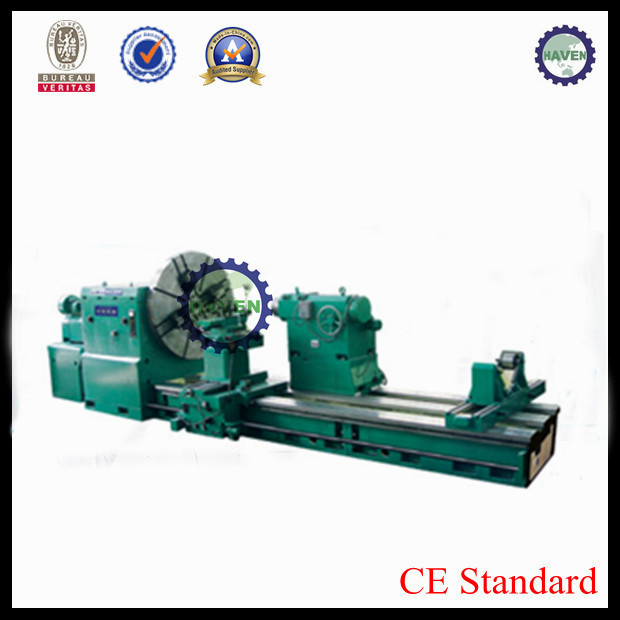

Prod Model: | C61160 Series |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Max Loading Weight: | 32 Tons |
Type: | Horizontal Lathe |
Automatic Grade: | Semiautomatic |
Precision: | High Precision |
Power Source: | Electric |
Setting Mode: | Floor-type |
Controlling Mode: | Artificial |
Processing Accessory: | Chuck CNC Lathe |
Tool Holder: | Single-tool Holder CNC Lathe |
