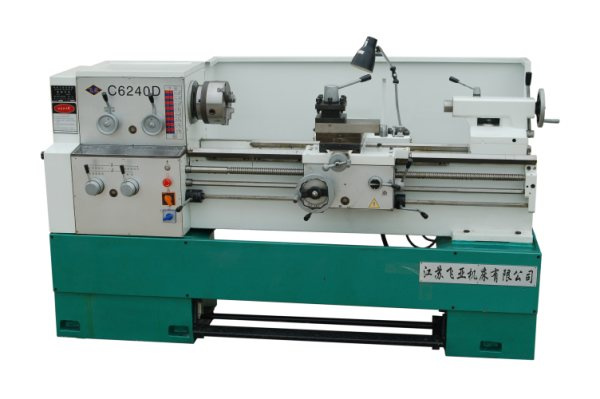

C6240D Series of High-speed and Precision Machine Tools
| Price: |
Negotiable |
| Min Order: |
1 |
Product Specifications
Product Description
Main Features:
Strong rigidity of whole unit
Ultrasonic frequency quenching and microfinishing for machine body, hardness number over than HB400.
Diameter of drilling spindle as 52mm, head face according to ISO-C6
Gear in main spindle box by precised grinding, with low noise
16 levels of rotary speed range as 19-1800rpm
Head face of tool holder positioning with fluted disc, keeping in high resetting accuracy
Self-actuating brake, overload protection
Safe and reliable electrical components
| Model | | C6240D |
| CAPACITIES | Max.swing over bed | 400mm |
| Max.swing over Cross side | 280mm |
| Center distance | 750,1000,1500mm |
| Max.swing over gap | 560mm |
| Bed width | 330mm |
| Spindle | Spindle hole | 52mm |
| Spindle nose | C6 |
| Spindle taper | MT6 |
| Spindle speeds(Number) | 19-1800rpm(16steps) |
| FEEDS | Metric threads range(Kinds) | 0.45-20mm(30 kinds) |
| Inch threads range(Kinds) | 80-1 3/4 T.PI(35kinds) |
| Moudle threads range(Kinds) | 0.25-10(25 kinds) |
| Diametral threads range(Kinds) | 160-3 1/2 D.P(30 kinds) |
| CARRIACGE | Cross side travel | 255mm |
| Compound rest travel | 130mm |
| Cross-section size of toolshank | 20*20mm 2 |
| TAILSTOCK | Taper of tailstock sleeve | MT4 |
| tailstock sleeve dia | 55mm |
| tailstock sleeve travel | 120mm |
| MOTOR | Main motor power | 4/5.5kw |
| | Net weight | 1400kg(750mm) |
| | Center distance 750mm | 1500/2150 |
| | 1000mm | 1600/2200 |
| | 1500mm | 1750/2350 |
| STANDARD EQUIPMENT | OPTIONAL ACCESSORIES |
| 1.10" 3 jaw chuck | 1.Chuck guard & Leadscrew cover |
| 2.12" 4 jaw chuck | 2.Collet attachment |
| 3.Face plate | 3.Taper attachment |
| 4.Morse reduction sleeve M.T.No.7/5 | 4.10" drive plate |
| 5.Centers M.T.No.4,M.T.No.5 | 5.Digital readout device |
| 6. Wrenches | 6.Quick change tool post |
| 7.Steady rest | |
| 8.Follow rest | |
| 9.Four way tool post | |
Established in 1985, with over 20 years of history, we are a private owned enterprise professional in producing machine tools.
Our company owns an old factory and a new one. Old factory, covering area of 52 Mu (1 Mu=666 Square Meter), and workshop area of 15, 000 square meter, holds fixed asset of 15 million RMB, more than 50 sets of large-scale and precise equipments, such as Double Haas Planner, Plano-miller, Plano-slider Grinder of Peripheral Grinding, NC Boring Lathe and etc., furthermore, more than 80 sets of metal-cutting machines, such as turning, milling, planning, grinding and so on. With annual output of 3000 sets in 6 models of C6136A\C6136C\C6136D\C6132\C6140\C6150 and NC series, we have sells whole China.
Locating in Yandu District Industry Zone, Yancheng, our New Factory, occupies 108 Mu, and possesses registered capital of 10 million RMB. Starting factory construction in 2006, investing 40 million RMB in civil engineering, finishing workshop of 30, 000 square meters, till Aug. 2007, starting installation of equipment in Nov. 2007, and running from Jan. 2008, we are focusing manufacture of NC Lathe, NC Vertical Miller, Vertical CNC and Environment Protection Machines.
Our New Factory faces with Yandu Ave. ---the longest and widest road in urban area, far from Yancheng Airport in 10 kilometers, 2_3 kilometers to Yanhuai, Yanning and Yanhai National Highway, 3 kilometers to Yancheng Railway Station and Yancheng Municipal Government Office Building too, all this contributes our location as "gold place" with much convenient traffic.
In spite of exportation, we are also dealing with importation of technologies and equipments etc., we are also able to undertake production with clients' samples, drawings etc.
Chairman of board-- Mr. Lu Faming, welcome all customers, academic institution and university for cooperation of business and investment.
