Fato Mechanical and Electrical Co., Ltd. >> C65L Series 2p RCD-MCB Combinations Earth Leakage Circuit Breaker

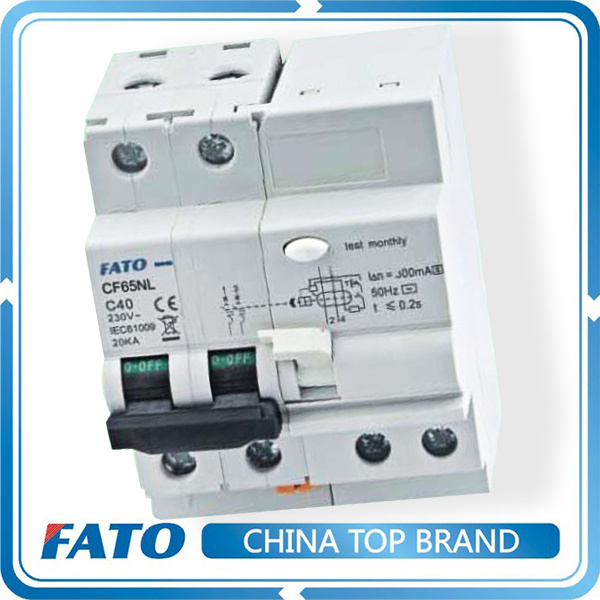

C65L Series 2p RCD-MCB Combinations Earth Leakage Circuit Breaker

Name: C65L Series 2p RCD-MCB Combinations Earth Leakage Circuit Breaker
Brand: china-manufacturer-directory.com
SKU: 753888835
Availability: InStock
Rating: 4.5 (57 reviews)

Supplier:	Fato Mechanical and Electrical Co., Ltd.
Price:	US $ 6/Piece
Min Order:	500/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	C65L SERIES 2P
Markets:	Eastern Europe,Southeast Asia,Africa,Oceania,Mid East
Rated Voltage:	230/240V
Poles:	1p 2p 3p 4p
Current:	6-63A
Tripping Characteristic:	B C
IEC Standard:	61009
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ELCB
Poles Number:	2
Certification:	CCC

Product Description

FATO MECHANICAL AND ELECTRICAL CO., LTD.who was founded in 1987, is a professional manufacturer of series of circuit breakers in China, and ISO 9001, ISO14001, OHSAS18000 certificated.

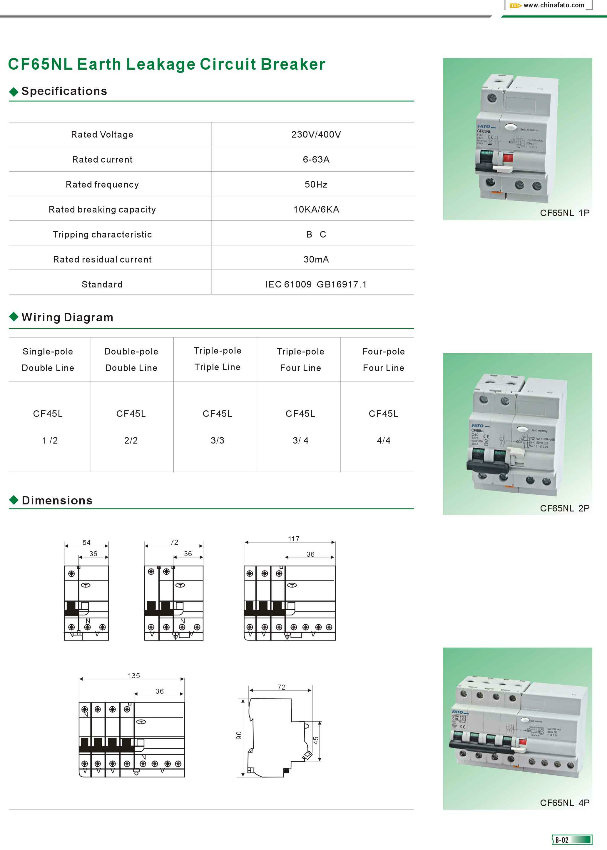

Specifications

RCD-MCB combinations
Vigi C65 2P 4P ELM
Schneider Merlin Gerin
Multi 9 Electromagnetic type Leakage Protection Device

SPECIFICATION

RCD-MCB combinations are suitable for the protection of circuits with higher safety requirements

APPLICATION

RCD-MCB combinations provide a high level of protection against earth leakage faults by the RCD in addition to the overcurrent and short-circuit protection offered by the MCB. RCD-MCB combinations are suitable for the protection of circuits with higher safety requirements (i.e.electric apparatus in rooms wuth high humidity, socket circuits, rooms with bath bubs or shower etc.)

Parameters:

Rated voltage	230/400V
Rated current	6A 10A 16A 20A 25A 32A 40A 50A 63A
Pole	1P+N 2P 3P+N 4P
Rated operating current(mA)	30mA 50mA 100mA 300mA
Rated non operating(IΔN)	05IΔN
Tripping curve	C type D type
Type	Electronic

Founded in 1986, China FATO MECHANICAL & ELECTRICAL EQUIPMENT GROUP COMPANY Ltd. Is being acknowledged as one of the most respected nationwide manufactures and exporters of low voltage electrical apparatus in P. R of China.

The Group, comprising more than 60 factories, owns a production area of 150, 000M2 and employs more than 3, 000 staff. During the past 18 years, we invested abundant resources in both research and development and employee training programs. The Group was ranked in the front of 100 tops of national private enterprises and 100 tops enterprises of Chinese Mechanical Industry. "FATO" is named as a famous trademark in domestic and overseas markets. Our company has took the lead in applying ISO9001 Quality Management System, ISO14001 Environmental Management System and OHSAS18000 Occupational Health and Safety Manangement System in same trade. Many products are certified under international certificate, such as CB, CE, BS, VDE, UL.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of Circuit breakers, Contactors, Relays, Starters, Switches, Panel meters, Fuses, Mechanical instruments and Electrical accessories etc. And we have already established great business relationship with renowned customers in South East Asia, Middle East, South America, Africa and EEC.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"

Can keep us survive and succeed in today's highly competitive market. Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed. Just Tell Us Your Requirements and Let Us Do The Rest For You!
