Product Specifications
| Prod Model: |
CFB3LE 1P+N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
CFB3le |
| Rated Voltage: |
110, 230/400VAC |
| Rated Current: |
6, 10, 16, 20, 25, 32, 40, 50, 63 |
| Short-Circuit Breaking Capacity: |
10ka |
| Frequency: |
50/60Hz |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
ELCB |
| Poles Number: |
1 |
| Certification: |
CCC |
Product Description
APPLICATION

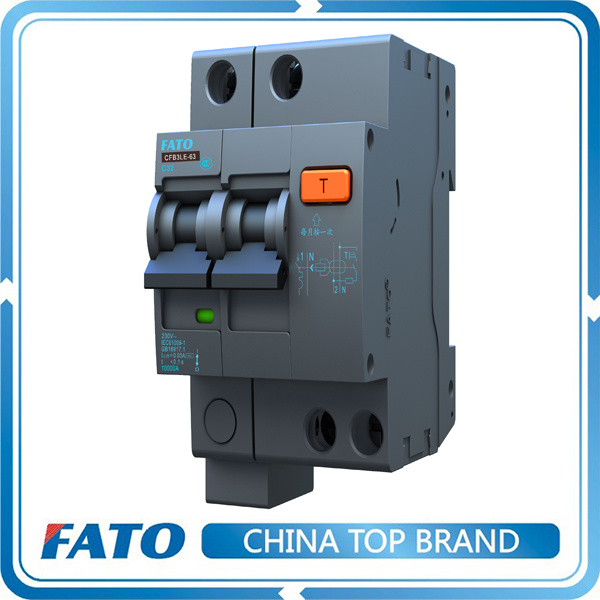

CFB3LE series mini earth leakage circuit breaker is our new self-developed product. It is suitable for the circuit of AC50Hz with rated voltage up to 400V and rated current up to 63A, mainly used as a personal electrical shock protection and over-current protection for building and circuit equipment of similar function. This product can also provide protection for the danger of fire caused by equipment insulation damage or earthing error.
The breaker conforms to GB16917.1, IEC61009-1.
STRUCTURE FEATURES
CFB3LE series mini earth leakage circuit breaker is a kind of current tripping type electronic earth leakage circuit breaker, made of CFB3 high breaking capacity mini circuit breaker and leakage release.
When there is leakage and personal electrical shock in the circuit, the breaker will trip immediately and turn off the power so that can protect leakage and electrical shock as long as rated residual operating current
IΔ n reaches tripping current. It also can protect circuit from overload and short circuit.
TECHNICAL PARAMETERS
Shell
Frame |
Pole
No. |
Neutral
pole |
Rated
Current
In(A) |
Residual
Tripping
Current
IΔn(mA) |
Residual
Non-tripping
Current
IΔn0(mA) |
Rated Short Circuit Breaking Capacity | Rated Residual Making Breaking Capacity(A) |
Over-current Instantaneous
Release Type |
Voltage(V) | Breaking Capacity | COS |
| 63 | 1 | N |
6,10,
16,20,
25,32,
40,50,
63 |
30 | 0.5IΔn | 230 | 10000 | 0.5 | 3000 | C,D |
| 2 | |
| 3 | | 400 |
| 3 | N |
| 4 | |
| 40 | 1 | N |
6,10,
16,20,
25,32,
40 | |
0.5IΔn | 230 | 10000 | 0.5 | 3000 | C,D |
Over-current release characteristic
Release type
|
Test power (A)
|
Release time (t)
|
Expected result
|
Ambient Temperature
|
B |
C |
D |
Thermal release
|
I1 |
1.13In |
1.13In |
1.13In |
≤1h |
Non-release
|
30-35°c
|
I2 |
1.45In |
1.45In |
1.45In |
<1h |
Release
|
Magnetic release
|
I3 |
3In |
5In |
10In |
≤0.1s |
Non-release
|
common
temperature |
I4 |
5In |
10In |
20In |
<0.1s |
Release
|
