Model C70E open top wagon is specially designed to transport coal on China standard railway gauge, this type of railway wagon is mainly used for transport the coal, mining stones, construction material, machinery, equipment, steel, wood and etc. This wagon can be manual loading and discharge, also it can be discharged by the dumpper.
Loading capacity: 70t,
Tare weight: ≤ 24t,
Volume: 80.8 CBMm,
Design speed: 120 km/h.
Model CW1 open top wagon is specially designed to transport coal on the railway gauge of 1067mm in Indonesia, which is discharged by means of wagon tipper. The technical specifications are as following:
Loading capacity: 50t,
Tare weight: ≤ 22t,
Volume: 76m,
Design speed: 80km/h.
Coupler: Model F and FR coupler in compliance with AAR standard.
Brake System: Knorr air brake system in compliance with UIC standard.

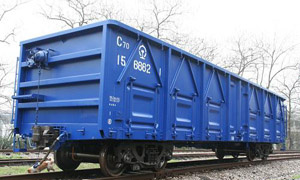

C70 open-top railway wagon
Main structure: This wagon cosists of the car body, bogie coupler and buffer and brake system. The car body, consisting of under frame, side wall, end wall, car door and other components, is full of steel welding structure. The main section steel and material are Q450NQR1 high intensity weatherresistant steel. The bogie is type system K6 or K5. The air braking adopts airbreak system with the main pipe pressure of 500kpa and 600kpa. It mainly consists of 120 type control valve, 305mm-diameter integral spinning sealed type brake cyclinder, ST2-250 bidirectional brake shoe slack adjuster, KZW-A empty and load brake regulator and freight car derailment automatic braking system. Manpower brake system is type hand brake. The coupler and buffer is 17 type interlock or new coupler in E-level steel material, MT-2 buffer and oilness nylon coupler yoke support plate wear plate.
C70A open-top railway wagon
Introduction: This open-top wagon for transporting coal is applicable for Chinese standard track gauge railways, adapted to the task of using tipper to unload. This type of wagon is composed of wagon body, coupler and draft gear, brake and bogie, etc. The car body is of all welded steel structure. The car body consists of under frame, side wall, end wall, door etc. For the main profile steel and plates, anti-corrosion high strengh steel alloy Q450NQR1 is used. 2 sets of wagons can compose a group through traction bar device, which can be interchanged with Type 16 or Type 17 interlocked coupler. The traction bar device also can be changed to type16 or type 17 interloacked coupler. MT-3 type buffer is used. Brake device includes 305mm brake cylinder with integrated flow spinning seal, type 120 control valve, type ST2-250 double-direction automatic slack adjuster, type KZW-A bare/heavy car automatic adjuster, compacting fast-installed hose connector and type NSW hand brake. Type K6 bogie is used.
Qingdao RuiLan Trading Co., Ltd is specialized in Railway bogie casting parts, like bogie18-100 to Russia, bogie1750 to Ukraine, both bogie18-100 and bogie1750 with certificate can make sure products enter into your market.
Bogie18-578, bogie18-194 and bogie 18-7020 will be ok soon.
We have been cooperated with many big companies and manufactures in Russia and Ukraine. Our experienced engineers offer a wealth of design and application expertise. We can offer you more than 20 years of experience in designing and manufacturing to satisfy your particular needs. Our company has advanced equipment, professional staff. Our raily way parts productions obtained CRCC certification, AAR, Ukrsepro and ISO9001: 2000 quality system certification, which guarantees high quality railway products for domestic and foreign manufactures.
Our International trade department is responsible for the product export, and undertakes the train design, manufacture, maintenance, and production of major cast steel parts and bogie parts.
"Quality Products, Excellent Service, Competitive Prices and Prompt Delivery" is our principle. We have built up good relationships with customers all over the world. We are advancing into global market drastically. Additionally, we have put considerable efforts on development and design, which can enable us to better satisfy customers' changing needs in a positive manner.
We are pleased to be your stable railway parts, components any products such as casting parts, bogies we can make them according to your drawings.
We sincerely welcome you to visit our company for cooperation and mutual development.
