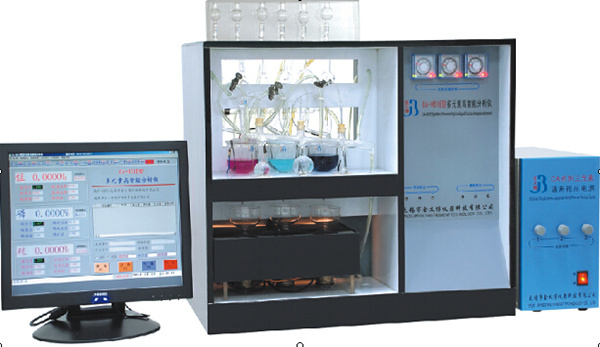

Ca-H51e Type Multi-Elements High Intelligent Function Analysis Instrumen

Product Specifications

Prod Model:	CA-H51E
Markets:	South America,Southeast Asia,Africa,Mid East,Eastern Asia

Product Description

1.Application fields


1).Testing the mass fraction of silica, manganese, phosphorus, chromium, nickel, titanium, molybdenum, tungsten, vanadium, copper, magnesium and rare earth elements, etc. of steel, iron and high, medium alloy steel (such as: stainless steel, heat resistant steel, alloy steel, high speed steel) and alloy cast iron.
2). Testing the mass fraction ofiron, copper, silica, magnesium and titanium elements, etc..

2.Main features

1.The intensive design, built-in embedded microcontroller, external computer control and data processing system analyze elements automatically.
2. Internal tantalum wire heating, electronic control temperature, color temperature setting.
3. High precision liquid separating device adopts the pneumatic liquid separation system which lower outlet connects fine silicon tube. Liquid level positioning is accuracy and the liquid is clean. The liquid is of high precision.
4. Intelligent, automatic instrument of all parameters will be optimized, set and controlled by computer.
5. According to the different material, the design methods of chemical analysis differ, which helping the use of instrument.
6. Humanistic analysis software, convenient and flexible and it can cofigurate according to the user's actual need.
a.Instrument control system is based on the WINDOWS special operating software and it is equipped with computer operation and a high performance of touch control screen.
b.Using the navigation operation and it does not need to professional knowledge to use.
c.Analysis of real time display. Analysis parameter automatic adjustment, ensure the whole analysis process to be completed in the best condition.
d.Single point correction, multiple regression correction, regression curve can be optimized for operation, and can store a number of curves, real-time inquiry and call.
e.It has a powerful database functions for real-time query, statistics, report output. It can network with the front furnace number system to transmit the data automatically.

3.Technical parameter


Elements	Measurement  range	Elements	Measurement  range	Elements	Measurement range
RE	0.001%-0.200%	P	0.005%-0.800%	Ti	0.010%-2.50%
Mg	0.010%-1.500%	W	0.050%-22.00%	V	0.005%-1.00%
Si	0.030%-13.00%	Cr	0.005%-32.00%	Cu	0.010%-5.00%
Mn	0.010%-30.00%	Ni	0.030%-50.00%	Mo	0.0025%-10.00%
Fe	0.100%-1.500%
