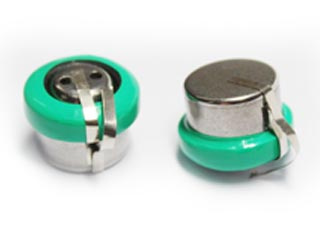

Carbon Monoxide Co Sensor Element

Name: Carbon Monoxide Co Sensor Element
Brand: China-Manufacturer-Directory.com
SKU: 774357685
Availability: InStock
Rating: 4.9 (45 reviews)

Supplier:	Shenzhen Safeeling Science & Technology Co., Ltd
Price:	US $ 0.1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	5A-ME4CO

Product Description

1-, Low consumption, high sensitivity, wide range and high precision electrochemical sensor.
2-, Widely used in civilian carbon monoxide detection and fire detection.
3-, Meets the standards of UL2034 and EN50291.
4-, Strong ability of anti-interference.
5-, Strong reliability on repeatability and stability.

Working principle	Dual electrode electrochemical
Detection gas	Carbon Monoxide
Measurement Range	0~1000 ppm
Max detecting concentration	2000 ppm
Sensitivity	3-6na/6-9na/9-12na
Resolution ratio	1PPM
Temperature range	Continuous -10ºC-50ºC; Intermittent -20ºC~60ºC
Humidity range	Continuous 15%~95%RH; Intermittent 0%~99%RH
Response time	T90≤60s
Recovery time	<=60S( In clean air)
Stability	<5%/Year
Particular voltage:	No requirement(circuit characteristic)
Recommended load	200Ω according to different circuit
Repeatbility	<2%
Output Linearity	Linear
Zero drift	<=5%(-10ºC-40ºC)
Long term drift	<5%/Year
Pressure range	1 atm±10%
Anticipated using life	>3 years at normal usage

Note: the data above obtained by new sensor testing under the condition of 20ºC, 50%RH,
101Kpa and the standard electrochemical test circuit .

Introduction

Established in 2012 and headquartered in Shiyan town Shenzhen China, Shenzhen Safeeling Science & Technology Co., Ltd is a leading manufacturer of gas sensor, smoke sensor, CO sensor, PIR, GSM Alarm Kits, Remote control relay switch, etc. Safeeling has more than 50 standard models which are famous all over the world especially in Europe, America, Russia, South America and South Africa markets because of our good quality, competitive price, short lead-time and very considerate after sales service.

Some years ago, Safeeling worked with some Doctors of Philosophy, Masters, senior engineers for having developed in this industry's core technology, Safeeling's mother company located in Xili town since 2007 with National Pioneer Core technology of various gas sensor elements, she is one of few companies worldwide who has owned this technology, with sales volume over USD 6 million last year.

Honesty, Responsibility and Quality are always Safeeling business basic rules. We pools together a number of experienced more than 20 years research and develop engineers for ODM/OEM solutions.

Meanwhile, we can ensure the defective rate within 0.1% according to USA standard, all our products are produced by "5A" standard having gained consistent approval from both domestic and foreign clients.

As a professional alarm solutions provider, Safeeling is always looking forwards to being your best partner, designer and supplier, you will be rewarded by more than your expectations, many thanks!
