1-, Low consumption, heating current within 80mA.
2-, small size, high sensitivity especial for CH4.
3-, Long life, high stability.
4-, Simple application circuit.
5-, Widely used in house gas alarm, car gas alarm, common portable gas alarm, flammable heating water gas alarm, burning equipment gas alarm, and so on.

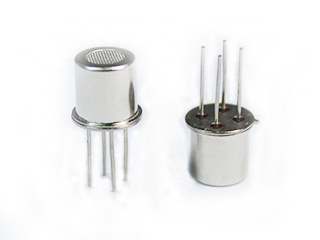

Model | 5A-MP4 |
Sensor Type | Semiconductor gas sensor |
Standard Encapsulation | Metal cap |
Target Gas | CH4, Nature gas, Butane |
Temperature range | Usage:-10ºC~+55ºC |
Storage:-20ºC~+75ºC |
Humidity range | <= 95RH |
Detection range | 300~10000ppm |
Standard Circuit Conditions | Loop Voltage | Vc | 5V~24VDC |
Heater Voltage | VH | 5V±0.1VDC/AC |
Load Resistance | RL | Adjustable (1K-20K) |
Sensor character under standard test conditions | Heater Resistance | RH | 85Ω±15Ω (room tem.) |
Heater consumption | PH | <=400mW,(VH=5V,IH 80mA) |
Sensitivity | LS(Rs) | α≤0.6 ,RS(3000ppm)/RS(air) |
Sensitive resistance | RS | RS=(VC/VRL-1)*RL |
Concentration Slope | α | ≤0.6(R5000ppm/R1000ppm CH4) |
| Respond time TX | ≤10S |
| Revovery time TH | ≤30S |
Standard test conditions | Temp. Humidity | 20±2ºC,65±5%RH |
Standard test circuit | VH= VC=5V±0.1VDC; RL=4.7K±1% |
Preheat time | >= 12 hours |
Calculation method of the sensor power:Ps= VC* VC* RS/(RS+ RL)* (RS+ RL)
