Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturing Process: |
Packaging |
| Ingredient: |
Beverage |
Product Description

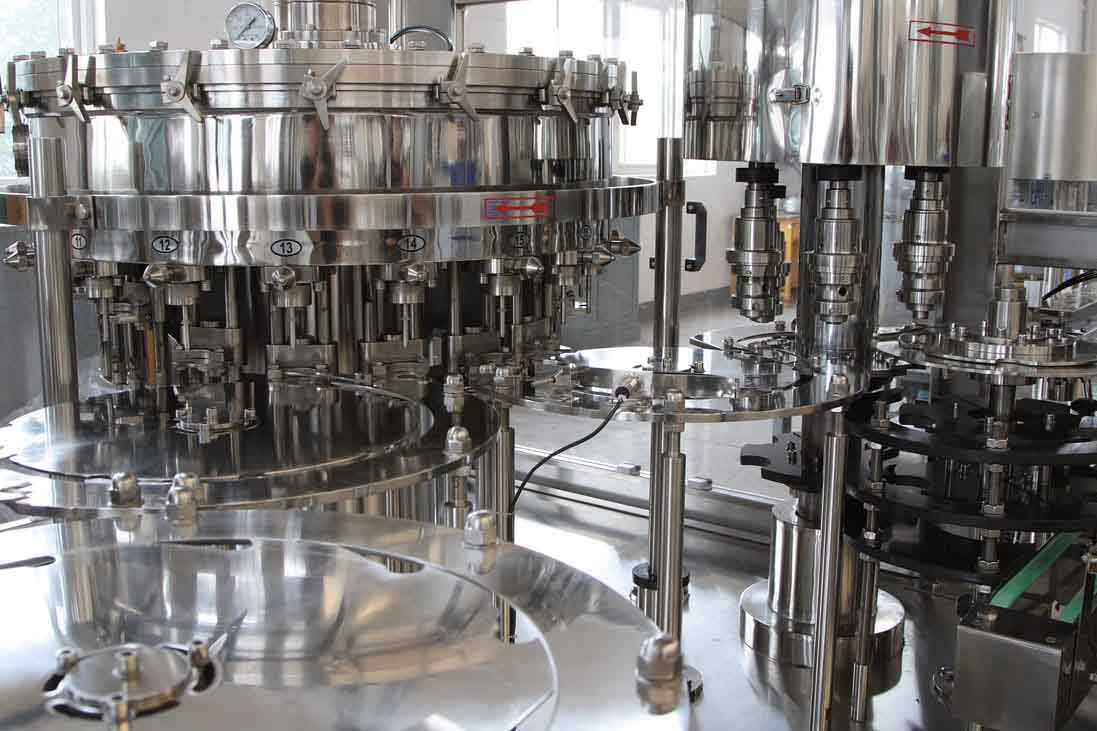

The carbonated beverage filling Mono-bloc is used to bottle carbonated beverage such as Coca cola, Pepsi, Sprite, soda water and so on. This machine is integrated with washing, filling and capping in one machine. It takes bottle handling technology, which makes changing different size bottle more easily. It can do the bottles from size 200ml to 2000ml. And little spares are need when changing bottles. We suggest users to take same specification bottles, especially the same bottle neck. Our mono-bloc uses high quality stainless steel 304, which makes sure the quality of the products. The washing we take reversing bottle methods. It has so many washing heads which will spray the inside of the bottle after the bottle is reversed. After washing there will approximate 2 seconds dropping water. The filling technology is named "Counter pressure filling", it means when bottle enter into the filler, the filling tank will firstly inputting enough pressure to the bottle. Just after the pressure in tank is same as the bottle, filling begins. Capping we use magnetic capper. And capping power can be adjusted. We equip the machine with "No-bottle, No-Cap" system. If there is no bottle, the caps feeding will be stopped. The capper feeder is stand beside the mono-bloc, which is parallel to the machine.
Above all carbonated beverage mono-bloc is high quality and is just the machine you are looking for!
Model:
| DCGF 16-12-6
| DCGF18-18-6
| DCGF24-24-8
| DCGF32-32-12
| DCGF40-40-12
|
capacity (500ml based)
| 2500BPH
| 4500BPH
| 6000BPH
| 8000BPH
| 12000BPH
|
Suitable bottle :
| Round bottle or square bottle
|
PET bottle: (mm)
| (Bottle Diameter):φ50-.φ 110mm (Height):150 -340mm
|
Suitable cap specification
| PE screw cap
|
filling precision:
| ≤± 5mm
|
filling pressure:(Mpa)
| ≤0.4Mpa
|
Machine power
| 4.4
| 5.2
| 6.2
| 6.8
| 8
|
Machine size:(mm)
| 2250*1650*2250
| 2600*1965*2250
| 2980*2200*2250
| 3880*2200*2250
| 4000*2650*2500
|
weight: (kg)
| 2800
| 3500
| 4500
| 5500
| 6500
|
We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry and automatic blow molding machine in China.
For beverage machine, our Main products including:
The capacity of 5000-- 40000 BPH for HOT FILLING, MID-TEMP FILLING, ASEPTIC COLD FILLING LINES.
The capacity of 5000-- 40000 BPH for MINERAL WATER AND PURIFIED WATER PRODUCING LINE.
The capacity of 5000 -- 36000 BPH for CARBONATED BEVERAGE PRODUCTING LINE.
The capacity of 300 -- 2000 BPH for 3 gallon OR 5 gallon BARREL FILLING PRODUCTING LINE.
The capacity of 8000 BPH for the volume of 200ml to 500ml in MILK PACKAGING.
All kinds of WATER TREARMENT EQUIPMENT.
PET perform INJECT and BLOWING-STRETCHING MACHINE.
Mould plastics machine
Turn-key projects
Flat and tube UHT device, and CIP system.
All the products are sold well in every province and city of the whole country and also exported to several countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
