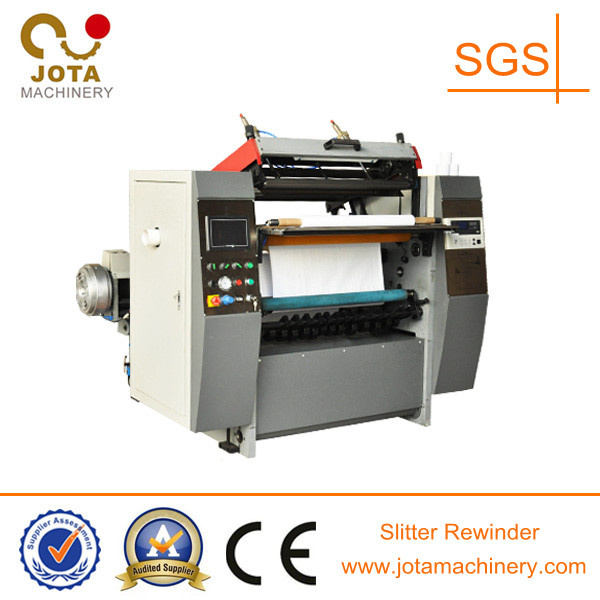

Carbonless Paper Roll Slitting Rewinding Machine
--Slitting Machine
--Emerson PLC
--Touch Screen Control
--Auto Tension Control System
--Meter Counter
--This Slitting Machine is used for slitting fax paper, cash register paper, film, self-adhesive trade marks, and other paper less than 250GSM. It is advanced equipment at home and abroad.
--This Slitting Machine adopts sureface rewinding system to slit the small roll fax paper or cash register paper.
--We can provide the rewinding shaft in diameter of 12.7mm, 25.4mm and 50.8mm. Some other size is subject to the clients demand.
Max. Unwinding Width 900mm
Max. Unwinding Diameter 1000mm
Max. Rewinding Diameter 160mm
Max. Slitting Speed 150m/min
Frequency inverter motor 2.2Kw
|
Model Type |
JT-SLT-900 |
|
Max. Parent Web Width |
900mm |
|
Max. Parent Web Diameter |
1000mm |
|
Max. Rewinding Diameter |
160mm |
|
Min. SlittingWidth |
28mm |
|
Max. Speed |
150m/min |
|
Unwinding Shaft |
3" Air Expanding Shaft |
|
Rewinding Shaft |
0.5", 1", 1.5" 2" are available(or as request) |
|
Voltage |
three-phase four-wire, 380V,50HZ |
|
Power |
2.2kw |
|
Weight |
1600kg |
|
Overall Dimensions(LxWxH) |
2000x1700x1500mm |
Focusing on the Environment and Labor Safety, Jota Machinery Industrial (Rui'an) Co. Ltd is specialized in the Paper Slitter Rewinder, Paper Sheeter, Coating and Laminaiton as well as the complete range of other converting equipment with Innovance and high Technology.
