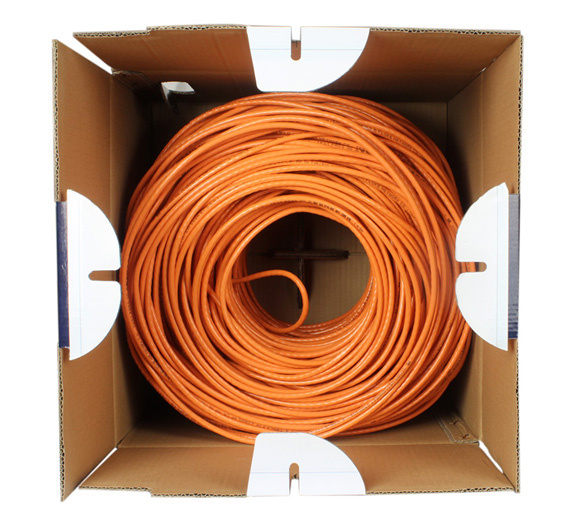

CAT6 LAN Cable UTP/FTP/STP/SFTP Network Communication Cable

Name: CAT6 LAN Cable UTP/FTP/STP/SFTP Network Communication Cable
Brand: china-manufacturer-directory.com
SKU: 760692635
Availability: InStock
Rating: 4.7 (150 reviews)

Supplier:	Shenzhen Taiyue Communication Cable Co., Ltd.
Price:	US $ 18.8-68.42/Box
Min Order:	100/Box
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	cat6 cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White, Gray, Black, Yellow, Brown
Insulation:	PE(HDPE)
Jacket:	PVC(Lszh)
Nominal Outer Diameter:	5.2mm
Operating Temperature Installation:	: 0~50/Operation: -30~+75
Brand Name:	OEM
Number Of Conductors:	8
Usage:	Computer
Type:	Wired
Support Network:	3G
Information Content:	Data
Certification:	ISO
Condition:	New

Product Description

Cat6 ethernet cable
CONSTRUCTION:
1. Conductor: Solid Bare Copper
2. AWG: 23
3. Conductor Dia(mm): 0.51
4. Insulation: PE
5. Average Thickness(mm): 0.21
6. Min. Point Thickness(mm): 0.17
7. Insulation Dia(± 0.02mm): 0.91

8. Twisting Lay Length(± 20mm): 140
9. Jacket: PVC
10. Average Thickness(± 0.5mm)
11. Min. Point Thickness: 0.43mm
12. Outer Dia(± 0.2MM): 5.0
13. Rip Cord: Yes
14. Weight(kg/km): 32

APPLICATION:
100Base-TX, 100Base-T4, 100VG-AnyLAN, 1000Base-T, (Gigabit Ethernet), ATM

Frequency MHz	Impedance ohm	RL	Attenuation dB/100m	Next Db/100m	ELFEXT dB/100m	PS NEXT Db/100m	PS FLFEXT Db/100M	Propagation speed m/s
Frequency MHz	Impedance ohm	db	Attenuation dB/100m	Next Db/100m	ELFEXT dB/100m	PS NEXT Db/100m	PS FLFEXT Db/100M	Propagation speed m/s
1	100± 15	20	2	65.3	63.8	62.3	60.8	0.65C
4		23	4.1	56.3	51.7	53.3	48.7
8		25	5.8	51.8	45.7	48.8	42.7
10		25	6.5	50.3	43.8	47.3	40.8
16		25	8.2	47.3	39.7	44.2	36.7
20		25	9.3	48.5	37.7	42.8	34.7
25		24	10.4	44.3	35.8	41.3	32.8
31.25		24	11.6	42.9	33.9	39.9	30.9
62.5		22	17	38.4	27.8	35.4	24.8
100		20	22	35.3	23.8	32.3	20.8
155	10± 18	19	28.1	33	20	29	17
200	10± 18	19	32.4	31	18	28	15
310	100± 22	18	41.8	28	14	25	11
350	100± 22	17	44.9	27	13	24	10
