Product Specifications
Prod Model: |

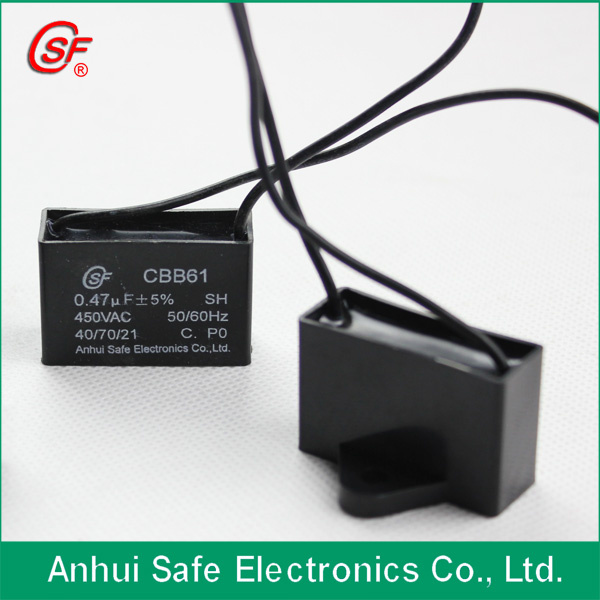

CBB61 capacitor |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
AC Capacitor Capacitance Tolerance: |
+/-5% |
AC Capacitor Security Level: |
P0/P2 |
AC Capacitor Standard: |
IEC60252-1:2001 |
Operating Life: |
10000h (Class B),3000h (Class C) 30000h(Class a) |
Operating Frequency: |
50Hz/60Hz |
AC Capacitor Filling: |
Epoxy Resin |
AC Capacitor Can: |
Plastic Can |
AC Capacitor Materials: |
Metallized Film |
AC Capacitor Certification: |
CE,UL,RoHS,CQC |
Manufacturer: |
Anhui Safe Electronics Co.,Ltd. |
Type: |
Polypropylene Capacitor |
Package Type: |
Surface Mount |
Application: |
AC / Motor |
Capacitance: |
0.8UF-120UF |
Product Description
CBB61 Capacitor features
* Capacitance Range: 0.8UF-120UF
* Capacitance range: ± 5%
* Rated Voltage: 200VAC-660VAC
Technical Data:
Capacitance range: 0.8uF~120uF
CapacitanceTolerance: ± 5%~± 10% or according to customers' requests.
Rated Voltage: 200VAC, 250VAC, 370VAC, 400VAC, 440VAC, 450VAC, 500VAC, 550VAC, 600VAC, 630VAC, 660VAC
Rated frequency: 50Hz/60Hz
Operating Temperature: -40° C~+70° C/-40° C~+85° C
Class of safety protection: P0, P2
Testing voltage: T-T: 2.0Un/60S
Insulation resistance: > =3000s
Tangent of loss angle of a capacitor
Tanσ ≤ 0.0020 (100Hz)
Life expectancy: 3000h (Class C) or 10000h (Class B) or 30000h(A)
Size: According to chart or users require
Rated voltage(VAC(VAC) |
Nominal capacitance (µF) |
Size(mm) |
D |
W |
H |
200,250,370,
400,440,450,
600,660 |
0.6,0.8,1,1.2,1.5,2,2.5,
3,3.5,4,4.5,5,
6,6.5,7,8,10
12,14,16,^ |
31,37,38,
47,48,58 |
14,17,18,21,
22,26,34 |
24,27,28,29,31,
34,38,40,44,52 |
