Zhuhai City Deyuan Import & Export Co., Ltd. >> CCS, Ec, Dnv Approval 15ppm Bilge Water Alarm

CCS, Ec, Dnv Approval 15ppm Bilge Water Alarm

Name: CCS, Ec, Dnv Approval 15ppm Bilge Water Alarm
Brand: china-manufacturer-directory.com
SKU: 709554385
Availability: InStock
Rating: 5 (26 reviews)

Supplier:	Zhuhai City Deyuan Import & Export Co., Ltd.
Price:	US $ 100/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	DY01-07
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	CCS, Ec
Delivery Time:	in Stock
Pullution Sources:	Water Pollution Control

Product Description

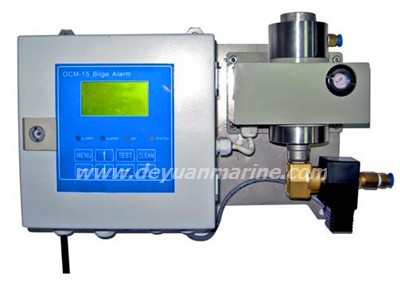

CCS,EC,DNV Approval 15ppm Bilge Water Alarm

Features:

(1)Applying the most advanced multi-band infrared measuring technique and the micro-processing technology, fast response with high-accuracy-measurement;

(2)The overall use of EMI suppression design to overcome the environmental impact on equipment,and improve system stability and equipment reliability;

(3)Real-time display of oil concentration and working state of the system.

(4)Real-time recording of the alarm status and automatically store data,historical data at any time to print;

(5)Measuring room to facilitate maintence and cleaning,simple operation;

(6)With the monitoring of operation condition,automatic control over discharge of sewage to function when equipment in failure,maintence or replacement

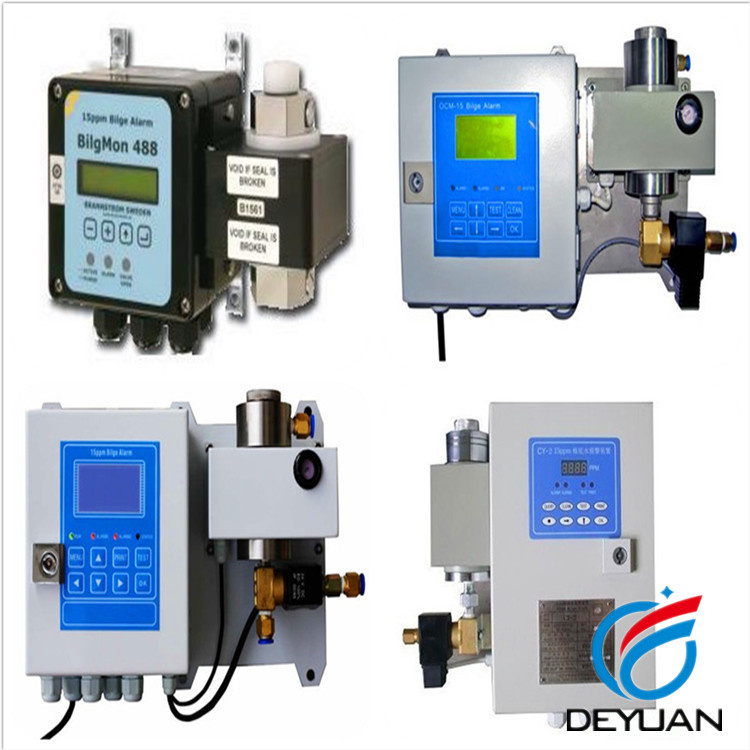

(7)The 15 ppm Bilge Alarm type BilgMon 488 is approved and certified in accordance with the latest IMO resolution MEPC107(49) .

Specification:

Type:	OCM-15
Range:	0 - 30 mg/l can exceed to 50mg/l
Accuracy	Better than 5mg/l
Linearity	better than 2 %
Display	LCD display
Power Supply:	220VAC/110VAC ± 10%
Consumption:	10 VA
Alarm Points:	1-15ppm
Alarm Points works set:	15ppm
Alarm 1 delay	0-10 second.
Alarm 2 delay	0-10 second
Alarm output	Two way relays output
Alarm relay output contact value	5A, 250VAC
Alarm relay output feedback signal test	Two way working status contact testing
Alarm Indication:	Red LED's
Output Signal:	4 - 20 mA, reversible Ri < 500 Ω
Sample Water Pressure:	0.01 -6 bar
Sample Flow:	approx. 0.2 - 4 l/min depend on pressure
Ambient Temperature:	0 to + 55° C
Sample Water Temperature:	+ 1 to + 80° C
Size (over all):	360 mm W x 240 mm H x 105 mm D
Degree of Protection:	IP 45
Weight:	8kg
Pipe Connections:	R 1/4" Female

Contact :

Anne
Mobile:+86-13427793868

Zhuhai City Deyuan Import&Export Co., Ltd is a subsidiary company of China deyuan marine fitting Co., Ltd, .

We are the leading and trusted supplier of marine equipment and offshore equipment in the marine market of China.

We do export business globally in the market for many years and export lots of marine equipment to different countries. Our target is to be the best alternative for the customer's bottom line in the long perspective and always put good quality, good service in the first place. Because of that, we win high appreciation from our customers and have high reputation in this field

Our products include:

Marine life saving equipment: (immersion suit, life boat, inflatable boat, life raft, life jacket, life jacket light etc)

Marine fire fighting equipment: (FIFI system, SCBA, EEBD, fire suit, heat insulation suit, fire extinguisher etc)

Environment Protection Equipment: (Oily water separator, sewage treatment plant, fresh water generator, UV-sterilizer etc)

Marine Mooring Equipment: (marine anchor, anchor chain etc)

Marine Power&Propulsion Equipment: (Tunnel thruster, marine propeller, marine shaft etc)

Marine Deck Equipment: (Marine Windlass, Marine Winch, Marine Davit)

Marine Diesel engine: (CUMMINS Diesel engine, Weichai diesel engine, Deutz diesel engine)

These products are SOLAS compliant, approved by different Classification Society, such as ABS, BV, KRNK, GL, LR, RINA, CCS, DNV, IRS. Pls contact us for more information or just send yr inquiry to us.

We are very confident that our ethusiasam and profession, integrerity will earn your trust.
