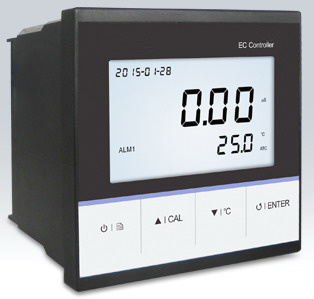

Cct-650 Online Conductivity Controller
Product Specifications
| Prod Model: |
CCT-650 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
CCT-650 Online Conductivity ControllerEconomical online conductivity controller, 3 points calibration, 4 to 20mA output signal. The meter is suitable for monitoring the conductivity and TDS of the water quality.Features:？ Economical online conductivity controller with TDS measurement mode.？ 1 to 3 points calibration with automatic calibration solution recognition.？ Selectable cell constants, temperature coefficient and TDS conversion factors.？ Automatic Temperature Compensation ensures accurate reading.？ Low and high alarm limits can be set by user and automatically activate an external device.？ 4 to 20mA output signal meets industrial requirements.？ Manual temperature calibration improves the measurement accuracy of meter.？ Selectable temperature unit (°C or °F) for different application requirements.？ System menu allows setting the 9 parameters, including the calibration points, cell constants, alarm limits, hysteresis value, etc.？ Reset feature automatically resumes all settings back to factory default options.Specification:| Model | CCT-650 |
| Conductivity |
| Range | 0~20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm |
| Accuracy | ±1% F.S |
| Resolution | 0.01, 0.1, 1 |
| Calibration Points | 1 to 3 points |
| Calibration Solutions | 84uS/cm, 1413uS/cm, 12.88mS/cm, 111.8mS/cm |
| TDS |
| Range | 0~10ppt (Max. 20ppt, depending on factor setting) |
| Accuracy | ±1% F.S |
| TDS Factor | 0.1~1.0 (Default 0.5) |
| Temperature |
| Range | 0~100°C, 32~212°F |
| Accuracy | ±1°C |
| Resolution | 0.1°C |
| Communication |
| Transmitter Function | 4~20mA, Load 500Ω |
| Low and high alarm limits | 0.02uS/cm~20.0mS/cm, Selectable |
| Communication Interface | RS485 |
| Others |
| Temperature Compensation | 0~100°C, 32~212°F, Automatic |
| Temperature Coefficient | 0.0~10.0%/°C |
| Cell Constant | K=0.1, 1, 10 |
| Normalization Temperature | 25°C |
| Environmental Conditions | 0~60°C, 32~140°F |
| Power Requirements | DC24V |
| Dimensions | 96(L)×96(W)×75(H)mm |
| Weight | 350g |
| Order information |
| Accessories | IE-50MT Industrial Conductivity Electrode |
| Optional Accessories |
| Order Code | Description |
| IE-50LT Conductivity Electrode | For the pure water |
| IE-50MT Conductivity Electrode | For the general liquids |
| IE-50HT Conductivity Electrode | For the high conductivity liquids |
| Conductivity Calibration Solutions | 84µS, 1413µS, 12.88mS, 111.8mS |
| Packaging |
| Dimensions | 150(L)×120(W)×90(H)mm |
| Weight | 0.9kg |
