Doc-680 Online Dissolved Oxygen Controller
Product Specifications
| Prod Model: |
DOC-680 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

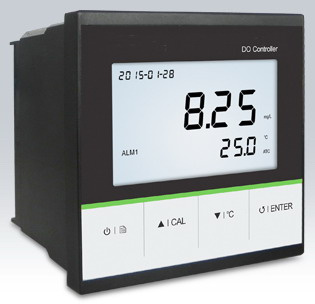

DOC-680 Online Dissolved Oxygen Controller
Economical online Dissolved Oxygen controller, 1 or 2 points calibration, 4 to 20mA output signal. The meter is suitable for monitoring the oxygen saturation levels or % saturation in the water.Features:？ Economical online Dissolved Oxygen controller.？ 1 or 2 points calibration using the air-saturated water and zero oxygen solution.？ Manual salinity and barometric pressure compensation improve the accuracy of meter.？ Automatic Temperature Compensation ensures accurate reading.？ Low and high alarm limits can be set by user and automatically activate an external device.？ 4 to 20mA output signal meets industrial requirements.？ Manual temperature calibration improves the measurement accuracy of meter.？ Selectable temperature unit (°C or °F) for different application requirements.？ System menu allows setting the 10 parameters, including the calibration points, concentrationunits, alarm limits, hysteresis value, etc.？ Reset feature automatically resumes all settings back to factory default options.Specification:| Model | DOC-680 |
| Dissolved Oxygen |
| Range | 0.0~20.0mg/L |
| Accuracy | ±0.5mg/L |
| Resolution | 0.1mg/L |
| % Saturation of Oxygen |
| Range | 0.0~200.0% |
| Accuracy | ±10% F.S |
| Resolution | 0.1 |
| Communication |
| Transmitter Function | 4~20mA, Load 500Ω |
| Low and high alarm limits | 1.00mg/L~18.00mg/L, Selectable |
| Communication Interface | RS485 |
| Others |
| Temperature Compensation | 0~40°C, 32~104°F, Automatic |
| Salinity Correction | 0~35g/L |
| Barometric Pressure Correction | 60.0~112.5kPa, 450~850mmHg |
| Power Requirements | DC24V |
| Dimensions | 96(L)×96(W)×75(H)mm |
| Weight | 350g |
| Order information |
| Accessories | IE-80T Industrial Dissolved Oxygen Probe |
| DO Filling Solution |
| DO Cap Membrane |
| Optional Accessories |
| Order Code | Description |
| IE-80T Dissolved Oxygen Probe | Polarographic sensor |
| DO Filling Solution | 500mL |
| DO Cap Membrane | Special-purpose spare |
| Packaging |
| Dimensions | 150(L)×120(W)×90(H)mm |
| Weight | 0.9kg |
