Product Specifications
| Prod Model: |
ELP-DVR9104-106LP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Monitoring System |
Product Description

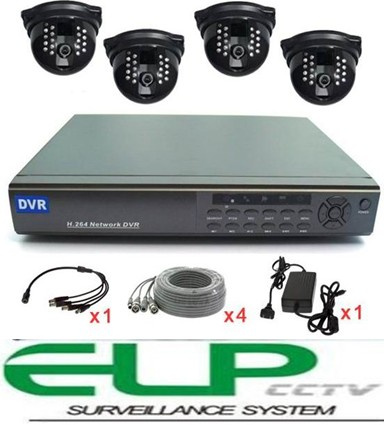

The 4CH home security alarm system CCTV system ELP-DVR9104-106LP It includes these products:
1). 1 X H. 264 realtime standalone DVR and 500G hard disk(DVR9104).
2). 4 X 1/4 Color Sharp CCD, 420TV Line indoor IR dome Camera(ELP-106LP). IR distance: 25M
3). 4 X 20M CCTV Video power cable.
4). 1 X 4CH power adaptor for 4 CCTV Cameras.
About the DVR specification:
1. Video input/Output: 4CH BNC/1CH BNC
Audio Input/Output: 4CH RCA/1CH RCA
VGA Output: HD VGA output(1280X1024, 1440X990)
2. Preview resolution: PAL 704X576 NTSC: 704X480
3. Playback channel 1/4CH
4. Maximum Record frame rate:
--D1 704X576 100FPS/PAL D1 704X480 120FPS/NTSC
--HD1 704x288 100FPS/PAL HD1 704X240 120FPS/NTSC
--CIF 352X288 100FPS/PAL CIF 352X240 120FPS/NTSC
5. Backup Device: USB2.0 Flash or network, DVD, CD
6. PTZ Control: Support,
7. Network function: TCP/IP, PPPoE, DHCP, DDNS, NTP, UPNP, Email, FTP
8. Remote Preview: IE, CMS
9. Language: Simplified Chinese, Traditional Chinese, English, Farsi, Finnish, French, German, Greek, Italian, Hungarian, Japanese, Polish, Portuguese, Russia, Spanish, Thai, Turkish, Vietnamese, Ukrainian, Romanian, Brazilian
10. No alarm function
About the camera specification:
* Image Sensor: 1/4-Inch color Sharp CCD.
* Sync Systme: Internal.
* Resolution: 420 TV Lines.
* S/N Ratio: 48dB (AGC OFF).
* Minimum Illumination: 0 Lux/F1.2(IR on).
* IR Range: 25M. 24 IR lED
* White Balance: ATW / AWC switchable.
* Gain Control: AGC ON / OFF switchable.
* Electronic Shutter: NTSC: 1/60~1/120, 000 sec/PAL: 1/50~1/120, 000sec.
* B. L. C. Function: ON/OFF switchable.
* Video Output: Composite 1.0V p-p at 75 ohm.
* Gamma Correction: 0.45.
* Lens Mount: 3.6mm/6mm(Optional).
* Operation Temperature: -10 degree TO 50 degree.
* Operational Humidity: Within 85%RH.
* Supplied Voltage: DC12V± 1V /500mA.
