Product Specifications
| Prod Model: |
BE-8116V8ID8RI42 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Camera Name: |
CCTV IR Dome Camera |
| TV Line Of CCTV Camera: |
420tvl/600tvl |
| Dome Camera: |
Indoor |
| Bullet Camera: |
Outdoor |
| DVR: |
16CH DVR |
| CCD: |
Sharp/ Sony |
| IR Distance For Dome Camera: |
20m |
| IR Distance For Bullet Camera: |
40m |
| DVR Model: |
Be-8116 |
| Weight: |
24kg |
| Technology: |
Infrared |
| Application: |
Sentinel Surveillance |
| Kind: |
Autofocus Lens |
| Feature: |
High Definition |
| Sensor: |
CCD |
| Type: |
Security System |
| Horizontal Resolution: |
420tvl/600tvl |
Product Description

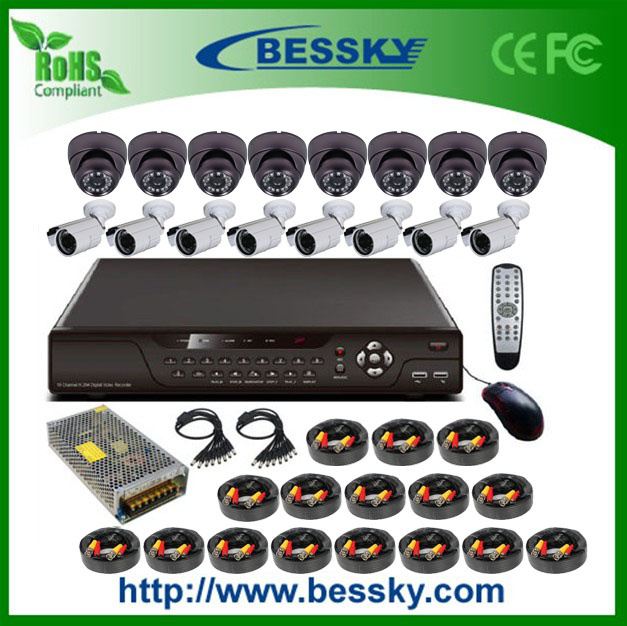

CCTV security system kit(BE-8116V8ID8RI42)
BE-8116V8ID8RI42 contains:
1) 1× 16CH H. 264 DVR (model: BE-8116V)
2) 8× IR /Dome Camera(8PCS BE-DID42)
8x IR/ Bullet Camera( 8PCS BE-IRI42)
3) 16× 20m Cable
4) 1× 12V/20A Power Adaptor
5) 2x 1-in and 8-output line for CCD cameras
|
Model:BE-8116V8ID8RI |
|
BE-8116V8ID8RI42 |
DVR |
|
1PCS BE-8116V |
|
a. 16CH DVR, Compression format:H.264,With VGA output,BNC 16CH In/1CH Out,1xUSB Mouse,1x IR Remote Controller |
|
b. Display Frame Rate:PAL:704*576;NTSC:704*480 |
c. Record Frame Rate:NTSC : 60/704x480; 120/704x240; 240/352x240;
PAL : 50/704x576; 100/704x288; 200/352x288 |
|
d. VGA Output: 800*600/60HZ,1024*768/HZ,1280*1024/HZ |
|
e. Supports USB2.0 mouse, remote controller, operating;support 2PCS up to 2T SATA HDD;Support Email alarm;Mobile phone surveillance (Win CE/Symbian/iPhone/Blackberry);Support PTZ Control; |
|
f. Network:1 RJ-45 10/100Mbps Ethernet connector |
|
g. DVR can be connected to PC monitor,TV set and LCD Monitor. |
|
h. Support Multi-language OSD |
|
i. Audio: 4CH In /1CH Out |
|
|
|
with cameras BE-DID42&BE-IRI42 |
|
BE-DID42 |
8PCS BE-DID42(1/4" Sharp CCD,420TVL,Vandalproof IR Dome,24 pcs 5mm IR-LED,3.6 mm Lens,IR Distance 20M) |
|
BE-IRI42 |
8PCS BE-IRI42(1/3" Sony CCD,420TVL,23 pcs 5mm IR-LED,3.6 mm Lens,IR Distance 20M) |
|
Others |
1PCS 12V/20A Power adaptor with 2PCS 1-in and 8-output cable for CCD cameras |
|
16PCS 20M 2 in 1 (Power+Video) extension cable with BNC connector. |
|
|
|
|
BE-8116V8ID8RI42L |
with cameras BE-DID42L&BE-IRI42L |
|
BE-DID42L |
8PCS BE-DID42L(1/4" Sharp CCD,420TVL,Vandalproof IR Dome,24 pcs 5mm IR-LED,3.6 mm Lens,IR Distance 20M) |
|
BE-IRI42L |
8PCS BE-IRI42L(1/4" Sharp CCD,420TVL,23 pcs 5mm IR-LED,3.6 mm Lens,IR Distance 40M) |
|
Others |
1PCS 12V/20A Power adaptor with 2PCS 1-in and 8-output cable for CCD cameras |
|
16PCS 20M 2 in 1 (Power+Video) extension cable with BNC connector. |
|
|
|
|
BE-8116V8ID8RI60 |
with cameras BE-DID60&BE-IRI60 |
|
BE-DID60 |
8PCS BE-DID60(1/3" Sony CCD,600TVL,Vandalproof IR Dome,24 pcs 5mm IR-LED,3.6 mm Lens,IR Distance 20M) |
|
BE-IRI60 |
8PCS BE-IRI60(1/3" Sony CCD,600TVL,23 pcs 5mm IR-LED,3.6 mm Lens,IR Distance 40M) |
|
Others |
1PCS 12V/20A Power adaptor with 2PCS 1-in and 8-output cable for CCD cameras |
|
16PCS 20M 2 in 1 (Power+Video) extension cable with BNC connector. |
Established in 2003, Shenzhen Bessky Technology Co., Ltd. is a high-tech enterprise with integration of R&D, manufacture and sales of surveillance equipments, specializing in DVR, CCTV Camera including Dome Camera, Weatherproof Camera, Speed Dome Camera, Box Camera, All in one camera, IP Camera and Wireless Camera and DIY Kit. Our products have been widely applied in banks, power industry, transportation, public security, stores, factories and enterprises, institutions and communities and other fields.
We have strong technical support and qualified professionals. They have advanced technical and interpersonal skills, which guarantee the reliable quality, the improvement and the innovation of our products.
Guided by our principle of " Quality is the first, sincerity is the most ", we work hard to ensure full customer satisfaction. We closely monitor the entire manufacturing process from start to finish. Every product is tested and checked by our in-house technicians for excellent quality. Our products are exported to many countries and regions, including America and Europe. To expand our international market share, we sincerely welcome you to contact us for more information.
Wish our efforts can provide you with the most satisfying service.
