Shenzhen Bessky Technology Co., Ltd. >> HD 960h 4CH Security Systems for Indoor Use (BE-9604H4IBW)

HD 960h 4CH Security Systems for Indoor Use (BE-9604H4IBW)

Name: HD 960h 4CH Security Systems for Indoor Use (BE-9604H4IBW)
Brand: China-Manufacturer-Directory.com
SKU: 722088105
Availability: InStock
Rating: 4.4 (145 reviews)

Supplier:	Shenzhen Bessky Technology Co., Ltd.
Price:	US $ 91.4/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	BE-9604H4IBW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Security Systems:	4CH
IR LED:	24PCS of 5mm IR LED
IR Distance:	20m
Board Lens:	3.6 Mm/F2.0
DVR:	H.264 D1/960h Recording 4CH DVR
HDD:	Support 1PC HDD, 4tb HDD at Max
P2p Cloud Technolog:	Support
Camera:	Plastic Dome Camera
Warranty:	2 Years
Certificate:	CE/FCC/RoHS
Type:	Monitoring System
Application:	All-Round Monitoring
Feature:	Indoor Used
Video Capture System:	Dome Camera
Video Transmission System:	Coaxial-Cable Transmission
Software Function:	Monitoring
Software Usage:	Mobile Phone Monitoring Software
Client Software:	Client Software
Model:	CCTV
Sensor:	CMOS
Technology:	Infrared
Kind:	Fixed Lens
Horizontal Resolution:	420tvl/600tvl/700tvl/800tvl

Product Description

Product name: HD 960H 4CH Security Systems for Indoor use (BE-9604H4IBW)

Easy to Install and Operate
Support Remote Viewing via Internet on PC or Mobile Phone

Item No.:
BE-9604H4IB42 (BE-DIB42 Plastic IR Dome 1/3" Sony CCD,420TVL 24 pcs ¢5mm IR-LED IR Distance 20M 3.6 mm Lens)
BE-9604H4IB60 (BE-DIB60 Plastic IR Dome 1/3" Sony CCD,600TVL 24 pcs ¢5mm IR-LED IR Distance 20M 3.6 mm Lens)
BE-9604H4IB70S (BE-DIB70s Plastic IR Dome 1/3" Sony CCD,700TVL 24 pcs ¢5mm IR-LED IR Distance 20M 3.6 mm Lens)
BE-9604H4IB80M (BE-DIB80M Plastic IR Dome 1/3" CMOS 800TVL 24 pcs ¢5mm IR-LED IR Distance 20M 3.6 mm Lens)

Camera Specification:

IR Dome Camera (BE-DIB Series)

Feature: 1/2.8,1/3,1/4 Sony CCD/CMOS 420-1200TVL(Low Illumination, DWDR, OSD, DNR, PM, MD) IR LED: ¢5X24PCS IR Range:20M Plastic home IR dome camera Built-in 3.6mm/F2.0 Board Lens 2 years warranty




Model No.	BE-DIB70S	BE-DIB80M	BE-DIB60	BE-DIB42
Image Sensor	1/3"Sony	1/3"CMOS	1/3"Sony	1/3"Sony
	ICX811AK CCD	PC3089	ICX639BK CCD	ICX633BK CCD
Resolution	700TVL, Low Illumination, DWDR, OSD, DNR, PM, MD	800TVL	600TVL, Low Illumination, DWDR, OSD, DNR, PM, MD	420TVL
Pixels	P: 976 (H)×582(V)	762 (H)×504(V)	P: 795 (H)×596(V)	P: 500(H)×582(V)
	N : 976 (H)×582 (V)		N: 811 (H)×508 (V)	N: 510(H)×492(V)
TV Standards	PAL/ NTSC
IR LED	24PCS of ¢5mm IR LED
IR Distance	20m
Lens	Built-in 3.6mm/F2.0 Board Lens
Sync System	Internal
Illumination	0.01Lux/F2.0
IR Power On	CDS Auto Control
S/N Ratio	≥65dB (AGC OFF)		≥54dB (AGC OFF)	≥48dB (AGC OFF)
Gamma Correction	0.45
Video Output	Composite Signal (1.0Vp-p, 75Ω)
Scanning System	PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec
Electronic Shutter	Auto: PAL 1/50-1/100,000Sec; NTSC 1/60-1/100,000Sec
Operation Temp	-10°C ~ +50°C, RH: 95% Max
Storage Temp	-20°C ~ +60°C, RH: 95% Max
White Balance	Auto
Power Supply	DC12V
Dimension	¢92 x 64(H) mm
Weight	400g

DVR Feature:

BE-9604H 4CH DVR
Standard H.264 video compression
4CH BNC Video input/1CH BNC output,1CH VGA(1440*900),1CH HDMI(1080P)
4CH RCA Audio input/1CH RCA output
4CH D1 real-time/ 4CH 960H recording ,recording rate adjustable
4CH 960H / 4CH D1 playback simultaneously
Support USB flash driver,Network,movable HDD backup
Support TCP/IP,PPPOE,SMTP,DHCP,DNS,DDNS,NTP,ARSP etc
Support Network,PTZ,USB,mouse,remote control
Support Electronic zoom
Support IPhone,Android view with Cloud Technolog (P2P)
Support remote surveillance up to 10 users simultaneously
CMS software:up to 255 DVR simultaneously
Support 1PC HDD, 4TB HDD at max
Size:260(D)*230(W)*48(H) 12V3A

DVR Specification:

	Model	BE-9604H
System	Main processor	HIS chipset Hi3515A
Display	Display screen	1/4 screen
Video	Video standard	PAL(625 lines,50fps);NTSC(525lines,60fps)
	Monitor quality	Monitor:D1;VGA:1080P ;HDMI:1080P
	Playback quality	Max support 1080P
	Encode capability	4CH D1 real-time/ 4CH 960H
	Decode capability	4CH D1/ 4CH 960H
	Motion detection	Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only)
Audio	Audio compression	G.711A
Record and playback	Record mode	Manual,alarm,motion detection,timing
	Local playback	Support 4CH D1/ 4CH 960H playback synchronously
	Video search	Time,date,event,channel search
Storage and back up	Space occupation	Video:CIF 4~5G/daychannel, D1 16~20G/daychannel; audio:691.2M/day*channel
	Video storage	Local HDD ,Network
	Back up mode	Network backup,USB portable HDD,USB DVD-RW
Interface	Video input	4CH BNC
	Video output	1CH BNC,1CH VGA,1CH HDMI
	Audio input	4CH RCA
	Audio output	1CH RCA
	Network port	RJ45 10M/100M self-adaptive Ethernet port
	PTZ control	1 RS485;support multi kinds of PTZ Protocol
	USB port	2*USB2.0
	HDD port	1 SATA(max support 4TB)
	Wireless port	3G,WIFI(extension via USB port)
CMS	CMS software	Support (up to 255 DVR simultaneously)
other	Tour	Support
	Remote controller	Support
	Working temperature	-20ºC-60ºC
	Working humidity	10%-90%
	Power	12V/3A
	Dimension	260(W) x 45(H) x 234(D)

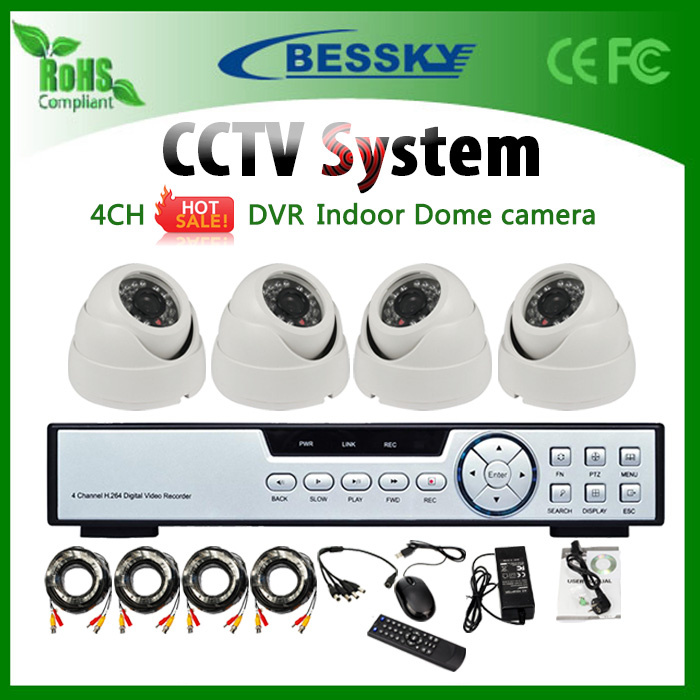

What are included in the DVR Kits?

1.BE-9604H DVR*1
2.Dome camera*4
(White color for option)
3.YQ36W12-01 power adapter
(12V/3A power adaptor for cameras.)*1
4.BE-plug01 power cord*1
5. BE-VP20 20Meter DC+BNC Cable*4
6. BE-1IN4 4way power splitter*1
user manual

Package Weight:8kg
