Shenzhen Bessky Technology Co., Ltd. >> CCTV Surveillance 32 Channel Full D1 Network CCTV DVR (BE-9932HD)

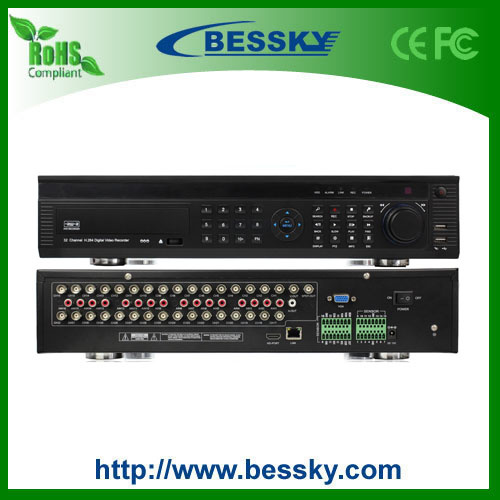

CCTV Surveillance 32 Channel Full D1 Network CCTV DVR (BE-9932HD)

Name: CCTV Surveillance 32 Channel Full D1 Network CCTV DVR (BE-9932HD)
Brand: China-Manufacturer-Directory.com
SKU: 688504612
Availability: InStock
Rating: 4.8 (47 reviews)

Supplier:	Shenzhen Bessky Technology Co., Ltd.
Price:	US $ 275.0-289.0/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	BE-9932HD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Main Processor:	His Chipset Hi3531
Display Screen:	1/4/8/9/16 Screen
Video Input/Output:	32CH BNC BNC/2CH BNC, 1CH VGA, 1CH HDMI
Audio Input/Output:	16/1CH RCA
HDD Port:	4 SATA(Each Max Support 3tb)
Encode Capability:	8CH D1+24CH CIF Real Time(DVR Mode)
Decode Capability:	8CH D1+8CH CIF Real Time(DVR Mode)
Alarm Input/Output:	16/4CH
Certificate:	CE/FCC/RoHS
Warranty:	1 Year
Type:	Standalone
Feature:	High Definition
Operating System:	Linux
Technology:	H.264
Style:	32 CH
Horizontal Resolution:	Full D1

Product Description

CCTV Surveillance 32 Channel Full D1 Network CCTV DVR (BE-9932HD)

Main features:
1. Use the standard H. 264 video compression format. 'more advanced video compression technique makes the code stream lowered at least 30%
Can realize 8CH D1+24CH CIF recording and 8CH D1+8CH CIF realtime playback Synchronously
2. Combines the functions of DVR/NVR together, multi-mode input ( support pure analog input, support pure network HD video input), just one can work
3. Support super cloud service (this function is optional, specialized website forsuper cloud service: Www. Dvrcenter. Net), one step to do remote control easily & conveniently without any complicated setting
4. Multiplex operation simultaneously: Preview, recording, playback, backup, network live, mobilephone view
5. Multiple record mode: Auto, timer, motion recording mode
6. Optimized 16CH simultaneous playback, each channel can be enlarge to full screen
7. Support backup with USB Flash Disk, Movable hard disk, DVD writer, Network
8. Support drag the progress bar can be targeted playback time directly
9. Support Network function: One IE browser centralized monitoring and CMS Software for multiple DVR
10. Supports Multiple backup mode: USB flash drive, USB hard disk and network backup
11. Support one SATA HDD, max capacity is 3TB
12. Support 3G & WiFi extension
13. Support multi-browser(IE, Chrome, Firefox, Safari)
14. Support mobile phone monitoring(iPhone, Windows Mobile, BlackBerry, Symbian, Android)
15. Powerful net service(support DHCP, PPPOE, FTP, DNS, DDNS, ARSP(www. Dvrcenter. COM), NTP, UPNP, EMAIL, IP authority, IP search, alarm center, etc), complete enclosure(WEB, CMS, SDK), to easily achieve interconnection

	Model	BE-9932HD
System	Main processor	HIS chipset Hi3531
Display	Display screen	1/4/8/9/16 screen
Video	Video standard	PAL(625 lines,50fps);NTSC(525lines,60fps)
	Monitor quality	Monitor:D1;VGA:1080P ;HDMI:1080P
	Playback quality	Max support 1080P under HVR and NVR mode;Max support D1 under DVR mode
	Encode capability	8CH D1+24CH CIF real time(DVR mode)
	Decode capability	8CH D1+8CH CIF real time(DVR mode)
	Multi-mode video input	DVR mode :8D1+24CIF NVR mode:24D1/20960H/41080P/11080P+8720P/21080P+4720P+4 960H
	Motion detection	Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only)
Audio	Audio compression	G.711A
Record and playback	Record mode	Manual\alarm\motion detection\timing
	Local playback	Max support 8CH D1+8CH CIF real time playback synchronously(DVR mode)
	Video search	Time\date\event\channel search
Storage and back up	Space occupation	Video:CIF 4~5G/daychannel, D1 16~20G/daychannel; audio:691.2M/day*channel
	Video storage	Local HDD \Network
	Back up mode	Network backup\USB portable HDD\USB DVD-RW\SATA DVD-RW
Interface	Video input	32CH BNC
	Video output	2CH BNC,1CH VGA,1CH HDMI
	Audio input	16CH RCA
	Audio output	1CH RCA
	Alarm input	16CH
	Alarm output	4CH
	Network port	RJ45 10M/100M self-adaptive Ethernet port
	PTZ control	1 RS485;support multi kinds of PTZ Protocol
	USB port	2*USB2.0
	HDD port	4 SATA(each max support 3TB)
	Wireless port	3G\WIFI(extension via USB port)
CMS	CMS software	Support (up to 255 DVR simultaneously)
other	Tour	Support
	Remote controller	Support
	Working temperature	-20-60
	Working humidity	10%-90%
	Power	12V/6A
	Dimension	443(L)x90(H)x458(W)
