Product Specifications
| Prod Model: |
CCTV system Surge Protector 3in1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
DC12V, AC24V, AC220V |
| Working Currents: |
5A |
| Maximum Discharging Currents: |
20ka |
| Voltage Protection Level: |
<62V |
| Respond Time: |
<1ns |
| Insertion Loss: |
<0.3dB |
| Video Data Transmission Rate: |
16m Bps |
| Impedance: |
75 Omega |
| Dimension: |
104x63x37mm |
| Weight: |
0.26kg |
| Kind: |
Surge Protection |
| Technology: |
Lightning Protection |
| Special Features: |
Video Data Power 3in1 |
| Style: |
All Kinds of Camera |
| Sensor: |
Gdt and MOV Inside |
Product Description

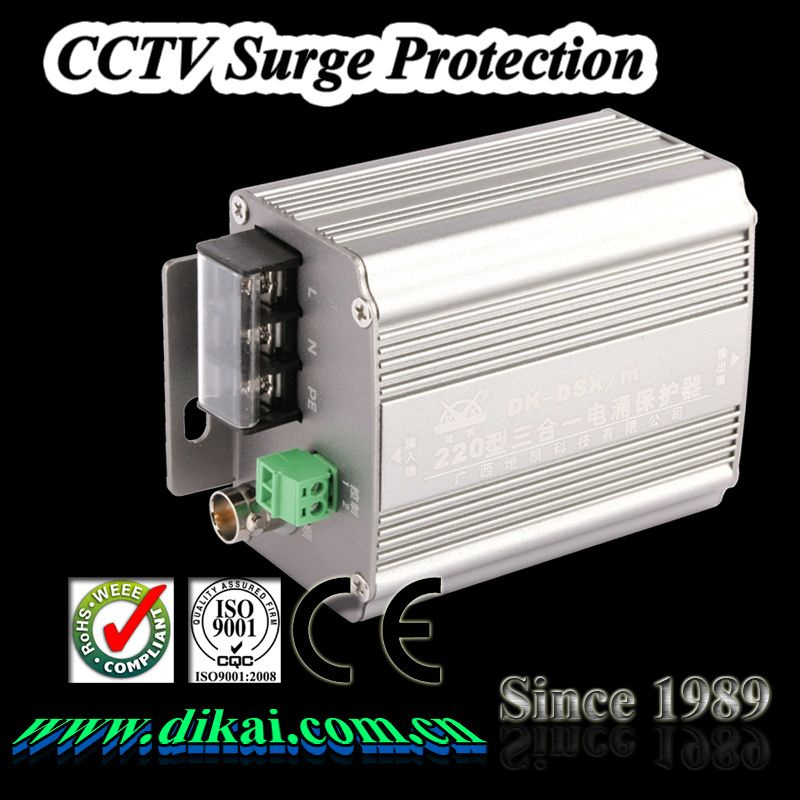

CCTV System Camera Video Data Power 3in1 Surge Protector
Applicable Scope
1. 220V/24V/12V Video Camera
2. Fore-end High Speed Sphere Camera, Middle Speed Sphere Camera, Pan/Tilt Camera
3. Combined Power and Signal lightning protection together
Character
1. 220V AC
2. 24V AC
3. 12V DC
4. Quick respond
5. Easy installation
Brief Introduction
CCTV System Camera Video Data Power 3in1 Surge Protector is designed according to the IEC and national Standard.
This product is used for power and video line's lightning protection of the Fore-end High Speed Sphere Camera, Middle Speed Sphere Camera, Pan/Tilt Camera of security system. It is widely used for warehouse, residence community, road monitoring system. Dikai Company has used it for Chinese Government project "3111", which is a project cover tens of cities security camera.
Guangxi Dikai Sci & Tech Co., Ltd. Was established in June 1989, which specializes in the development and production of lightning protective products, and the research and service of lightning protective technology. It has been a top lightning protection company in China after more than 20 years of development. The company now has a top-ranking lightning protection test center, a lightning proving ground, an intellectualized building for scientific research. The products of the company have won more than 10 national patents and possess ISO 9001: 2000 certificate and CE certificate.
