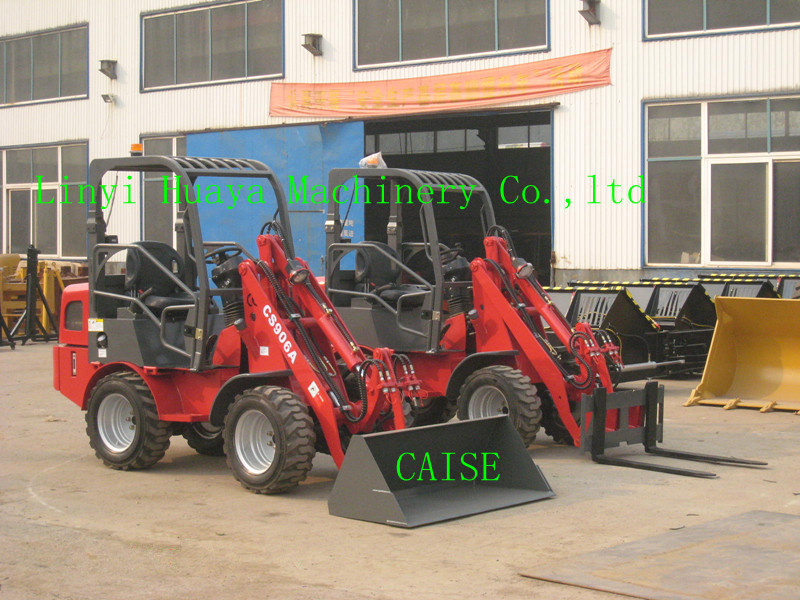

CE 4th-Function CS906 with Quick Hitch

Name: CE 4th-Function CS906 with Quick Hitch
Brand: china-manufacturer-directory.com
SKU: 688431652
Availability: InStock
Rating: 4.4 (90 reviews)

Supplier:	Linyi Huaya Machinery Co., Ltd.
Price:	US $ 9000-11000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	CS906
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	376711902230mm
Color:	Can Be Paint According Your Requirement
Engine:	Yanmar Engine
System:	Original Italy Sauer System

Product Description

CS906 is, which is latest developed, more compact in construction, lighter in the model and therefore more suitable family farm work as well as narrow place.

1. With compact structure, flexible movement and especially 1190mm width, it is particularly helpful and useful in narrow place where it is difficult for large machinery to work.
2. Adopted the original Sauer hydraulic system imported from the United States, whose system is electric controlling, guarantees smooth transmission and high reliability.
3. Parallel four-connecting rods construction of the working devices makes the bucket have no angle change in the process of the rising and landing.
4. Whole openable seat base and engine hood make it convenient for cleaning and maintenance work.

Item	Specification	Item	Specification
Kerb weight	1720kg	Max. speed	15km/h
Rated bucket capacity	0.25m³	DRIVE AXLE
Rated load	600kg	Main transmission type	Planet differential, first stage deceleration
Max. tractive force	16kN	TYRE
Max. breakout force	20kN	Tyre specification	27*10.5-15
Max. gradeability	40%	STEERING SYSTEM
Max. dumping height	1830mm	Type	Articulated load-sensing hydraulic steering system
Dumping distance	1080mm	Steering angle	32°each side
Overall dimension(LWH)	376711902230mm	Min. turning radius	3240mm
ENGINE		HYDRAULIC SYSTEM
Model	403D-11	System working pressure	18MPa
Type	Vertical, water cooling	Lifting time	5s
Cylinder-bore*stroke	3-17-81	Total time	10s
Rated power	18.5kW	BRAKE SYSTEM
TRANSMISSION SYSTEM		Parking brake	Manual internal expanding shoe-type
Hydrostatic transmission	Variable pump, variable motor	FILL CAPACITY
Type of gear box	Axis-fixed, double reduction	Fuel	30L
Gear shift	forward and reverse , stepless speed reduce	Hydraulic oil	60L

We are Linyi Huaya Machinery Co., Ltd. We are the earliest manufacturer of mini wheel loader in China, we started produce wheel loader from 2005, brand is CAISE and CAISEREX. Main products are CS906, CS908, CS910, CS910J, CS910J PRO, CS915, CS917 PRO. CS920. We work hard on quality control, better paint, better material, better assembling, which makes CAISE loader stable and good to use. We are trying to improve the quality and design new model all the time. CAISE wheel loader fit for all the farm work and construction work, are the best choice in China. We are supplying customized service for global market. No matter where you are, we will design wheel loader for you. Choosing us, we are create value together.
