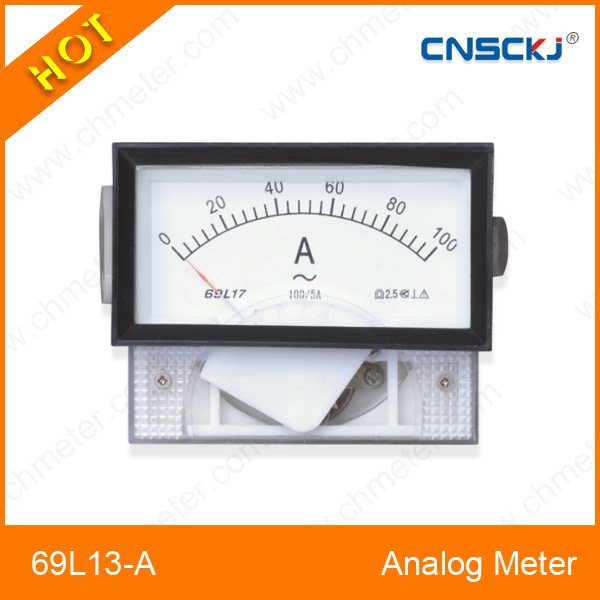

Product Specifications
| Prod Model: |
69L13 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
46*46mm |
| Theory: |
Electronic Meter |
| Display: |
Indicator |
| Power Source: |
AC and DC |
| Installation: |
General Installation Meter |
| Usage: |
Voltage Measurement |
Product Description
Changes caused by the temperature:
Temperature range for reference: 23° C± 2° C, 13° C~23° C, and 23° C~33° C. The changes caused by the impact of temperature are not allowed to be out of the range of the level index ± 100%.
The installation:
Unless specified, the meter is usually installed in a vertical position. Other installation positions such as horizontal and inclined position can be installed according to the customer's requirements. The corresponding level of accuracy is only valid to the regulated installation position. The meter has two kinds of instruction angles: Right angle 90° And wide angle 250° .
Anti-vibration and anti-shock:
Anti-vibration: Complies with the standard of IEC60068-2-6; Frequency sweep range: 10-55-10Hz; Displacement amplitude: ± 0.15mm, ± 0.3mm; Frequency sweep cycles: 5 times; Sweep rate: 10ct/min; Maximum acceleration: 147m/s2(15g), 490m/s2(50g); RMS acceleration: 6.06g; Vibration time: 15 min. Anti mechanical shock: Complies with the standard of IEC60068-2-27.
Accuracy level:
The SCD series of pointer meter: AC and DC voltmeter and ammeter to the level of 1.5 or 2.5, power meter to the level of 2.5, frequency meter to the level of 2.5, and power factor meter to the level of 2.5.
Dielectric Strength Test
|
Frequency 50Hz,Voltage2000V,Endurance time1min
|
Mechanical shock resistance
|
MAX.acceleration147m/s2
|
Response time
|
≤4s
|
Angle of deflection
|
90°
|
Wenzhou CNSCKJ Meter Technology Co., Ltd. Specialized in manufacturing various digital display meter, which is member enterprise of the National Electrician instrument& Meter Standardization Committee. The products manufactured by our company strictly complied with IEC 51 publication rev4 issued by international electrician Committee and IEC1010 Standard, and meet the National Standard Requirement GB/T7676-1998. CNSCKJ company have passed through ISO9001: 2000 Certificate and CE Certificate.
(1) We are one of organizations chiefly editing the national standard, Mounted Digital Display Electric Measuring Instrument:
(2)We are involved in the edition of national standards, low-voltage Reactive Power Compensation Switching Device and General Specification for Digital Motor Combined Protection Equipment;
(3)We participate in the revision work of industrial standard, low -voltagea Reactive Power Compensation Control Device
(4) We play an essential role in editing the national standard diagram collections for electrical design, commonly-used Pump Control Circuit Diagram and Commonly-USD Blower Control Circuit Diagram, and the reference diagram collections for eletrical design, Fire-fighting Equipment Power Supply Monitoring System.
Under holding up the enterprise tenet: Survive on quality, Create brand with the credit, CNSCKJ sincerely wish friends at home and abroad to cooperate with for brilliant tomorrow!
