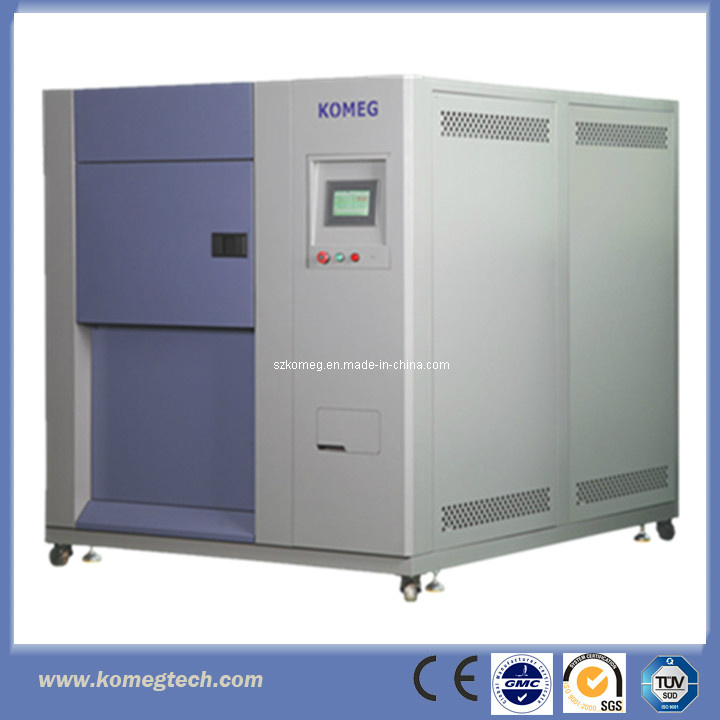

CE Certisficated Raliability Thermal Shock Test ChamberEstablish a cultural KOMEG, Build a century brand.
Quality conscious enterprise for quality conscious people.
We'd rather explain for the price than apologize for the Quality life long.Application:Thermal Shock Test Chamber is used to quickly find the hidden mechanical weaknesses in electronic components when test specimens are exposed to rapid thermal shock condition, and you will not only reduce the premature failures but also increase the reliability of your products when you choose our thermal shock test chamber.
Conversion time:
2-zone: 3 min 3-zone:5 min
About 2-zone thermal shock test chamber:
Defrost: one time / week, about100cycles
Stop testing program to defrost
Automatically defrost without changing the testing temperature
What is temperature compensation?
For example, If your testing temp is -40 ºC, you should set -55ºC. The difference 15 ºC between them is the compensation temperature.
Why?
Because of the heat dissipationFeaturesRational Construction and fast cooling rate
Frequency conversion control of wind speed.
Adopts international brand of imported parts for cooling system to improve operation reliability
Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
Standards Implemented and metGB10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
Benifits more than you can get from other supplier1. Dedicatetouch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide rang of temperature and humidity environments
4. Capable of testing large components, assemblies, and finished products
5. Customized sizes and configurations available
6. One year warranties
KOMEG, as a professional manufacturer of environmental test chamber for 23 years.
We will attend CISILE 2014 Beijng, Booth No., 1102, on May 21-23, 2014.
Welcome! You will have a new brand concept of our programmable test chambers.
You will find purchasing become easier and more smoothly.The following is some parts of our company.
SIMENS, EMERSON, Minolta, HUAWEI, TCL, etc. are among our long-term clients.

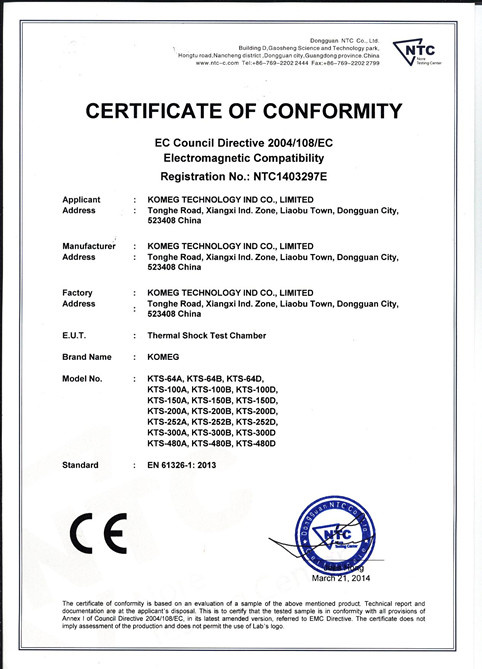

CE Certificated
We provide comprehensive after-sale service and technical support, and we hope to be your reliable supplier of environment simulated test chamber in China.
Let your order started today. The first order will gain 10% discount, and trade agent are welcomed passionately. Nancy is here 7*24 hours.Besides this, we supply programmable stability test chamber, thermal shock chamber, three intergrated test chamber, salt spray test chamber, solar panel test chamber, High and Low temperature low altitude test chamber, high precise drying oven, vacuum oven, aging oven, mechanical / electromagnetic vibration testing machine, free fall drop tester, etc.If you hesitate to leave your inquiry, Something you need know: we are Golden member of GMC. And you should know that Jack Welch is the chief adviser of GMC.
GMC cooperate with ONLY MANUFACTURER.Please check the following Technical parameter:
|
Specifications |
Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|
Model |
KTS-A Series |
KTS-B Series |
KTS-D Series |
|
72A |
100A |
150A |
200A |
252A |
300A |
480A |
72B |
100B |
150B |
200B |
252B |
300B |
480B |
72D |
100D |
150D |
200D |
252D |
300D |
|
Interior size |
W(mm) |
450 |
500 |
600 |
670 |
700 |
800 |
800 |
450 |
500 |
600 |
670 |
700 |
800 |
800 |
450 |
500 |
600 |
670 |
700 |
800 |
|
H(mm) |
400 |
450 |
500 |
600 |
600 |
600 |
800 |
400 |
450 |
500 |
600 |
600 |
600 |
800 |
400 |
450 |
500 |
600 |
600 |
600 |
|
D(mm) |
400 |
450 |
500 |
500 |
600 |
650 |
750 |
400 |
450 |
500 |
500 |
600 |
650 |
750 |
400 |
450 |
500 |
500 |
600 |
650 |
|
Exterior size |
W(mm) |
1490 |
1540 |
1640 |
1720 |
1750 |
1850 |
1850 |
1490 |
1540 |
1640 |
1720 |
1750 |
1850 |
1850 |
1490 |
1540 |
1640 |
1720 |
1750 |
1850 |
|
H(mm) |
1790 |
1840 |
1890 |
2000 |
2000 |
2000 |
2200 |
1790 |
1840 |
1890 |
2000 |
2000 |
2000 |
2200 |
1790 |
1840 |
1890 |
2000 |
2000 |
2000 |
|
D(mm) |
1600 |
1700 |
1830 |
1850 |
1930 |
1980 |
2500 |
1600 |
1700 |
1830 |
1850 |
1930 |
1980 |
2500 |
1600 |
1700 |
1830 |
1850 |
1930 |
1980 |
|
Test weight(KG) |
5 |
10 |
12 |
15 |
18 |
20 |
20 |
5 |
10 |
12 |
15 |
18 |
20 |
20 |
5 |
10 |
12 |
15 |
18 |
20 |
|
Low Temp. chamber |
-55ºC~-10ºC |
-70ºC~-10ºC |
-80ºC~-10ºC |
|
Pre-heat time |
+20ºC~-55ºC ,Within 60 min |
+20ºC~-70ºC ,Within 60 min |
+20ºC~-80ºC ,Within 60 mins |
|
Test. chamber |
-40ºC~+150ºC |
-55ºC~+150ºC |
-65ºC~+150ºC |
|
High Temp. chamber |
+60ºC~+200ºC |
|
Pre-heat time |
+60ºC~+200ºC ,Within 20 min |
|
Recovery time |
High-Temp Exposure 30 min |
|
Low-Temp Exposure 30 min |
|
Recovery time within 5 min |
|
Safety device |
No fuse breaker, over pressure\over heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection |
|
Standard accessory |
Cable port(portΦ50mm)*1, shelves*2 |
|
Interior material |
Stainless steel plate(SUS 304) |
|
Exterior material |
Baked painting steel or stainless steel(SUS304) |
|
Insulation material |
Rigid polyurethane Foam+glass fiber wool |
|
Refrigeration system |
Water Cooled |
|
Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23) |
|
Controller |
Panel:7-inch LCD Touch panel,Chinese or English display selectable |
|
Operation model:Program or fix point running |
|
Memory capacity:120programs,1200steps,all repeat 999cycles,part repeat 99 cycles. |
|
Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit |
|
Input:Temp.:pt-100 Humidity:pt-100 or ~5V DCV |
|
Ambient Temp. |
+5ºC~+35ºC |
|
Power |
AC 380±10%50Hz ,3 phase 4 wires +Ground Wires |

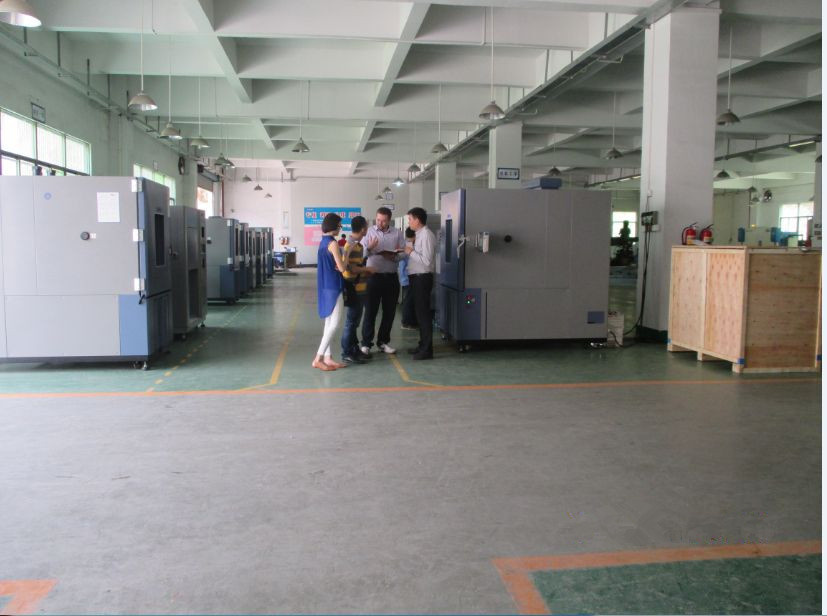

KOMEG Technology Industrial is famous for its KOMEG star brand of environmental test equipment in China since 1990. KOMEG has specialized in climatic test chambers, thermal shock test chambers, walk-in chambers, burn-in room and aging test chambers, drying ovens, salt spray testers, medical laboratory equipment etc. KOMEG factory is located in Dongguan, covering an area of 5, 000 sqm, with over 52 employees including 26 R&D engineers. KOMEG also have offices in Shenzhen and Songshan Lake National Hi-Tech Industrial Development Zone.
Born for quality, test for future is always our philosophy. Better idea, better design and better quality is our aim. We strive for continuous innovation, releasing no less than 5 new designs each year. Our strong R&D team and skilled workers is the key to our success. No matter it is standard or custom-made project, we have rich experience in handling such so that customers worldwide can benefit more from KOMEG when working with us. And to ensure your specific test standards are met, the key components and parts are using imported famous brand. That's why SGS, KONICA MINOLTA, SENKO, Midea, TCL and Huawei are among our long-term clients.
Being a first-class supplier and reliable partner, we are certified to ISO 9001 and got CE approval for all our products. All equipments are 7*24 hour tested before delivery. That explain why KOMEG is the private brand of choice for many well-known brand enterprises, and also one of the very few designated suppliers who were recognized by many top 500 enterprises. Let KOMEG 23 years of professional experience work for you too. And meanwhile, we look forward to helping with you.
Distributors welcomed, Inquire today to get your order started
