Product Specifications
| Prod Model: |
ACR92 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
85.6mm (L) X 54mm(W) X 5 Mm (H) |
| Dimensions: |
85.6mm( L) X54mm( W) X5mm( H) |
| Supply Voltage: |
Regulated 5VDC |
| Operating Temperature: |
10- 55o C |
Product Description

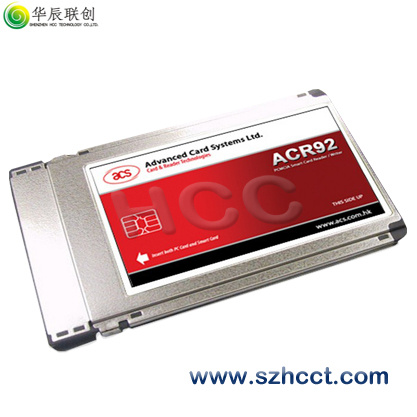

PCMCIA Smart Card Reader--ACR92
Overview:
The ACR92 PCMCIA Smart Card Reader is a specially designed smart card peripheral for notebook and portable computers. Compliant with PC/SC, FCC and ISO7816 specifications, and certified by EMV Level1, it is suitable for applications related to credit card payments and other banking services.
ACR92 is easy to install and use, and is capable of allowing future firmware and application upgrades. It establishes a uniform interface between a computer and a wide variety of smart cards. By taking care of card specifics, it allows software engineers to implement smart card-based systems without them having to fully comprehend all the technical details of the smart card/ computer interface.
Features:
- Read and write all microprocessor cards ( MCU) with T=0, T=1 protocols
- Sliding connectors ( 8 contacts)
- Min 100, 000 card insertion cycles
- Transmission speed ( with PC: 16Mbit/sec)
- On-board flash provides firmware upgrades
- Stainless steel case material
- 30g weight
- Certifications/ Compliances: PC/SC, FCC, EMV 2000 Level1, RoHS
- Compliant to PCMCIA mechanical specifications
Applications:
- Home banking and home shopping
- Electronic commerce
- Digital signature
- Physical access control
- Identification
- Online gaming
- Business trip
Specification:
Dimensions: 85.6mm( L) X54mm( W) X5mm( H)
Interface: PCMCIA, plug and play support
Supply voltage: Regulated 5VDC
Operating temperature: 10- 55º C
CLK Frequency: 4/ 8MHz
Compliance/ certifications: ISO7816 Class A and AB; PC/SC, FCC,
EMV 2000 Level 1, RoHS, cULus, VCCI, Microsoft WHQL 2000, 2003, XP, Vista, 7
Operating system support: Windows 98, ME, 2000, 2003, XP, Vista, 2008, 7; Windows 2003X64, XPx64, Vistax64, 2008X64, 7X64; Linux
|
Dimensions |
85.6mm (L) x 54mm(W) x 5 mm (H) |
|
Interface |
PCMCIA, Plug and Play support |
|
Supply Voltage |
Regulated 5V DC |
|
Operating Temperature |
10-55°C |
|
CLK Frequency |
4/8 MHz |
|
Compliance/Certifications |
-ISO 7816 Class A and AB
-PC/SC, FCC, EMV 2000 Level 1, RoHS, cULus, VCCI, -Microsoft WHQL 2000, 2003, XP, Vista, 7 |
|
Operating System Support |
-Windows 98, ME, 2000, 2003, XP, Vista, 2008, 7
-Windows 2003 x64, XP x64, Vista x64, 2008 x64, 7 x64
-Linux |
