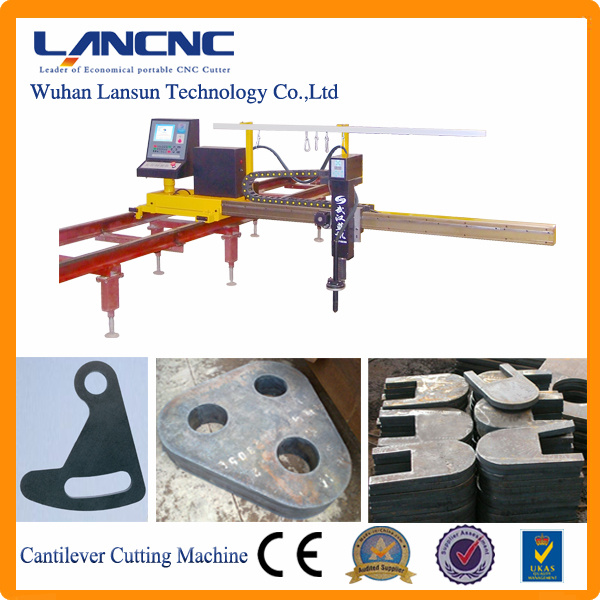

This cutter adopts small cantilever structure, single drive and lineal guide. It is small bodily movement type, needn't fixed plant, operate easily.
Application:
It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Cross Beam Length(X axis)
|
2m
|
Longitudinal Rail Length(Y axis)
|
3m (Rail can be lengthened according to user' s demand)
|
Effective Cutting Width (X axis)
|
2m
|
Effective Cutting Length (Y axis)
|
2.2m
|
Cutting Mode
|
Flame only; Plasma only; Flame and Plasma
|
Drive Mode
|
Single-side
|
Drive Method
|
Rack and pinion drive for X and Y axes
|
Flame Cutting Thickness
|
5 -200mm
|
Plasma Cutting Thickness
|
1 -60mm (according to the specification of plasma power source)
|
Cutting Speed
|
0 -6000mm per minute
|
Moving Precision
|
0.01mm per step
|
Power Source
|
220V 50Hz 500-1000W
|
Nesting Software
|
INTERGNPS, FASTCAM
|
Cutting Gas
|
Acetylene, Propane
|
Plasma Gas
|
Pressed air, Oxygen, N2
|
Marking Tool
|
|
Torch Height Controller (AUTO)
|
CHC600
|
Capacitive height control for flame cutting
|
PHC330
|
Arc voltage height control for plasma cutting
|
Lansun specializes in researching, developping and selling ZLQ- series CNC cutting machines for 20 years. We have CNC portable, cantilever, gantry, table type and Pipe profile cutting machines.
Our mahcines are extremely easy to operate; With High rate of costs&very favourable price, our machines have been exported to Germany, England, Russia and all over the world!
