Product Specifications
| Prod Model: |
HPOS15B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CPU: |
Intel Pine View D525 (Dual Core) 1.80GHz with L2 |
| Certification: |
FCC |
| Type: |
Touching POS Terminal |
| Currency Detector Type: |
Touching POS Terminal |
| Currency Detector Principle: |
Touching POS Terminal |
| Queue System Type: |
Touching POS Terminal |
| Queue System Usage: |
Touching POS Terminal |
| Queue System Display Function: |
Touching POS Terminal |
| Data Collector Type: |
Touching POS Terminal |
| Data Collector Operating System: |
Touching POS Terminal |
| Data Collector Signal Transmission: |
Touching POS Terminal |
Product Description

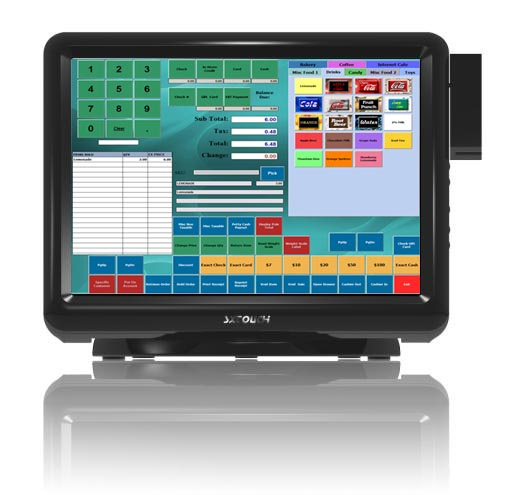

Touching POS Terminal--- HPOS15B
Specification
Main BoardCPUIntel® Pine view D525 (Dual Core) 1.80GHz with L2 Cache 512KB
ChipsetIntel® Pineview + ICH8M
System Memory1 x SO-DIMM DDRIII 2G, up to 4GB
DisplayTFT LED38.1cm (15")
Brightness350nits
Resolution1024 x 768
Touch ScreenTrue Flat 5-Wire Resistive
StorageHDD Type1 x SATA 6.4cm (2.5'')HDD
SSD Type1 x SATA 6.4cm (2.5") SSD (optional)
DC Input1 x Mini Din 2P (DC 12V only)
I/O Ports -ExternalNetwork (LAN)1 x Gigabit Ethernet by RJ-45
USB Port4 x USB 2.0
Serial Port2 x RS-232 w/ IR/5V/12V power
Audio1 x Line-out; 1 x Mic-In (optional)
PS/2 Port2 x PS/2 connector for Keyboard
LPT Port1 x DB-25 Printer Port (Standard)
VGA Port1 x DB-15 VGA Port (optional)
Power SupplyExternal adapter, DC Model: 80 Watts, Voltage: +12VDC 5.0A max.
ColorMain Unit: Gray / White / Black
*Customized color for plastic parts
VESA Mounting100 x 100 mm
Operating Temperature0º C ~ 40º C, 10% ~ 90% RH, non-condensing
Storage Temperature-20º C ~ 60º C, 10% ~ 90% RH, non-condensing
CertificationsCCC, CE, FCC, RoHS
OS SupportWindows 7, Windows POSReady, Windows XP Pro for Embedded, WinCE, Fedora(Linux)
Dimension( Wx H x D )370 x 300 x 236 mm
Weight6.5 Kg
(Aluminium Base: 1 Kg )
|
Main Board |
CPU |
Intel® Pine view D525 (Dual Core) 1.80GHz with L2 Cache 512KB |
|
Chipset |
Intel® Pineview + ICH8M |
|
System Memory |
1 x SO-DIMM DDRIII 2G , up to 4GB |
|
Display |
TFT LED |
38.1cm (15") |
|
Brightness |
350nits |
|
Resolution |
1024 x 768 |
|
Touch Screen |
True Flat 5-Wire Resistive |
|
Storage |
HDD Type |
1 x SATA 6.4cm (2.5'')HDD |
|
SSD Type |
1 x SATA 6.4cm (2.5") SSD (optional) |
|
DC Input |
1 x Mini Din 2P (DC 12V only) |
|
I/O Ports -External |
Network (LAN) |
1 x Gigabit Ethernet by RJ-45 |
|
USB Port |
4 x USB 2.0 |
|
Serial Port |
2 x RS-232 w/ IR/5V/12V power |
|
Audio |
1 x Line-out ; 1 x Mic-In (optional) |
|
PS/2 Port |
2 x PS/2 connector for Keyboard |
|
LPT Port |
1 x DB-25 Printer Port (Standard) |
|
VGA Port |
1 x DB-15 VGA Port (optional) |
|
Power Supply |
External adapter, DC Model:80 Watts, Voltage:+12VDC 5.0A max. |
|
Color |
Main Unit: Gray / White / Black
*Customized color for plastic parts |
|
VESA Mounting |
100 x 100 mm |
|
Operating Temperature |
0ºC ~ 40ºC, 10% ~ 90% RH, non-condensing |
|
Storage Temperature |
-20ºC ~ 60ºC, 10% ~ 90% RH, non-condensing |
|
Certifications |
CCC,CE, FCC, RoHS |
|
OS Support |
Windows 7, Windows POSReady, Windows XP Pro for Embedded,WinCE,Fedora(Linux) |
|
Dimension( Wx H x D ) |
370 x 300 x 236 mm |
|
Weight |
6.5 Kg
(Aluminium Base: 1 Kg ) |
