Product Specifications
| Prod Model: |
TY-6858A-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White |
| Type: |
Ultrasound Scanner |
| Classification: |
Imaging Diagnostic Equipment |
Product Description

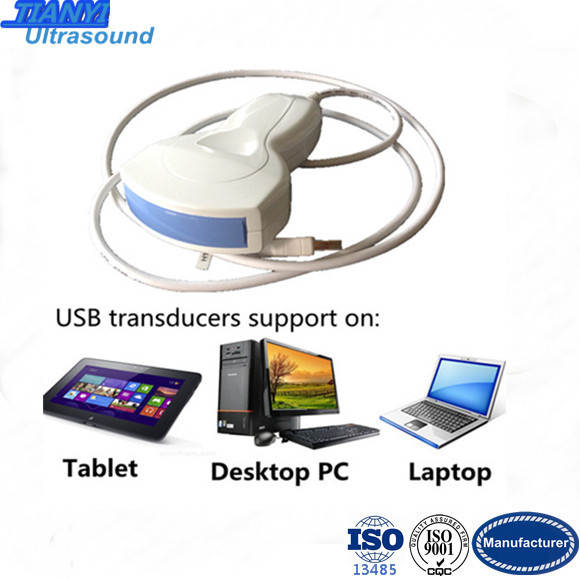

CE USB probe with ultrasonic software Specification
-Full digital imaging technology;
-Work with any PC, laptop, tablet;
-Support on Windows XP/win7/win8 system;
-Compatible with all laser/inkjet printers;
-Available in 3 kinds of USB ultrasound probe;
3.5MHz USB Electronic convex array transducer (70-225mm, step=7mm)
7.5MHz USB Electronic linear array transducer (35-112mm, step=7mm)
3.5MHz USB Electronic micro-convex array transducer (70-225mm, step=7mm)
11" Tablet(for optional)
CE USB probe with ultrasonic software Main Functions
Host performance
Dominant frequency: Up to 1.66GHz
2G RAM; WIFI/Bluetooth
Storage: 32G
Window 7/WindowsXP/Window8 OS
11" LED capacitive touch screen tablet, 1 366*768(optional)
Battery: 2890mA lithium battery, 5 hours endurance time
USB ports: 2
Dimension (W× L× H): 302× 196× 130mm; Weight: 998g
Special USB-connected ultrasound probes(USB 2.0)
Automatic identification, Auto-freeze
Operating language: English, Chinese
Transducers
-USB Electronic convex array transducer C3: CA3.5MHz/R50, 70.75°
-USB Electronic linear array transducer L7: 7.5MHz
-USB Electronic micro-convex array transducer M3: CA3.5MHz/R20, 101.07°
2. System display
Imaging mode: B, BB, BM
Main display annotation:
Hospital name, patient ID, name and gender, date time, probe type, scanning depth,
Gain, frame averaging, line averaging, gamma correction, contrast, frame frequency,
Application mode(vet), probe direction identification, focus location, TGC curve,
Depth and speed scale, cine loop frames, measurement and results, operation keys.
3. Technical parameters
TGC
Gross gain 25 levels (0-100db, step=4)
Contrast 25 levels (0-100, step=4)
Depth: C3 23 levels (70-225mm, step=7mm)
L7: 23 levels (35-112mm, step=3 or 4mm)
M3: 23 levels (70-225mm, step=7mm)
Focus C3: 15 levels (25-150mm, step=5mm)
L7: 15 levels(12-68, step=4mm)
M3: 15levels(25-150mmstep=5mm)
FrameAver: 0-4 adjustale
LineAver: 0-2 adjustale
Gamma: 0-20 adjustale
Cine loop frame: At least 512
Probe conversion: Auto identify
Video save, image save
Image reversal(Invert L/R)
New patient(Exam): Patient ID, name, age, etc
Patient info. (Patview): Image, cine loop
Zoom
Measurement: Distance, area, perimeter, time, speed, heart rate
Obstetrics: BPD, FL, CRL, HC, AC, GA, FW
Probe auto freeze: 5 mins
Images and videos offline measurement
VET(Horse, Cattle, Sheep, Dog, Cat)OB measurement
Application mode(VET)optional and memory saved
Body markers(VET): 15
Chinese/English language switch
Reasons for choosing us
-Manufacturer: Real manufactuer in China, get supplied from our factory directly.
-Your professional supplier: Been in the field of ultrasound develope and manufacturing since 1998.
-Compective price and stable performance: We're dedicated to the production and r&s of ultrasonic imaging system.
|
Standard configuration(each): |
3.5MHz USB Electronic convex array transducer
7.5MHz USB Electronic linear array transducer
3.5MHz USB Electronic micro-convex array transducer |
|
Optional: |
Tablet |
|
Weight |
0.8kg |
|
Packing size |
Package: 420*280 *90mm |
|
Warranty |
18months |
|
Delivery Time |
within 7 days after payment |
