Shenzhen Jinhuali Refrigeration Plant Co., Ltd. >> Ceiling Type Air Handing Unit for Air Conditioner

Ceiling Type Air Handing Unit for Air Conditioner

Name: Ceiling Type Air Handing Unit for Air Conditioner
Brand: china-manufacturer-directory.com
SKU: 739888805
Availability: InStock
Rating: 4.5 (90 reviews)

Supplier:	Shenzhen Jinhuali Refrigeration Plant Co., Ltd.
Price:	US $ 500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	HLG-
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Heating And Cooling:	Heating and Cooling
Certificate:	CE
Type:	Central Air Conditioners
Usage:	Room
Indoor Machine Noise:	36-49dB
Certification:	CE
China Energy Efficiency Standard:	Level 1
Cooling/Heating:	Cooling/Heating
Power Source:	Electrical
Power Type:	AC
Condition:	New
Capacity:	30 to 1800kw

Product Description

AHU, Module Air handling unit
Supply air flow: 5, 000 to 200, 000m3/hour
Cooling capacity: 30 to 1, 800kW

Function section: Air supply, cooling, heating, humidify, dehumidify, air purify and silencing

Applications: Used in various fields such as micro-electronics, chemical plants, precision equipments, food industries and scientific research office buildings.

Parameter of AHU

Ceiling, Horizontal AHU Technical Parameters (8 Rows, 10 Fins per inch)
Model	Air Flow Volume		Motor-external linked		Air return				Fresh Air				Noise	Water inlet/outlet pipe Diameter	Coil section							Weight
	Rated Air Flow	Air Flow Range	Pressure	Power Input	Cooling Capacity	Heating Capacity	Water Flow	Water Resistance	Cooling Capacity	Heating Capacity	Water Flow	Water Resistance			Copper tube	Fin space	Fan outlet speed	Coil face velocity	Heat exchanger size
	Rated Air Flow	Air Flow Range	Pressure	Power Input	Cooling Capacity	Heating Capacity	Water Flow	Water Resistance	Cooling Capacity	Heating Capacity	Water Flow	Water Resistance			Copper tube	Fin space	Fan outlet speed	Coil face velocity	L mm	H mm	W 8R
	m 3 /h		Pa	kW	kW		L/min	kPa	kW		L/min	kPa	dB(A)	DN	16mm	2.6mm	m/s	m/s	mm	mm	mm	kg
HLG-4 WA/D	4000	3.4~4.4	250	1.1	40.63	65.41	122.5	7.9	83.12	75.63	250.6	24.7	<60	40	16mm	2.6mm	10	2.7	550	760	323.4	150
HLG-5 WA/D	5000	4.4~5.4	300	1.5	50.68	81.59	152.8	10.4	102.23	93.02	308.2	29	<60	50	16mm	2.6mm	9	2.6	700	760	323.4	180
HLG-6 WA/D	6000	5.4~6.7	350	2.2	60.9	98.04	183.6	14.3	123.42	112.31	372.1	29.5	<61	50	16mm	2.6mm	10	2.7	800	760	323.4	210
HLG-8 WA/D	8000	6.7~8.7	400	3	81.26	130.82	245	17.6	165.68	150.76	499.5	30.5	<63	50	16mm	2.6mm	11	2.7	1100	760	323.4	250
HLG-10 WA/D	10000	8.7~10.8	400	4	101.66	163.67	306.5	24.4	207.94	189.22	626.9	31.1	<64	50	16mm	2.6mm	10	2.6	1400	760	323.4	290
HLG-12 WA/D	12000	10.8~13	400	2×2.2	122.36	196.99	368.9	25.4	253.45	230.63	764.1	31.9	<65	65	16mm	2.6mm	11.5	2.7	1650	760	323.4	330
HLG-15 WA/D	15000	13~15.4	400	2×3	145.52	234.28	438.7	26.6	303.01	275.73	913.5	33.9	<65	65	16mm	2.6mm	11.5	2.7	1700	912	323.4	390
HLG-16 WA/D	16000	15.4~16.8	400	2×3	156.83	252.49	472.8	27.2	317.47	288.89	957.1	34.5	<68	65	16mm	2.6mm	11.5	2.6	1700	988	323.4	410
HLG-18 WA/D	18000	16.8~18.8	400	2×3	179.35	288.75	540.7	27.6	370.65	337.29	1117.4	35.6	<68	65	16mm	2.6mm	10	2.7	1900	988	323.4	450
HLG-20WA/D	20000	18.8~21.5	500	2×4	201.91	325.07	608.7	27.9	425.41	387.12	1282.5	36.8	<70	65	16mm	2.6mm	10	2.7	1900	1064	323.4	490

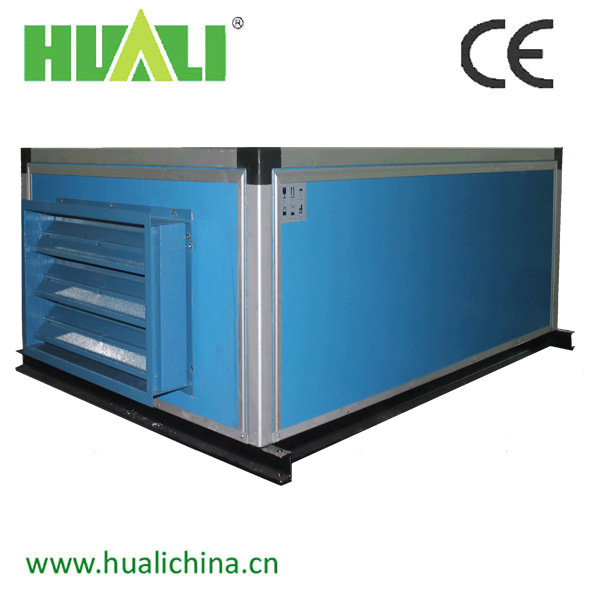

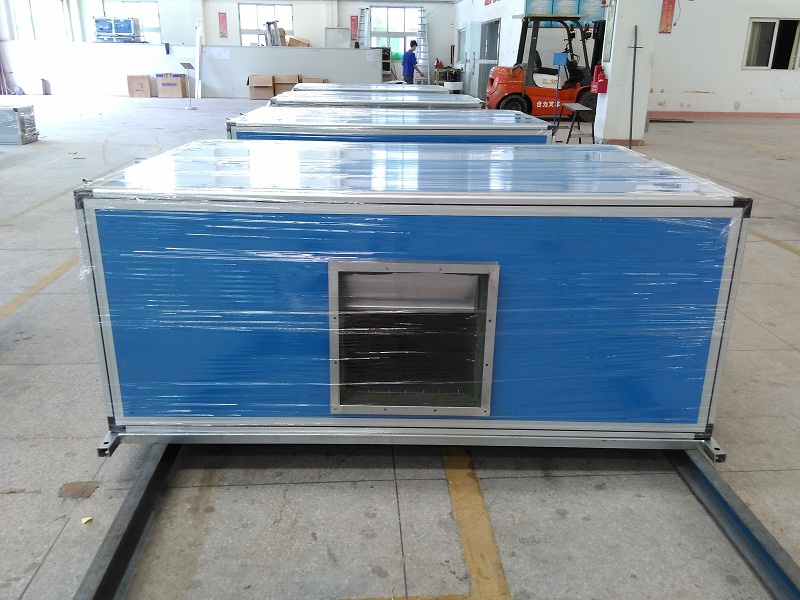

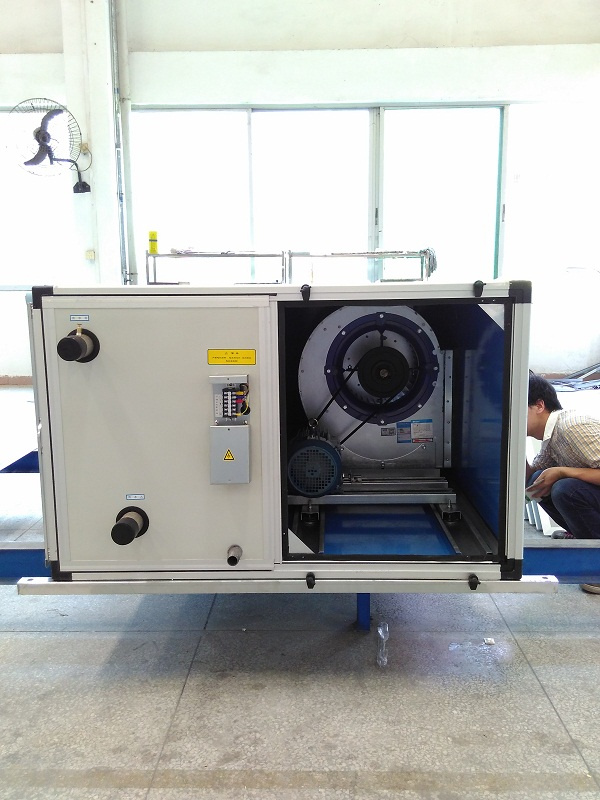

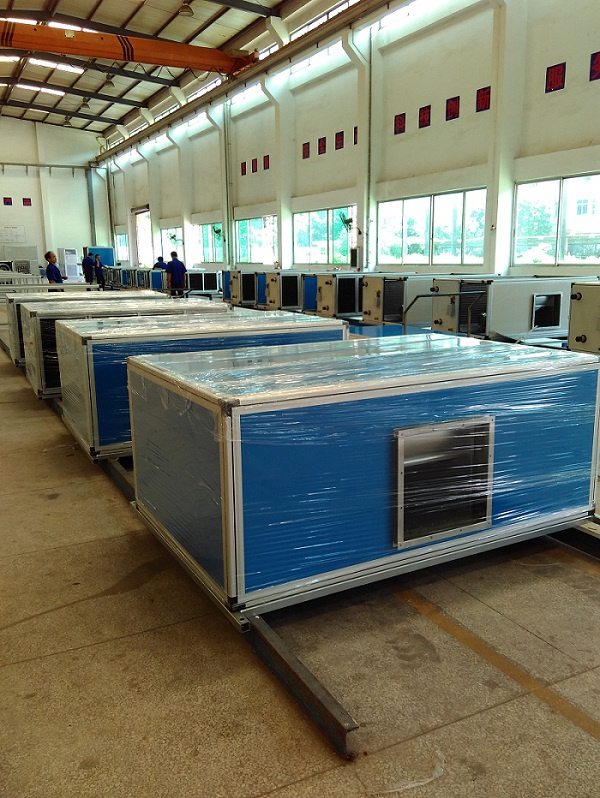

Photo of AHU

Shenzhen Jinhuali Refrigeration Plant Co., Ltd. Was established in 2008. There are more than 150 staffs in our company, 80 % employees have a college degree or above. Our company specializes in the production, research and development, engineering design, installation, maintenance and repair of central air conditioner and refrigeration equipment. Our company adheres to the business philosophy of quality first, customer respect. We have established an honest, dedicated, pragmatic, innovative technology and management team, can more easily provide products to our clients with more advanced technology, more reasonable prices and better service, and serve to provide users a full range of integrated services in product introduction, equipment installation and commissioning, technical training and after-sales services.

We found the Domestic Market Department, Overseas Markets Department,

Research & Development Department in December, 2008.

We applied for CE certification and passed in 2009.

We applied for 6 software registration rights in 2010.

We applied for 3 utility model patents in 2011.

Our company was approved as a national high-tech enterprise on November 5, 2012.

Our company has owned customers' approval with advanced technical performance, reliable product quality, timely and thoughtful customer service since it has been founded. Our products have been widely applied in medicine, electronics, chemicals, plastics, electroplating, and other industries and commercial sites. We have agents or after sale service departments in the Chinese first-tier cities. Our products have been exported to many countries and regions of Europe, the Americas, Oceania, Africa, Asia.
