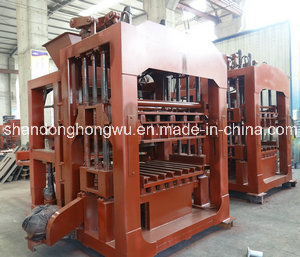

Cement Brick Making Machine, Concrete Block Machine, Fly Ash Block Machinery

Brief introduction :
Particular storage and discription material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.
Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.
The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-istance controlling system, it can achieve scrutiny, controlling, diagnosis.
Control system:
PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn't need a professional person but only need a simple trainning to the operator.
Product scope:
It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
Main Technical Specifications

Main Technical Specifications
Overall Dimension	9350×2320×2950(mm)
Rated pressure	21MPa
Main vibration form	Platform vibration
Cycle Time	15-25 seconds
Vibrating Frequency	2800-4500 rolls/minute
Motors Power	44.58kw
Pallet Size	1100*900(mm)
Raw Materials	crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied Products	concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products

Main production specification and theoretical productivity

Item	Specification size (mm)	Quantity per mould	Cycle molding	Per hour	Per day (10 hours)	Per year (300 days)
Hollow brick	390*190*190	10pcs	20-25s	1440-1800pcs	14400-18000pcs	4320000-5400000pcs
Porous block	240*115*90	24pcs	15-20s	4320-5760pcs	43200-57600pcs	12960000-17280000pcs
Standard brick	240*115*53	52pcs	15-17s	11011-12480pcs	110100-124800pcs	33033000-37440000pcs
