Ceramic Fiber Module

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shape:	Ceramic Fiber Mat
Manufacturing Technique:	Spray Silk Rug
Kind:	High Purity Ceramic Fiber

Product Description

1000--1600 ceramic fiber module

Introduction

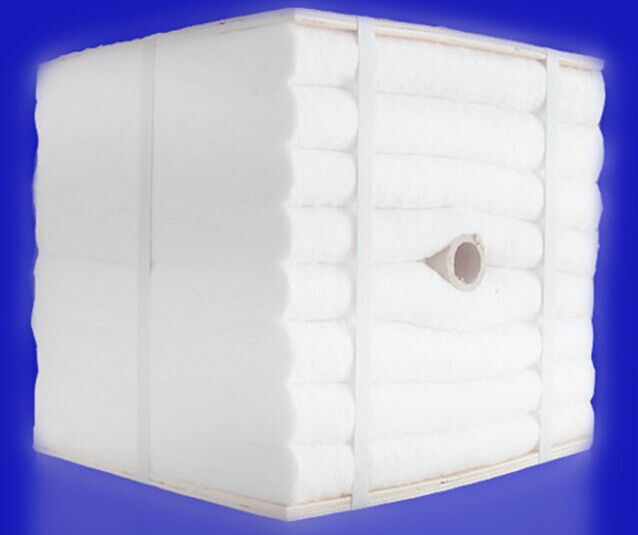

Ceramic Fiber Module are designed and engineered to apply on many types of kilns and heat process equipment. Each modules is a continues folded inorganic spun blanket under compression.
It's prevent heat loss,increasing the furnace productivity and reducing maintenance costs. Installation is quickly and easily completed by contractors or plant personnel who have received basic training.
Product Data

Model	1000 MODULE	1260MODULE	1400MODULE	1500MODULE	1600MODULE
Temperature(ºC)	1000	1260	1400	1500	1600
Color	White	White	White	Green	White
Density(kg/m3)	96/128/160	96/128/160	96/128/160	128	128
Fiber Diameter (um)	2.6	2.6	2.8	2.65	3.1
Fiber Density ( kg/m3)	2600	2600	2800	2650	3100
Shot (  212um <) (%)	10	10	10	10	1
Thermal Conductive Kcal/mhºC(W/mK) ,ASTM C201, 190kg/m
400ºC	0.09	0.07	~	~	~
600ºC	0.15	0.12	0.13	0.13	0.06
800ºC	0.22	0.16	0.2	0.19	0.1
1000ºC	~	~	0.29	0.26	0.14
Chemical Composition :
Al2O3(%)	42--44	45--47	34--36	39--41	72
SiO2(%)	56	52--54	49.6	57--58	28
ZrO2(%)	~	~	14--17	~	~
CrO3(%)	~	~	~	1.8	~
Fe2O3(%)	0-2	0-1	0-1	0-1	~
Shrinkage(Less than 200ºC*8H)	2%	2%	2%	2%	1%

Standard Dimension &Package

Size(MM)			Package
Thickness	Width	Length	Carton
			PCS/Carton	Carton Size(MM)
150	300	300	96	1020*1220*1220
200			80
300			48
Special size are available for specific needs


Characteristics
Fast installations
Efficient attachment design
Gap-free lining
Low heat storage and fuel costs
Requires less maintenance
Several anchor system
Thermal shock resistance
Excellent thermal stability
Fast thermal cycling (heat up and cool down)
Applications
Shuttle kilns
Ethylene Furnaces
Convection Boxes
Reformers
Reheat Furnaces
Steel soaking Pit covers
Ladle Preheat covers
Forge Furnaces
Incinerators
