Product Specifications
| Prod Model: |
CES 2P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Installation: |
Fixed |
| Arc-extinguishing Medium: |
Air |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Conventional Circuit Breaker |
| Operation: |
Electromagnetic |
Product Description

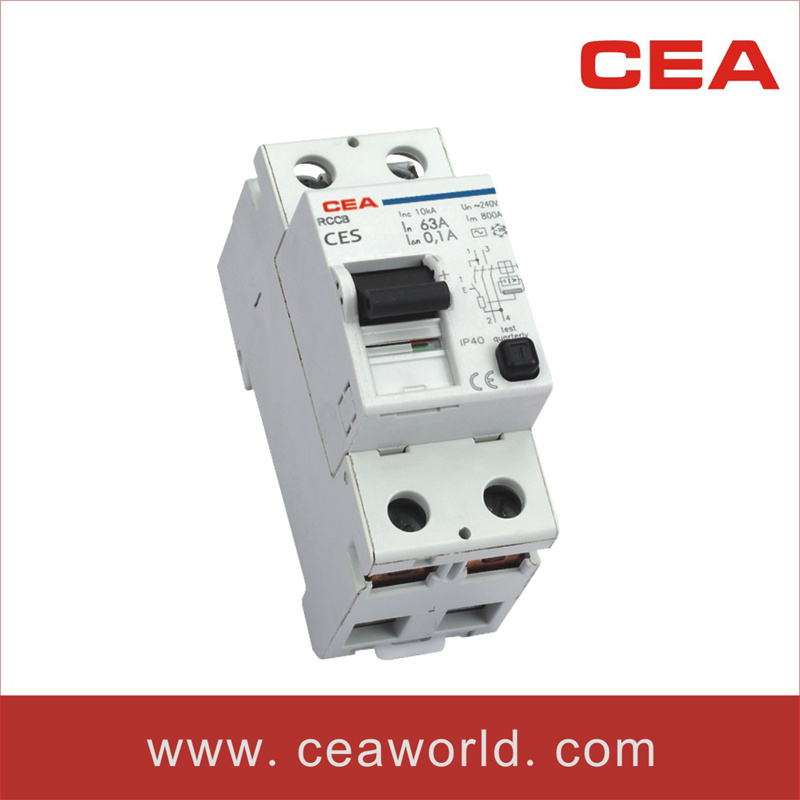

CES 2P series Residual current breaker (without over-current protection)
APPLICATION
DFS series Residual current breaker (without over-current protection) is suitable
For the line of AC 50/60Hz, voltage 240V(2pole)/415V(4pole), rated current up to 63A.
When there is human electricity shock or if the leakage current of the line
Exceeds the prescribed value, it will cut off the power rapidly to protect human
Safety and prevent the accident due to the current leakage. It can be used as
Infrequent changeover of the line in normal situation. It is applicable to industrial
Site, commercial site, tall building and civil house.
It complies with standard of IEC/EN61008.1 and GB16916.1
SPECIFICATION:
| Frame class | 63A |
| Rated working voltage | 240/415V |
| Rated frequency | 50/60Hz |
| Rated working current | 16, 25, 40, 63A |
| Rated residual operating current | 0.03, 0.1, 0.3, 0.5A |
| Rated residual un-operating current | 0.015, 0.05, 0.15, 0.25A |
| Sensibility | A & AC Type |
| Maximum operating time | IΔ n t≤ 0.1s, 5IΔ n t≤ 0.04s |
| Rated making and breaking capacity | In≤ 50A 500A, In≤ 63A 630A |
| Limiting value of un-operating current | 6In |
| Rated limiting short-circuit current | 6000A |
| Pole number | 2P, 4P |
| Mechanical life | 10000 |
| Electric life | 4000 |
![]()
![]()
![]()
![]()
