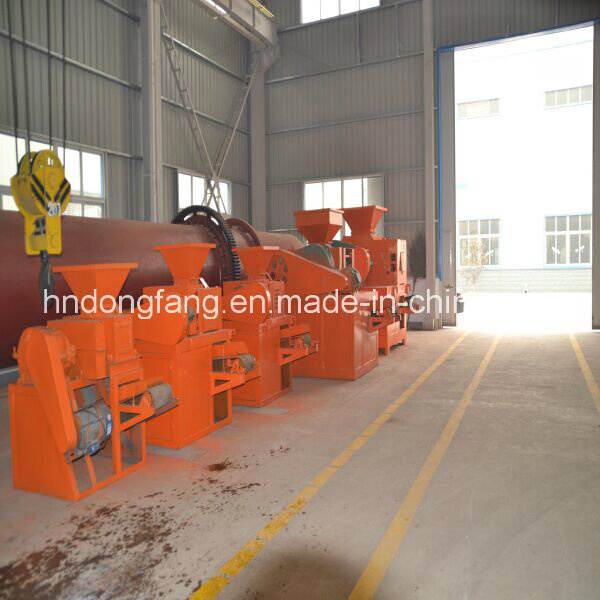

Charcoal Powder Making Machinery for Ball Making

Product Specifications

Prod Model:	WLXM-650
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East
Name:	Briquette Coal Ball Press
Color:	Orange, Green/Blue/Green
Main Shaft Speed:	13r/Min
Speed Reducer:	Zq650
Roller Diameter:	650mm
Roll Material:	65mn
Principal Axis:	165mm
Main Shaft:	Forging
Roller Width:	336mm
Power:	20-30kw
Pressing Mode:	Twin-roller
Product Shape:	Square Shape
Motor Type:	AC Motor
Condition:	New

Product Description

              Charcoal powder making machinery of best price from China



Instruction :
Charcoal powder making machinery is suitable for civil and industrial coal production.
It features in excellent technical performance, compact structure, reasonable assembly
process, special alloy rollers, and long lifespan. This type of briquette presses can
apply high pressure and thus produce higher density briquettes. In addition, it also
solves the troubles of low molding pressure and low strength problem in coal
briquette production, and can be the ideal equipment for coal briquette production.

Raw materials :
Coal and charcoal powder, zinc oxide, lead oxide, calcium chloride, calcium phosphate.
High test bleaching powder, cryolite, chemical inhibitor, silica, Isophthalodinitrile etc.

Features :
The machine can press all kinds of mineral powder, metal powder, coal powder, coke
powder and other materials to make them molded. Because of the mandatory squeeze
rollers , so the products have the three high characteristics : high density ,high strength ,
high hardness, Because of the mandatory squeeze rollers, so the products have high
density, high strength, high hardness, and the local roll is used in 650Mn hard materials
with good wear resistance.

Working Principle :
This series of pressure machine will pass the power on to the two pressure roller through
the reducer. The two sides and roll rotation, in both the rotating roll, Natural materials to
enter the briquette roll mode, with the roll rotation, material pressure on a small become
larger, When the material to the two rollers rotating line contact point, the pressure of ma
terials has reached the peak. Tremendous pressure in the role of line, the materials become
a finished product from the powder briquette.

Technical Parameters :

Type	Roll diameter(mm)	Capacity(t/h)	Power(kw)
ZKBM290	290	1-3	5.5
ZKBM360	360	4-6	11-15
ZKBM430	430	6-8	18.5
ZKBM500	500	7-9	18.5-55
ZKBM500H	500	7-9	20.7-57.2
ZKBM650	650	10-15	37-45
ZKBM650H	650	10-15	39.2-47.2
ZKBM750	750	15-20	75-110
ZKBM750H	750	15-20	78-113
ZKBM850	850	20-25	90-110
ZKBM850H	850	20-25	93-113
ZKBM1000	1000	25-30	90-132
ZKBM1000H	1000	25-30	93-135
Remarks: Based on different materials, briquettes size, capacity, the technical parameter is adjustable.

Operation :
1. If your raw material is big block, you should choose a crusher.
2. If your raw material is with high moisture (higher than 12%), you should choose
a dryer. If you prefer to use dry powder type briquette machine, the moisture should
be less than 5%, also based on materials' performance.
3. Generally, it is better to add some binder/adhesive into the raw material. If you pre
fer to use dry powder type briquette machines, generally, no need binder.
4. About belt conveyor, you can buy from us, also can make by yourself. We would
like to supply the detail drawing of conveyor for you.
5. The final briquettes can be dried under the sun or through mesh belt dryer and chain
plate dryer.
