Cheap CNC Lathe CNC Machine Tools (CK6163B)

Product Specifications

Prod Model:	CK6163B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Cast Iron
Place Of Origin:	China
Processing Type:	Metal
X,Z Motor Type:	Servo Motor
Power Supply:	Three Phase 380V/50Hz
Warranty:	1 Year
Type:	Horizontal Lathe
Automatic Grade:	Automatic
Precision:	High Precision
Power Source:	Electric
Setting Mode:	Floor-type
Controlling Mode:	CNC
Processing Accessory:	Chuck CNC Lathe
Tool Holder:	Single-tool Holder CNC Lathe

Product Description

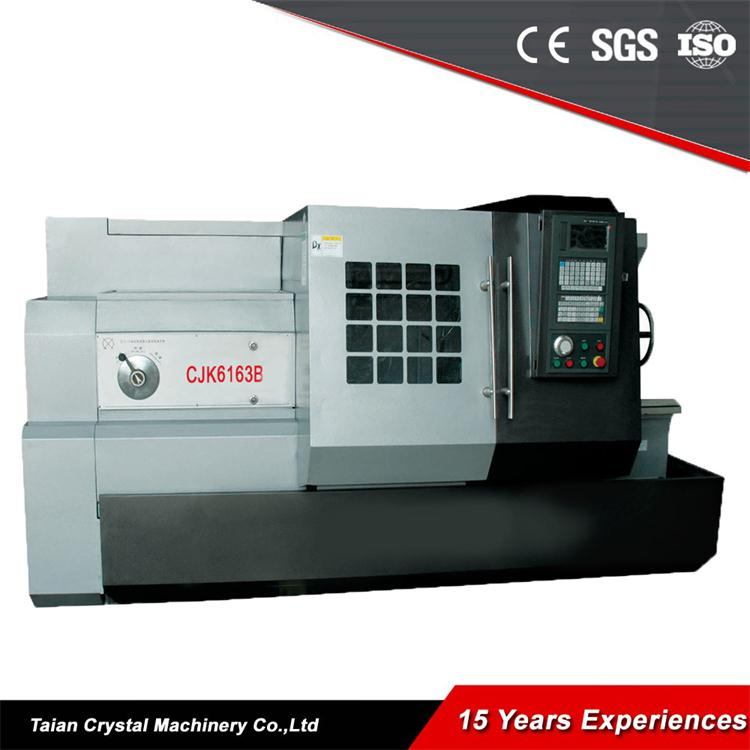

     CK6163B CNC Lathe Machine

Product Description
A. Characteristics
Horizontal lathe bed.
Extra large spindle bore: φ105.
Bed way is treated by super audio quenching.
Saddle of the bed and joint surface of the sliding guide rail are laminated by the plastic.
Feeding system is controlled by the servo drive.
Accurate ball screw combined with high precision composite bearing structure...
Ball screw and the joint surface of the sliding guide rail are auto forced lubrication.
The station of the turret can be chosen from vertical type 4 station, vertical 6 station and  horizontal 6 stations, and so on.
We can set up the manual operation, pneumatic, hydraulic chucks and tailstock.
The control systems include GSK, KND, SIMENS, FANUC and so on.
B. Specifications

items	names	data
specifications	Max. swim over bed(mm)	φ630
	Max. swim over carriage of slide plate(mm)	φ350
	Max. length of work piece (mm)	1000,1500,3000
Main drive	Type of main belt drive	Three gear speed change,  frequency variable speed change
	Spindle speed seris	variable
	Range of spindle speed(r/min)	25-850
	Structure of spindle nose	C11
	Spindle bore(mm)	φ105
	Front taper of spindle bore	metric120  1:20
	Motor power(KW)	11
Feeding system	Max distance of moving turret(mm)	X:500       Z:1200,1650,3100
	Moving speed of post(mm/min)	X:4000      Z:5000
	Resetting accuracy(mm)	X:0.01       Z:0.015
	Machining precision of work piece	IT6-IT7
	Surface roughness of work piece	Ra1.6
Tailstock device	Diameter of tailstock quill(mm)	φ100
	Max. range of tailstock quill(mm)	250
	Taper of tailstock quill	Mohs6#
Tool station device	Standard configuration	Vertical motor 4 station turret
	Chosen device	Horizontal motor 6 station turret
	Resetting accuracy(mm)	0.008
	Max. size of tool post(mm)	30×30
Size and weight	size(length×width×height)(mm)	3200/3700/5200×1820×1710
	Net weight(Kg)	3400,3700,5200



Why Choose US
Over 300 clients from more than 40 countries could tell you we are your realiable parter.
We are professional cnc machine factory,our price could beat any competitors in china market .
We supply professional solution to you based on your own process one by one.
We accept custom configuration such as  auto feed system,the 3rd axis,hydraulic chuck and tailstock and so on.
We supply one years Warranty for whole machine and 3 years warranty for cnc system and servo motor.
7*24 hours Email or phone service.
