Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

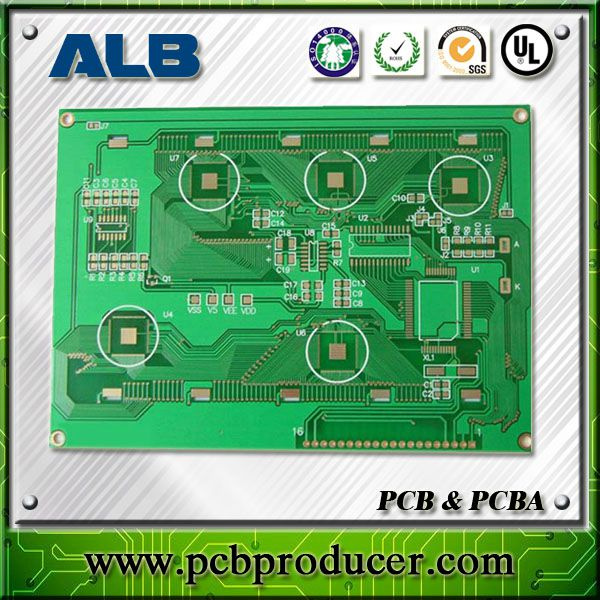

Custom Rigid Double Side Printed Circuit Board Manufacturing Process Capability:
Item
Manufacture Capability
Material
FR-4, CEM-3
Thickness
Min.
0.4mm
Max.
5.0mm
Tolerance
±0.08mm ~ ±0.2mm
Size
Min.
120mm×120mm
Max.
620mm×540mm
Tolerance
±0.15mm
Copper Thickness
Min.
35µm
Max.
240µm
Min. Line Width
0.10mm
Min. Line Spacing
0.10mm
Hole
Min.
0.2mm
Max.
6.0mm
Tolerance
±0.05mm
Tolerance of Hole Location
±0.075mm
Registration Precision
±0.10mm
Solder Resist Thickness
Min.
10µm
Legend&Marking Min. Width
0.2mm
Legend Color
Black, White, Blue, Green
Surface Finish
HASL(Hot Air Solder Leveling)
Lead Free HASL
ENIG(Electroless Nickel/Immersion Gold)
Immersion Silver
OSP(Organic Solderability Preservatives)
Thickness of Hot Air Leveling
Min.
2.0µm
Max.
76.2µm
Thickness of OSP
Min.
0.2µm
Max.
0.5µm
Thickness of ENIG
Ni
3µm ~ 5µm
Au
0.05µm ~ 0.1µm
Thickness of Immersion Silver
Min.
0.1µm
Max.
0.3µm
Out-Line Dimension Tolerance of The Board
±0.10mm
V-CUT Panel Size
Min.
50mm
Max.
450mm
Custom Rigid Double Side Printed Circuit Board Flow Chart:
Cut Lamination → Drilling → PTH → Panel Plating → Dry Film Lamination → Exposure → Developing → Pattern Plating → Stripping → Etching → Tin-Lead Stripping → Solder Mask → Exposure → Developing → Legend → UV Cure → HASL → Profile → E-test → Final Visual Inspection → Packing → Shipping
Custom Rigid Double Side Printed Circuit Board Material:
PCB Material FR-4 Fiberglass Fabric + Epoxy Resin + Copper Foil
FR-4 Features:
UVB and AOI(automatic optical inspection) compatible, so as to increase productivity and accuracy.
Excellent heat resistance and mechanical properties.
IPC-4101C/21 specification is applicable.
