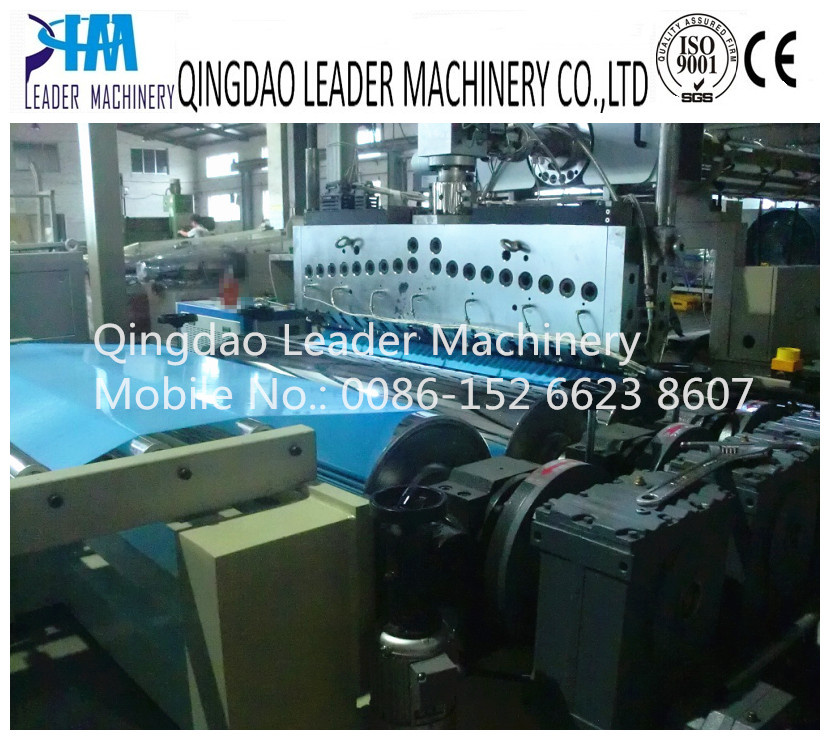

chemical foam machine pp foam sheet machine
PP micro foam board making machinery adopts T-type die head and three roller calendars technology to produce high smoothly and highly flat micro foam sheets. It is foamed by add some foaming additives, also called chemical foamed.
PART 1 SHEET APPLICATIONS:
This kind of foam sheets are widely used in the field of stationery, handbags, luggage, cosmetics, commodity, plastic containers for medicine, food, drink, alcohol, pesticides, engine oil, chemical industry and glass bottles sealing/gaskets etc.
PART 2 MAIN TECHNICAL DATA:
Machine model
Main data | LSJ-65/30 | LSJ-90/30 | LSJ-120/30 |
| Extruder model | SJ-65/30 | SJ-90/30 | SJ-120/30 |
| T-die head with | 750mm | 950mm | 1350mm |
| Three roller calendars | 360mm | 400mm | 450mm |
| Sheet width | 400mm-600mm | 600mm-800mm | 800-1200mm |
| Sheet thickness | 0.8-3mm | 0.8-3mm | 0.8-3mm |
| Sheet Density | 0.4-0.7g/cm3 | 0.4-0.7g/cm3 | 0.4-0.7g/cm3 |
| Main electrical parts | Siemens PLC controlled, ABB inverter, Omron thermocontroller, Schneider contactor |
| Installed power | 110kw | 150kw | 180kw |
| Dimension | 22m*2.5*2.7m | 25m*2.8m*2.8m | 28m*3m*3m |
PART 3 PRODUCTION FLOWS:
Vacuum feeding machine>single screw extruder>hydraulic exchanger>T-die head>three roller calendars>thermoforming machine>cooling frame and edge cutting units>2 rubber rollers haul off machine>cutter-guillotine or twin position winder>material conveying able>stacker
PART 4 CONTACT INFORMATION:
1. Name: Ms Lilly Zhou
3. Mob: 0086-152 6623 8607
Qingdao Leader Machinery Co., Ltd., is a specialized supplier and manufacturer of plastic pipe, sheet and profile extrusion lines and other accessary machineries, such as plastics pelletizing recycling lines, mixers, crushers, etc. We have a good market all over the world, because the quality of our machineries and warm after-sale service is guaranted.
We have supplied machineries to Middle East(UAE, KSA, Jordan, Egypt, Yemen, Iran, Oman), Middle Asia(Kazakhstan, Uzbekistan, KYRGYZSTAN, TURKUMENSTAN), East Europe(Russia, Ukraine, Latvia, LITVA, Estonia, Albania, Romania), Africa(South Africa, Kenya, Tanzania, ZIMBABWEE, Botswana, Libya), South and Middle America(GUATEMALLA, Mexico) and so on.
Choose our machineries, and let's earn the world. Awaiting for your inquiry sincerely.
Our products was certified by ISO9001-2008, CE, and GOST.
