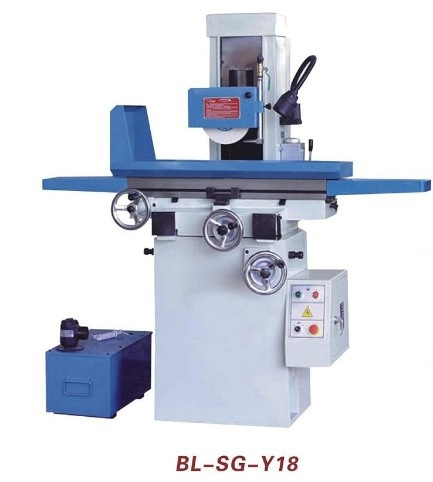

Manual Surface Grinder(BL-SG-Y18/20/25)(Economical)
Features:
Compact structure, easy for operation.
Spindle use P4 class precision bearings.
Guideway use rolling guideway, synchronous belt.
Standard Accessories:
Permanent-magnet chuck(on machine)
Grinding wheel(on machine)
Wheel flange(on machine)
Coolant system(on machine)
Working lamp(on machine)
Wheel dresser
Wheel balancing stand
Wheel balancing shaft
Leveling pads
Wash pipe
Diamond pen
Tool box
Regular wrenches
Optional accessories:
Electromagnetic chuck
DRO
Ball srew
Dust collector
Inverter
| Item | Unit | BL-SG-Y18 | BL-SG-Y20 | BL-SG-Y25 |
| Table size(L×W) | mm | 460×180 | 480×200 | 540×250 |
| Max travel of table(L×W) | mm | 500×190 | 530×220 | 560×260 |
| Max area to be ground(L×W) | mm | 500×190 | 520×220 | 540×250 |
| Table T slot(NO.×width) | / | 1×14 |
| Max distance from spindle center to table | mm | 335 | 450 | 450 |
| Wheel size(O.D.×W×I.D.) | mm | 180×13×31.75 | 200×20×31.75 | 200×20×31.75 |
| Wheel speed (50hz) | rpm | 2850 |
| Table transverse feed | Handwheel per circle | mm | 2.5 |
| Handwheel per scale | mm | 0.02 |
| Table vertical feed | Handwheel per circle | mm | 1.25 |
| Handwheel per scale | mm | 0.01 |
| Spindle motor | kw | 1.1 |
| Coolant motor | w | 40 |
| Parallelism from machining surface to base face | mm | 300:0.005 |
| Surface roughness | um | Ra0.32 |
| N.W. | kg | 650 | 700 | 850 |
| Overall size(L×W×H) | mm | 1550×1150×1590 | 1680×1140×1760 | 1680×1220×1720 |
