OCOM Technologies Limited >> China Handheld Android Industrial PDA (OCBS-D8000)

China Handheld Android Industrial PDA (OCBS-D8000)

Name: China Handheld Android Industrial PDA (OCBS-D8000)
Brand: china-manufacturer-directory.com
SKU: 772001065
Availability: InStock
Rating: 4.4 (99 reviews)

Supplier:	OCOM Technologies Limited
Price:	US $ 258-315/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	OCBS-D8000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation System:	Android4.1
Display:	Color 4.0 Inch Qvga Imitative Glass Durable Touch
CPU:	Dual-Core Arm Cortex-A9 Dual-Core 1.5g
RAM:	2g RAM
Flash ROM:	Standard 4G Nand Flash Storage Micro SD/TF Port (M
Input Mode:	Standard Stylus, Handwriting, Touching Input or Ke
Wi-Fi:	Support IEEE802.11b/G Protocol, It Need Effective
Battery Capacity:	Rechargeable Li-Polymer Battery 3.7V 4000mAh Optio
Key:	29PCS Soft Silicon Key
Industrial Grade:	IP67
Type:	Handheld Computer
OS:	Android
Applications:	Industrial Grade PDA
CPU Type:	Samsung
Internet Connection:	WI-FI
Classification:	Bar-code Scanner
Screen Size:	4.0 Inch
Memory Capacity:	2GB

Product Description

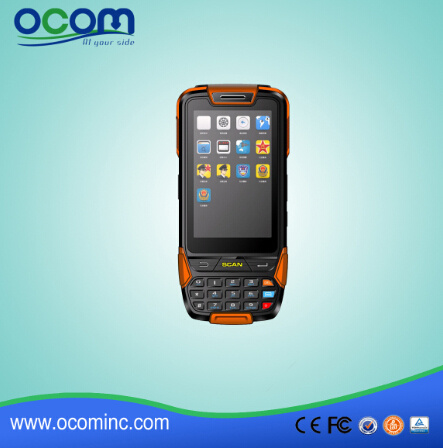

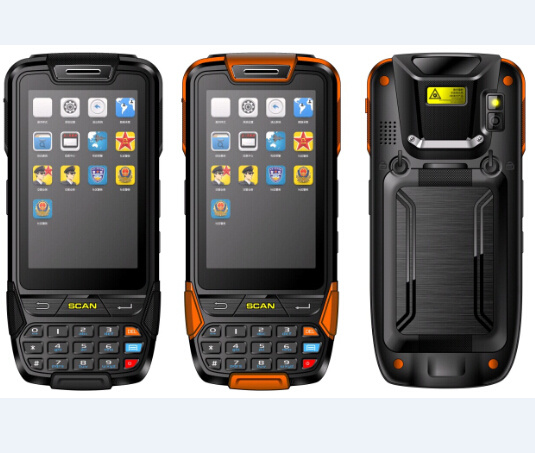

China handheld Android industrial PDA

(Model: OCBS-D8000)

More details can be found on: http://www.ocominc.com/products/2014-New-High-Quality-Android-Based-Industrial-PDA-D8000.html#.Vjc7WNqhc_4

Description:
The PDA is our newly published android industrial PDA, it's handheld and also widely known as data collector. The PDA is with multiple configuration for option, such as wifi, bluetooth, 1d/2d barcode scanner, 3G, GPS, camera etc.

FEATURE:

Android4.1 Operation System;
Dual-Core ARM Cortex-A9 Dual-core 1.5G;
WCDMA, CDMA2000 Option
A-GPS satellite positioning Option
Hd 3 million pixels, with LED, automatic focusing;
SIM card, PSAM card, Micro SD (TF) Card Expand Port;
Rechargeable Li-polymer Battery 3.7V 4000mAh Option;
Color 4.0 inch QVGA imitative glass durable touch screen.
Sealed Environment: IP67,
6 sides can bear impact from 1.5m drop to cement floor

Specification:

Physical Parameter
Size	152mm(L)×77mm(H)×29mm(W)
Weight	<500g
Display Screen	Color 4.0 inch QVGA imitative glass durable touch screen TFT-LCD, 650000 colors, 480*800 (QVGA size) The brightness of LED Backlight is adjustable
Expand Port	SIM card, PSAM card, Micro SD (TF) Card
Communication Interface	USB2.0 Device, RS-232(Optional)
Input Mode	Standard Stylus, Handwriting, touching input or keyboard input
Battery Capacity	Rechargeable Li-polymer Battery 3.7V 4000mAh Optional
Frequency	8Ω1W speaker
Key	29pcs soft silicon key
Performance Parameter
CPU	Dual-Core ARM Cortex-A9 Dual-core 1.5G
RAM	2G RAM
Flash ROM	Standard 4G NAND Flash Storage Micro SD/TF port (Max up to 32G)
Data Communication
WI-FI	Support IEEE802.11b/g protocol, it need effective wireless LAN signal cover
WCDMA	UMTS2100/900MHz UMTS1900/850MHz GSM850/900/1800/1900MHz
CDMA2000	CDMA2000 1x,CDMA2000 EV-DO Rev 0,CDMA2000 EV-DO Rev A Supports BC0(800MHz band),BC1(1900MHz band)
Bluetooth	Support Bluetooth 2.0+EDR, transmission distance is 5-10m
Operating Environment
Operating Temperature	-20ºC to 50ºC
Storage Temperature	-25ºC to 70ºC
Environment Humidity	5%RH--95%RH(no condensation)
Drop Specifications	6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature
Roll Specifications	1000 times/0.5m, roll on 6 sides contact area
Sealed Environment	IP67
Development Environment
Operating System	Android4.1
SDK	exclusive use software development kit
Supported Language	JAVA
Development Tool	Eclipse
A one-dimensional bar code collect
One dimensional CCD scanners	Symbol SE655
Resolution	5Mil minimum width
Ambient Light	0ft.candles-10000ft.candles
Scanning Speed	50/sec
Scanning Angle	53º±3º
Support Bar Code Type	UPC/EAN, Bookland EAN, Code 128, Code39, Code 93,Code 11, Interleaved 2 of 5,Discrete 2 of 5, Chinese 2 of5, Matrix 2 of 5,Inverse 1D, MSI, Gs1 DataBar, etc.
One dimensional laser scanner	Symbol SE955
Resolution	4Mil minimum width
Ambient Light	10000ft.candles(107640 lux)
Scanning Speed	104(±)12/sec (bothway)
Scanning Angle	47º±35º(Standard) / 35º±3º(narrow angle)
Support Bar Code Type	UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS
Two-dimensional bar code acquisition
CMOS Scanner	Symbol SE4500
The Sensor Resolution	752(level)×480(vertical)pels(gray level)
Ambient Light	All dark 9000ft.candles/96900 lux
Focus element (VLD)	655nm ± 10nm
Support bar code type	PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3
RFID
LF	125K/134K;ISO11784/ISO11785 protocol
HF	13.56MHz;ISO14443A/B protocol
Camera	Hd 3 million pixels, with LED, automatic focusing
GPS	Support A-GPS

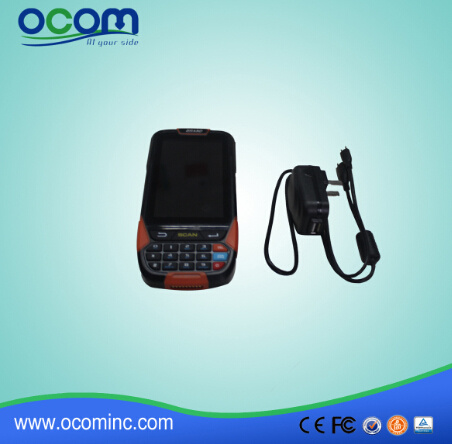

Power adaptor for option:
Europe, British, America, Australia, Asia etc.

Production capacity and lead time:
We have strong production capacity; we can produce thousand of printers and barcode scanners per day. Normally, our lead time between 1-5 days.

Shipping method:
Air, Sea, Express (DHL, FedEx, UPS, EMS, TNT and so on)

Warranty:
12+1 months of shipment normally. Some designated models can have as long as 24 months warranty. Spare parts can be provided for mass order.

Payment term:
T/T in advance, Western Union, PayPal, Escrow, L/C, Cash, etc
