OCOM Technologies Limited >> Wireless Mini Handheld Stocktaking Terminal

Wireless Mini Handheld Stocktaking Terminal

Name: Wireless Mini Handheld Stocktaking Terminal
Brand: china-manufacturer-directory.com
SKU: 772005535
Availability: InStock
Rating: 4.9 (143 reviews)

Supplier:	OCOM Technologies Limited
Price:	US $ 122-148/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	OCBS-D004
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Modulation:	Gfsk
Transmission Rate:	200kbps
Power:	10dBm
Resolution:	0.10mm(PCS0.9)
Transmission Distance:	Visual Straight Line Distance 300 Meters
Antenna:	Built-in Spring Antenna
Light Source:	650nm Laser
Scanner Type:	Bi-Directional
Scan Rate:	48±2 Scan/Second
Scan Distance:	10-520mm
Type:	Handheld Computer
Applications:	Handheld Computer Equipment
CPU Type:	ARM
Internet Connection:	WI-FI
Classification:	Bar-code Scanner
Screen Size:	1.6 Inch
OS:	RAM Inventory Management System
Memory Capacity:	1m

Product Description

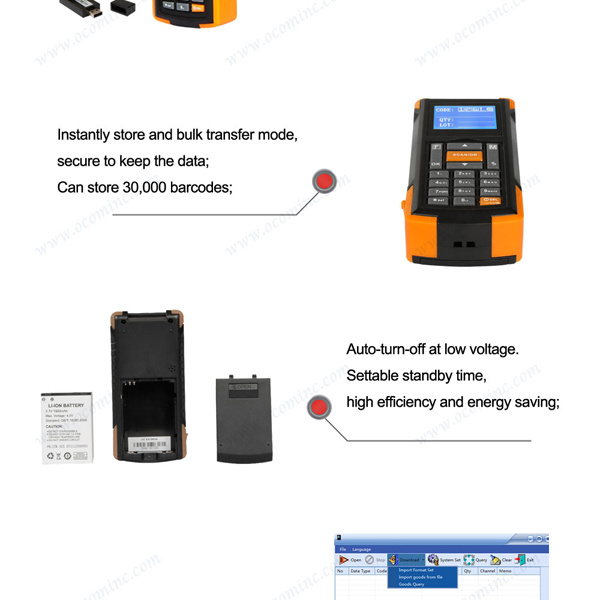

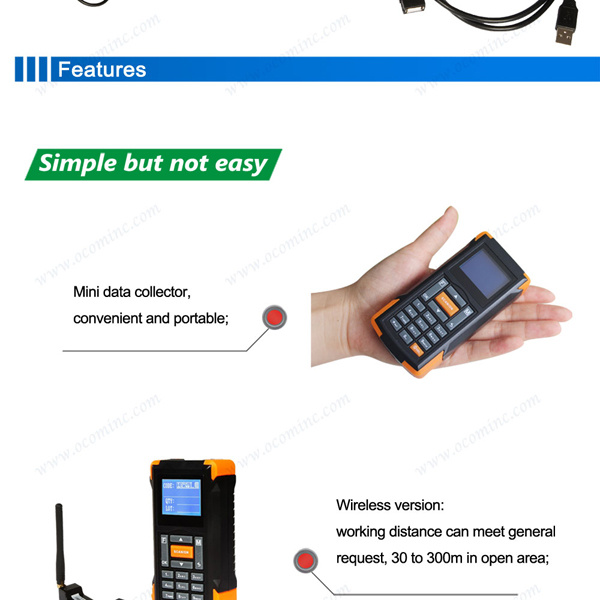

Wireless Mini Handheld Stocktaking Terminal

(Model: OCBS-D004)

Description:
The stocktaking terminal is one of our hot selling handheld terminals, the terminal is optional with USB and wireless version. we also call it data collector, it's widely used in warehouse management.

Specification:

Wireless Communications:
Modulation	GFSK
Transmission rate	200Kbps
Power	10dBm
Transmission Distance	Visual straight line distance 300 meters
Antenna	Built-in spring antenna
Performance Characteristics
Light Source	650nm laser
Supported barcodes	EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI etc
Scanner Type:	Bi-directional
Scan rate	48±2 scan/second
Scan distance	10-520mm
Scan width	20mm@window,220mm@200mm
Resolution	0.10mm(pcs0.9)
Depth of Field	0~250mm(0.33mm,PCS 90%)
Working Way	Triggered or automatic (continuous mode) scanning
Physical Characteristics
Memory:	1M (Can store 30,000 barcodes)
Interfaces:	Standard configuration mini USB receiver; RS232 and PS2 optional
Current:	96mA (working) 46mA(standby)
Battery:	Built-in rechargeable lithium ion battery (3.7V, 1900mAh)
Material	ABS+PC
Dimension:	102mmX46mmX28mm (Data Collector) 52mmX20mmX10mm (Receiver)
Weight:	130g (with battery)
User Environment
Operation Temperature	-20 Degree C~45 Degree C
Storage Temperature	-20 Degree C~60 Degree C
Humidity:	5~95% relative humidity, non-condensing
Safe
EMI/RFI:	CE & FCC DOC compliance
Safety Standard	The second national laser safety standards
Ordering Information

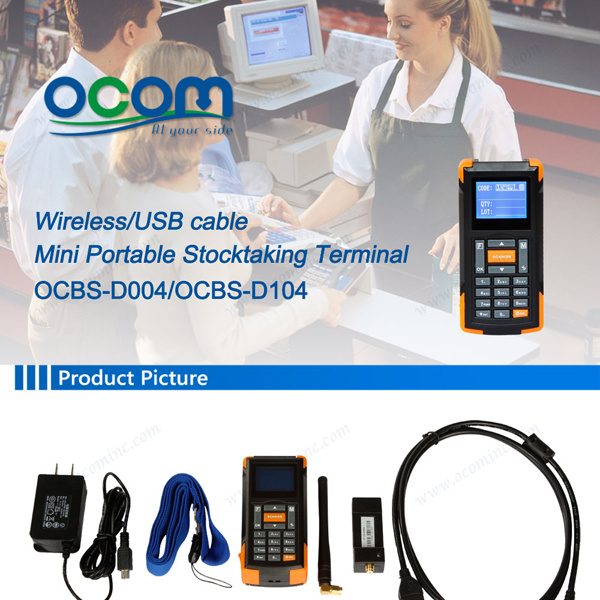

OCBS-D004	433MHZ Wireless Mini Portable Stocktaking Terminal
OCBS-D104	USB Cable Mini Portable Stocktaking Terminal

OCOM is a leading One-stop POS and Auto-ID Related Products Supplier which is qualified by Global Fortune 500 company. We have Top 1 level Trade Assurance guarantee.

OCOM's products portfolio covers Thermal Printer, Barcode Printer, DOT Matrix Printer, Barcode Scanner, Data Collector, POS Machine and other POS Peripherals products, which are widely used for retailing, restaurant, bank, lottery, transportation, logistics, and other applications. We have CE, FCC and other required certifications.

Since established in June 2007, OCOM have been sticking to the quality system of ISO9001: 2008. We focuses on reliable products quality and competitive price. We were serving more than 1300 customers over 133 countries, 40 of them are the biggest distributors in their territory. The main market in Europe, Australia, and fast growing South America and Africa. The customer list including famous Unilever, O2, Equicom...

OCOM's mission is to be the compelling choice for our partners, based on our three basic belief "Integrity based, Strive for excellence, Win-win cooperation", we would like establish stable and reliable partnerships with customers all over the world. OEM/ODM is welcome.

Together we quest for the best.
