Price: | US $ 172-208/Piece |
---|---|
Trade Terms: | FOB,EXW |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Prod Model: | OCBS-D6000 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Operation System: | Windows CE 5.0 |
Display: | TFT-LED Qvga 2.8 Inch LCD Color Touch Screen, Reso |
Keyboard: | 27 Keys |
Battery: | 3.7V 2600mAh |
Expand Port: | Support Micro SD/TF Card up to 16GB |
Industrial Grade: | IP65 |
Dimensions: | 169(L)×60(W)×31(H) mm |
Weight: | 320g (Include Battery) |
Operate Temperature: | -15~+50 Degree C |
Store Temperature: | -20~+60 Degree C |
Type: | Handheld Computer |
OS: | Windows |
Memory Capacity: | 256MB |
Applications: | Industrial Grade PDA |
CPU Type: | Samsung |
Internet Connection: | WI-FI |
Classification: | Bar-code Scanner |
Screen Size: | 2.8inch |

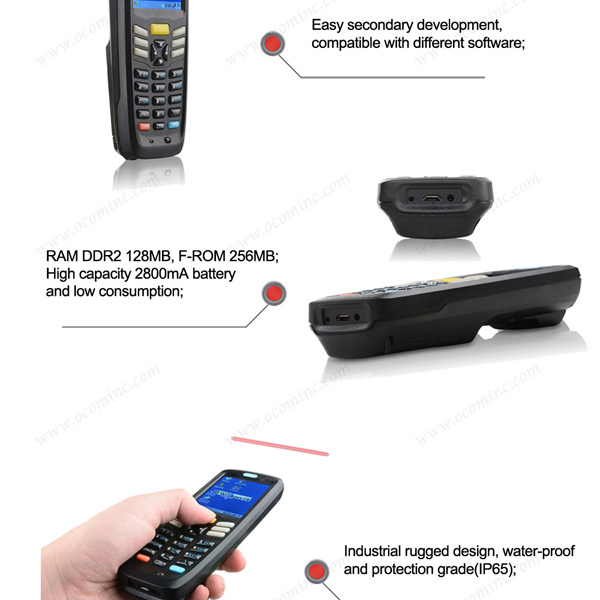

Handheld Win CE based industrial PDA
(Model: OCBS-D6000)
Description:
The PDA is our hot selling win CE based industrial PDA, it's handheld and also widely known as data collector. The PDA is with multiple configuration for option, such as wifi, bluetooth, 1d/2d barcode scanner, GPRS, RFID etc.
Specification:
Operation system | Windows CE 5.0,SDK for multiple programming languages including C#, VB.net, VC++ to assist system developer | ||
CPU | SAMSUNG S3C2451 533MHZ | ||
Memory | RAM DDR2 128MB, F-ROM 256MB | ||
Display | TFT-LED QVGA 2.8 inch LCD color touch screen, resolution 240*320 | ||
Keyboard | 27 keys | ||
Communication | Wi-Fi (default) | Built in 802 11b/g wireless communication function, rate: 54MB/Sec, can meet CISCO CCX2,3 security standard | |
GPRS(Optional) | Support GSM/GPRS 10,GSM27,10 | ||
Data collection (3 options) | 1D barcode scanner | Laser Barcode scanner, Scan Rate: 100 scan/sec Code: UPC-A; UPC-E; UPC-E1; EAN-8; EAN-13; Book land EAN; Code 128; UCC/EAN-128; Code 39; Trioptic Code 39; Code 39 Full ASCII; Code 93; Code 11; Interleaved 2 of 5; Discrete 2 of 5; Coda bar; MSI; GS1 Data Bar 14; GS1 Data Bar Limited; GS1 Data Bar Expanded; | |
2D Barcode Scanner | 1D barcode: UPC-A; UPC-E; UPC-E1; EAN-8; EAN-13; Book land EAN; Code 128; UCC/EAN-128; Code 39; Trioptic Code 39; Code 39 Full ASCII; Code 93; Code 11; Interleaved 2 of 5; Discrete 2 of 5; Coda bar; MSI; GS1 Data Bar 14; GS1 Data Bar Limited; GS1 Data Bar Expanded; 2D barcode: PDF417,microPDF417 ,Maxi Code, Maxi Code, Data Matrix, Composite Codes & QR Code, | ||
RFID | 13.56MHZ, support ISO15693, ISO14443A/B agreement | ||
Power | Battery | 3.7V 2600MAH | |
Standby time | 120 hours | ||
Working time | 8 hours | ||
Expand port | Support Micro SD/TF card up to 16GB | ||
Industrial grade | IP65 | ||
Dimensions | 169(l)×60(W)×31(H) mm | ||
Weight | 320g (include battery) | ||
Working environment | Operate temperature | -15~+50 Degree C | |
Store temperature | -20~+60 Degree C | ||
Operate humidity | 5-95% | ||
Store humidity | 5-95% | ||
Height of Anti-seismic | 1.2m cement floor |
