China High Quality Auto Range Mini Digital Multimeters

Name: China High Quality Auto Range Mini Digital Multimeters
Brand: china-manufacturer-directory.com
SKU: 704824992
Availability: InStock
Rating: 4.3 (126 reviews)

Price:	US $ 136/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

China High Quality Auto Range Mini Digital Multimeters

I. Product Description of China High Quality Auto Range Mini Digital Multimeters

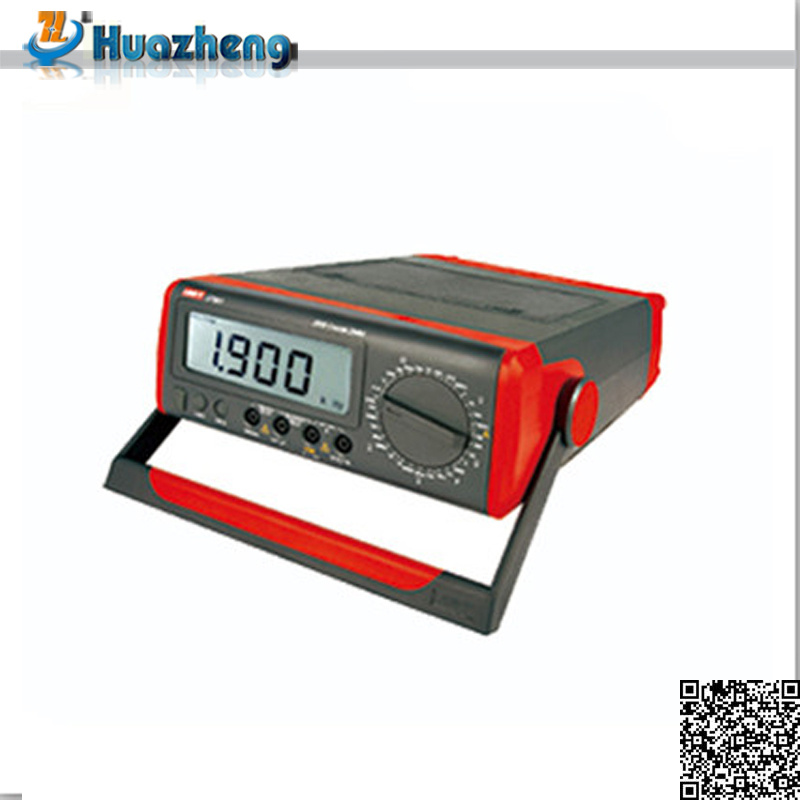

UT805A is a 200000 count digital bench-type multimeter designed with large-scale integrated analog/digital circuit, micro-processing technology, 24-bit A/D converter, operational amplifier, and True RMS display. UT805A is digitally calibrated to ensure high accuracy and reliability. It's capable to test DC/AC Voltage, current, resistance, diode, circuit continuity, capacitance, and frequency; the memory recall function makes all your tasks easier.

UT805A has RS232C and USB port for easy connection with computer to realize macro recording and monitoring of transient dynamic data.

UT805A complies with IEC61010 standard, CATI 1000V, CATII 600V.

II. Parameter of China High Quality Auto Range Mini Digital Multimeters

Specifications	Range	Best Accuracy
Model		UT805A
DC Voltage (V)	200mV/2V/20V/200V/1000V	±(0.015%+3)
AC Voltage (V)	200mV/2V/20V/200V/750V	±(0.2%+100)
DC Current (A)	2mA/200mA/10A	±(0.03%+10)
AC Current (A)	2mA/200mA/10A	±(0.3%+100)
Resistance (Ω)	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ	±(0.02%+6)
Capacitance (F)	6nF/60nF/600nF/6μF/60μF/600μF/6mF	±(2%+5)
Frequency (Hz)	10Hz~60MHz	±(0.1%+3)
Features
Display Count		200000
Auto Range		√
True RMS		√
Bandwidth (Hz)	100kHz	√
Diode		√
Continuity Buzzer		√
Data Hold		√
Relative Mode		√
MAX/MIN		√
Data Logging		100
Data Recall		√
RS-232		√
USB Interface		√
LCD Backlight		√
Dot-matrix Liqid Crystal Display	256×64 Pixels	√
Setup		√
Input Protection		√
Input Impedance for DCV	2V Range: Around 10GΩ, All Other Ranges: Around 10MΩ	√
Voltage &Current:AC+DC Measurement		√
General Characteristic
Power	AC 220V/50Hz
LCD Size	128mm × 28mm
Product Color	Red and Grey
Product Net Weight	3.2 Kg
Product Size	300mm × 245mm × 105mm
Standard Accessories	Test Lead, AC 220V Power Cord, RS-232 Interface Cable, USB Interface Cable, PC Software CD, Alligator Clip, Multi-Purpose Socket, Test line
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	4 PCs
Standard Carton Measurement	685mm×450mm×315mm (0.097 CBM Per Standard Carton)
Standard Carton Gross Weight	19.2 Kg

III. Company Information

HuaZheng Electric Manufacturing (Baoding) Co., Ltd is the supplier of the State Grid in China. It means we are the supplier of the Chinese Government. And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malaysia, Vietnam and so on.

Our main products are Digital Multimeter, Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.

IV. Our Services

1. 24 hours hot line.
2. We supply OEM service.
3. Our engineers available to service machinery overseas.
4. We can produce the products as your request.
5. To produce high quality products, services to the public.
6. To act quickly, seize the opportunity, continuous innovation, the pursuit of excellence.

VI. FAQ

1. Q: Are you a factory or trading company?
A: We are a factory.

2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Baoding city, Hebei province, China.
You can go to Baoding by train directly.
All our clients, from home or abroad, are warmly welcome to visit us!

3. Q: How can I get some samples?
A: We are honored to offer you samples.

4. Q: How does your factory do regarding quality control?
A:Quality is priority.we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained BV, CE,ISO, SGS authentication.

5. Q: May I send deposit by Paypal?
A: yes, for the small amount, we accept paypal.

6. Q: May I know your payment term?
A: Mostly, we work with: FOB / CNF / CIF or EX-WORK.
100% by T/T before delivery. Small amount by T/T or Western Union or Paypal are acceptable.

7. Q: May I know your delivery term?
A: Depending on your quantity, for goods we have in stock, Delivery takes 2 days to comply with your request.
For Regular order, delivery takes between 20-30 days.

Prod Model:	UT805A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Ut805A
Power:	AC 220V/50Hz
LCD Size:	128mm × 28mm
Product Colour:	Red and Grey
Product Net Weight:	3.2 Kg
Product Size:	300mm × 245mm × 105mm
Standard Individual Packing:	Gift Box, English Manual
Standard Quantity Per Carton:	4 PCS
Standard Carton Measurement:	685mm×450mm×315mm
Item:	Ut805A Digital Multimeter
Installation:	Portable
Display Mode:	Digital
Theory:	Electronic Meter
Power Source:	AC and DC
